MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

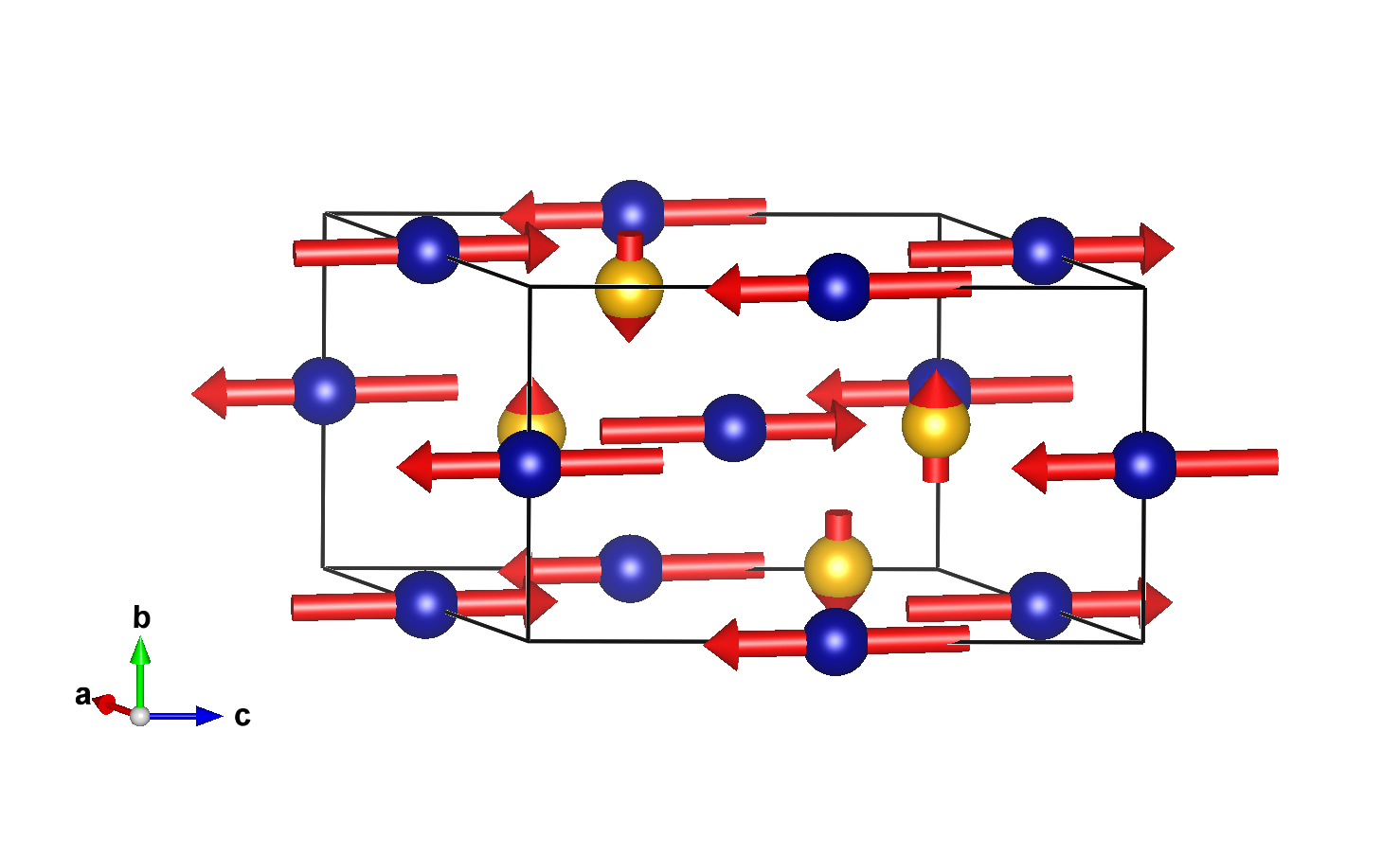

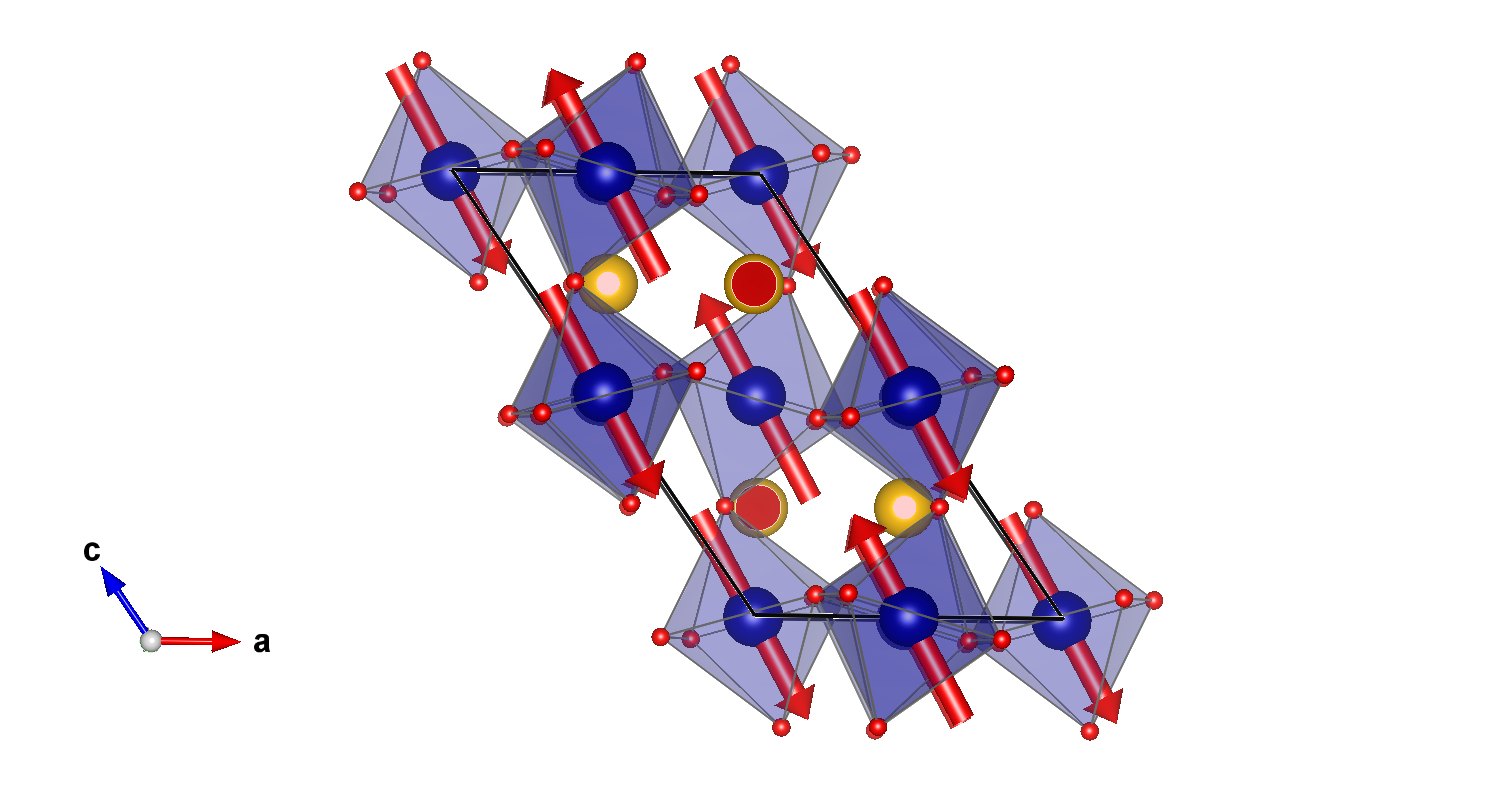

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Gd_1	Gd	0.26500	-0.05879	0.25000	4	M_x,M_y,M_z	0.0	-0.53(4)	0.0	0.53
Cr_1	Cr	0.50000	0.00000	0.00000	2	M_x,M_y,M_z	0.309(13)	0.0	2.51(4)	2.35
Cr_2	Cr	0.00000	0.00000	0.50000	2	M_x,M_y,M_z	-0.309(13)	0.0	-2.51(4)	2.35

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
O1_1	O	0.15440	0.52610	0.25000	4
O2_1	O	0.35080	0.70200	0.04990	4
O2_2	O	0.24900	0.29800	0.54990	4

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.26500	0.94121	0.25000	m_x,m_y,m_z	-0.53000
2	0.73500	0.05879	0.75000	m_x,m_y,m_z	-0.53000
3	0.73500	0.44121	0.25000	m_x,-m_y,m_z	0.53000
4	0.26500	0.55879	0.75000	m_x,-m_y,m_z	0.53000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50000	0.00000	0.00000	m_x,m_y,m_z	0.30900	0.00000	2.51000
2	0.50000	0.50000	0.50000	m_x,-m_y,m_z	0.30900	0.00000	2.51000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	m_x,m_y,m_z	-0.30900	0.00000	-2.51000
2	0.00000	0.50000	0.00000	m_x,-m_y,m_z	-0.30900	0.00000	-2.51000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Gd_1	Gd	0.26500	-0.05879	0.25000	4	M_x,M_y,M_z	0.0	-0.53(4)	0.0	0.53
Cr_1	Cr	0.50000	0.00000	0.00000	2	M_x,M_y,M_z	0.309(13)	0.0	2.51(4)	2.35
Cr_2	Cr	0.00000	0.00000	0.50000	2	M_x,M_y,M_z	-0.309(13)	0.0	-2.51(4)	2.35

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.26500	0.94121	0.25000	m_x,m_y,m_z	-0.53000
2	0.73500	0.05879	0.75000	m_x,m_y,m_z	-0.53000
3	0.73500	0.44121	0.25000	m_x,-m_y,m_z	0.53000
4	0.26500	0.55879	0.75000	m_x,-m_y,m_z	0.53000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50000	0.00000	0.00000	m_x,m_y,m_z	0.30900	0.00000	2.51000
2	0.50000	0.50000	0.50000	m_x,-m_y,m_z	0.30900	0.00000	2.51000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	m_x,m_y,m_z	-0.30900	0.00000	-2.51000
2	0.00000	0.50000	0.00000	m_x,-m_y,m_z	-0.30900	0.00000	-2.51000

MAGNDATA: A Collection of magnetic structures with portable cif-type files
