Ho2BaCuO5 (#2.85)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

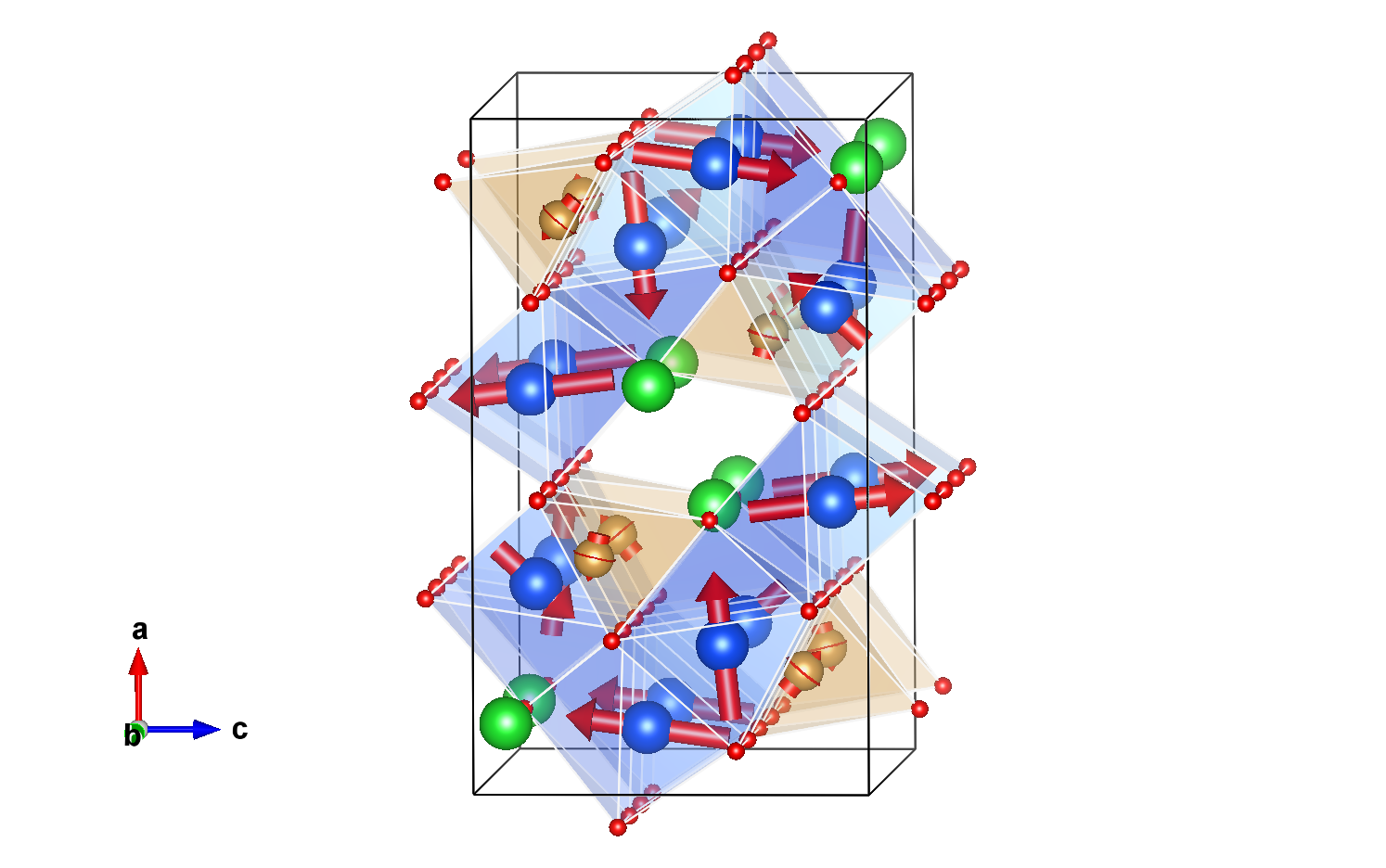

Magnetic structure with all atoms

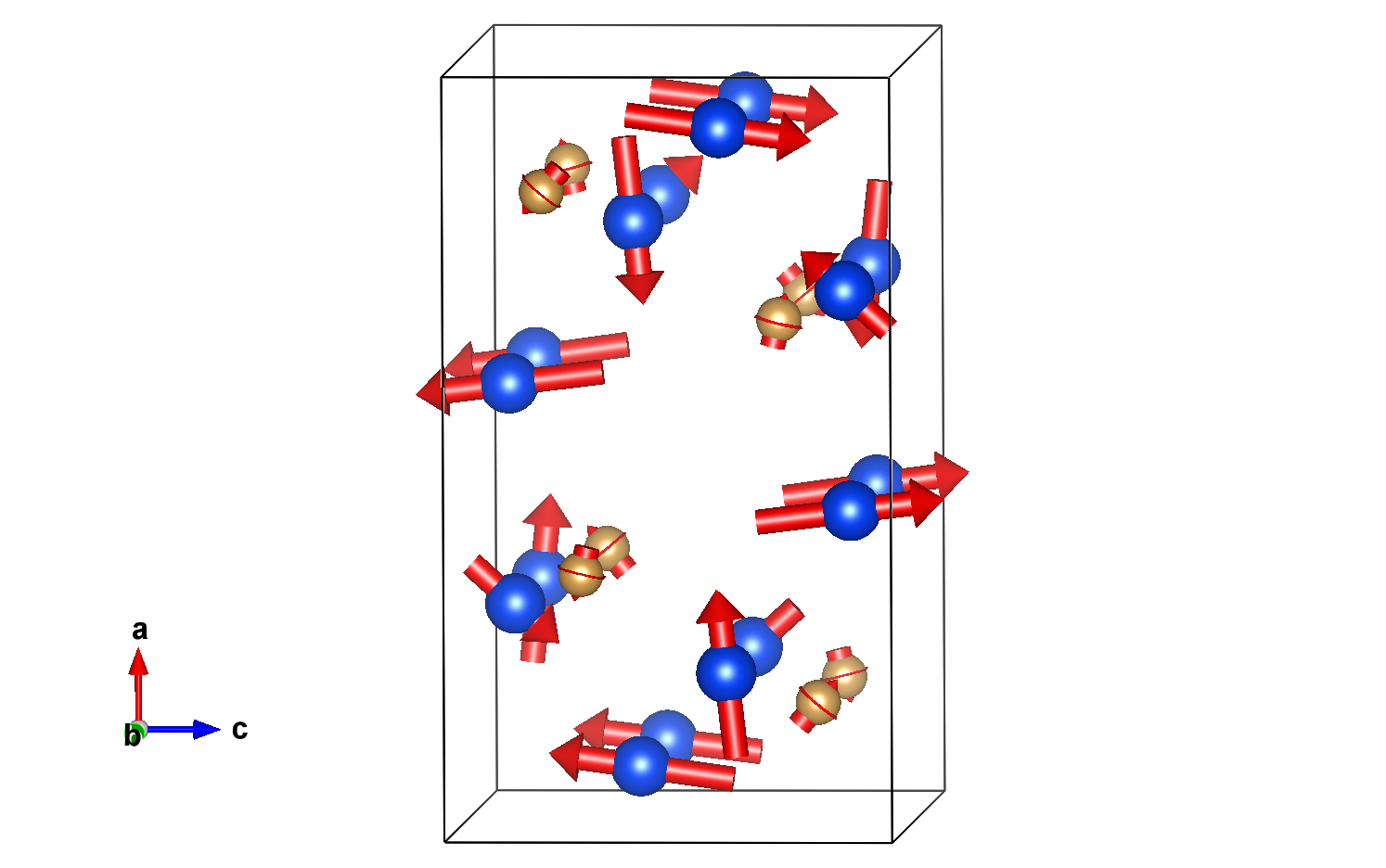

Magnetic structure with only magnetic atoms


Reference: P. Yanda, F. Orlandi, P. Manuel, N. Boudjada, J. Rodriguez-Carvajal, A. Sundaresan, PHYSICAL REVIEW B (2021) 104 144401
DOI: 10.1103/PhysRevB.104.144401
Atomic positions from: same reference

Parent space group (paramagnetic phase): Pnma (#62)
Propagation vector(s):
k1 (0, 1/2, 0)
k2 (0, 0, 0)

Transition Temperature: 8 K
Experiment Temperature: 2.3 K

Lattice parameters of the magnetic unit cell:
12.1776(3) 11.3235(3) 7.1228(2) 90.0000 90.0000 90.0000
Transformation from parent structure: (a,2b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: P21'/c (#14.77) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a,c,a-b;0,1/4,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 2'/m (5.3.14)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Ho1_1Ho0.2868(9)0.125000.1164(14)4mx,my,mz7.17(12)0.00.82(14)7.22
Ho1_2Ho0.2868(9)0.625000.1164(14)4mx,my,mz-2.59(12)0.02.86(14)3.86
Ho2_1Ho0.0745(5)0.125000.3957(10)4mx,my,mz1.05(12)0.0-8.46(17)8.52
Ho2_2Ho0.0745(5)0.625000.3957(10)4mx,my,mz1.17(12)0.0-8.32(17)8.40
Cu1_1Cu0.6581(13)0.125000.7077(16)4mx,my,mz-0.77(11)0.00.65(13)1.01
Cu1_2Cu0.6581(13)0.625000.7077(16)4mx,my,mz0.69(11)0.00.17(13)0.71

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. full irrepdim. small irrepdirectionactionnumber of modespresence
mY1 2 2 special primary 9
mGM4- 1 1 primary 6
mGM3- 1 1 secondary 3 No


Comments:
Comments (symmetry):
