MAGNDATA - Collection of Magnetic Structures

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,-y,z+1/2,+1	{ m₀₁₀ \| 0 0 1/2 }
(1/2,1/2,0)' + set click here to show and hide
3	x+1/2,y+1/2,z,-1	{ 1' \| 1/2 1/2 0 }
4	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,z,+1	m₀₁₀
1' + set click here to show and hide
3	x,y,z,-1	1'
4	x,-y,z,-1	m'₀₁₀

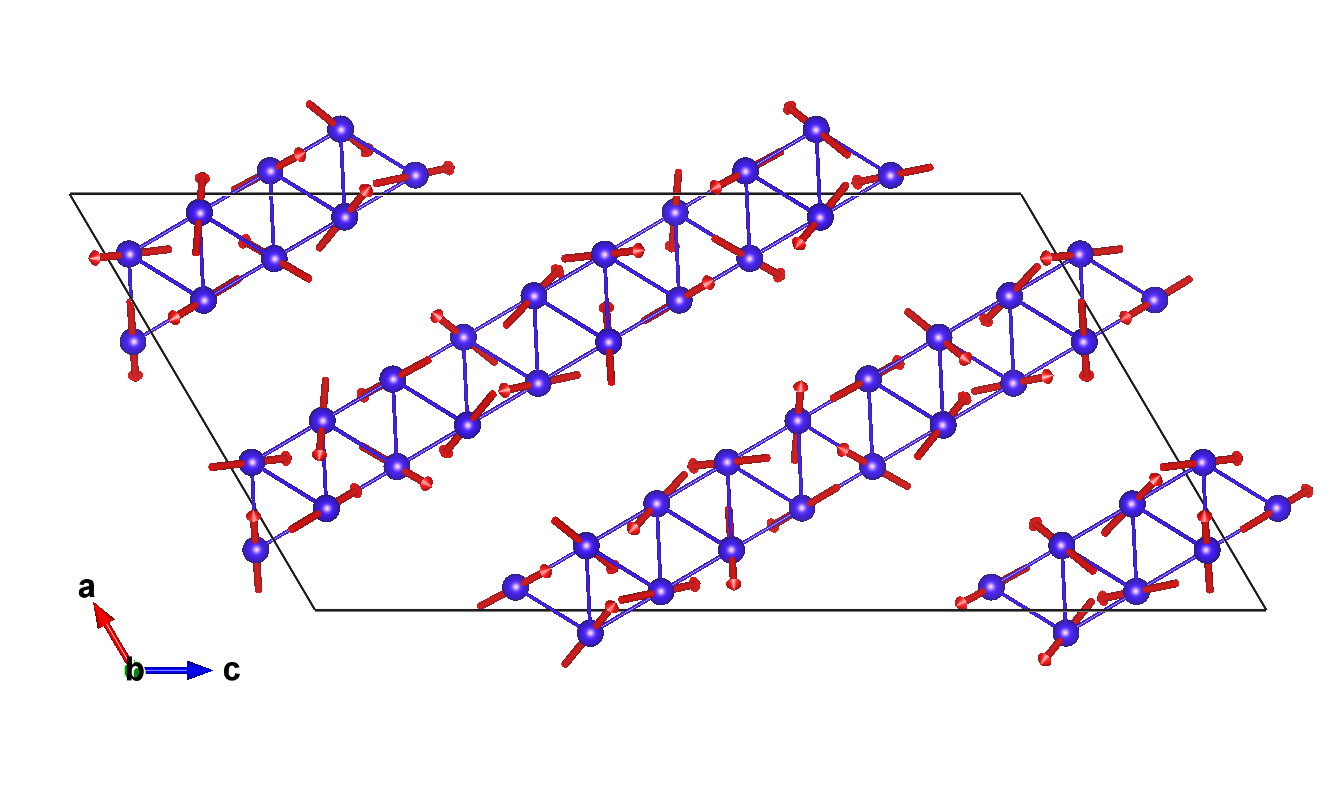

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.14478	0.75000	-0.02500	4	M_x,M_y,M_z	6.877	6.235	3.088	8.61
Dy2	Dy	0.04478	0.75000	0.87500	4	M_x,M_y,M_z	-1.397	-6.235	-6.524	8.61
Dy3	Dy	-0.05522	0.75000	0.77500	4	M_x,M_y,M_z	-5.358	6.235	-6.458	8.61
Dy4	Dy	0.84478	0.75000	0.67500	4	M_x,M_y,M_z	-3.434	-6.235	3.403	8.61
Dy5	Dy	0.74478	0.75000	0.57500	4	M_x,M_y,M_z	3.544	6.235	6.893	8.61
Dy6	Dy	0.25522	0.25000	-0.07500	4	M_x,M_y,M_z	4.989	6.235	6.632	8.61
Dy7	Dy	0.15522	0.25000	0.82500	4	M_x,M_y,M_z	4.331	-6.235	-2.419	8.61
Dy8	Dy	0.05522	0.25000	0.72500	4	M_x,M_y,M_z	-3.292	6.235	-6.89	8.61
Dy9	Dy	-0.04478	0.25000	0.62500	4	M_x,M_y,M_z	-6.869	-6.235	-3.989	8.61
Dy10	Dy	0.85522	0.25000	0.52500	4	M_x,M_y,M_z	0.788	6.235	6.299	8.61

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Te1	Te	-0.00036	0.75000	-0.07500	4
Te2	Te	-0.09964	0.75000	-0.02500	4
Te3	Te	0.89964	0.75000	0.82500	4
Te4	Te	0.80036	0.75000	0.87500	4
Te5	Te	0.79964	0.75000	0.72500	4
Te6	Te	0.70036	0.75000	0.77500	4
Te7	Te	0.69964	0.75000	0.62500	4
Te8	Te	0.60036	0.75000	0.67500	4
Te9	Te	0.59964	0.75000	0.52500	4
Te10	Te	0.50036	0.75000	0.57500	4
Te11	Te	0.26859	0.75000	-0.02500	4
Te12	Te	0.63141	0.75000	-0.07500	4
Te13	Te	0.16859	0.75000	0.87500	4
Te14	Te	0.53141	0.75000	0.82500	4
Te15	Te	0.06859	0.75000	0.77500	4
Te16	Te	0.43141	0.75000	0.72500	4
Te17	Te	-0.03141	0.75000	0.67500	4
Te18	Te	0.33141	0.75000	0.62500	4
Te19	Te	0.86859	0.75000	0.57500	4
Te20	Te	0.23141	0.75000	0.52500	4
Te21	Te	0.35031	0.75000	-0.07500	4
Te22	Te	0.54969	0.75000	-0.02500	4
Te23	Te	0.25031	0.75000	0.82500	4
Te24	Te	0.44969	0.75000	0.87500	4
Te25	Te	0.15031	0.75000	0.72500	4
Te26	Te	0.34969	0.75000	0.77500	4
Te27	Te	0.05031	0.75000	0.62500	4
Te28	Te	0.24969	0.75000	0.67500	4
Te29	Te	-0.04969	0.75000	0.52500	4
Te30	Te	0.14969	0.75000	0.57500	4

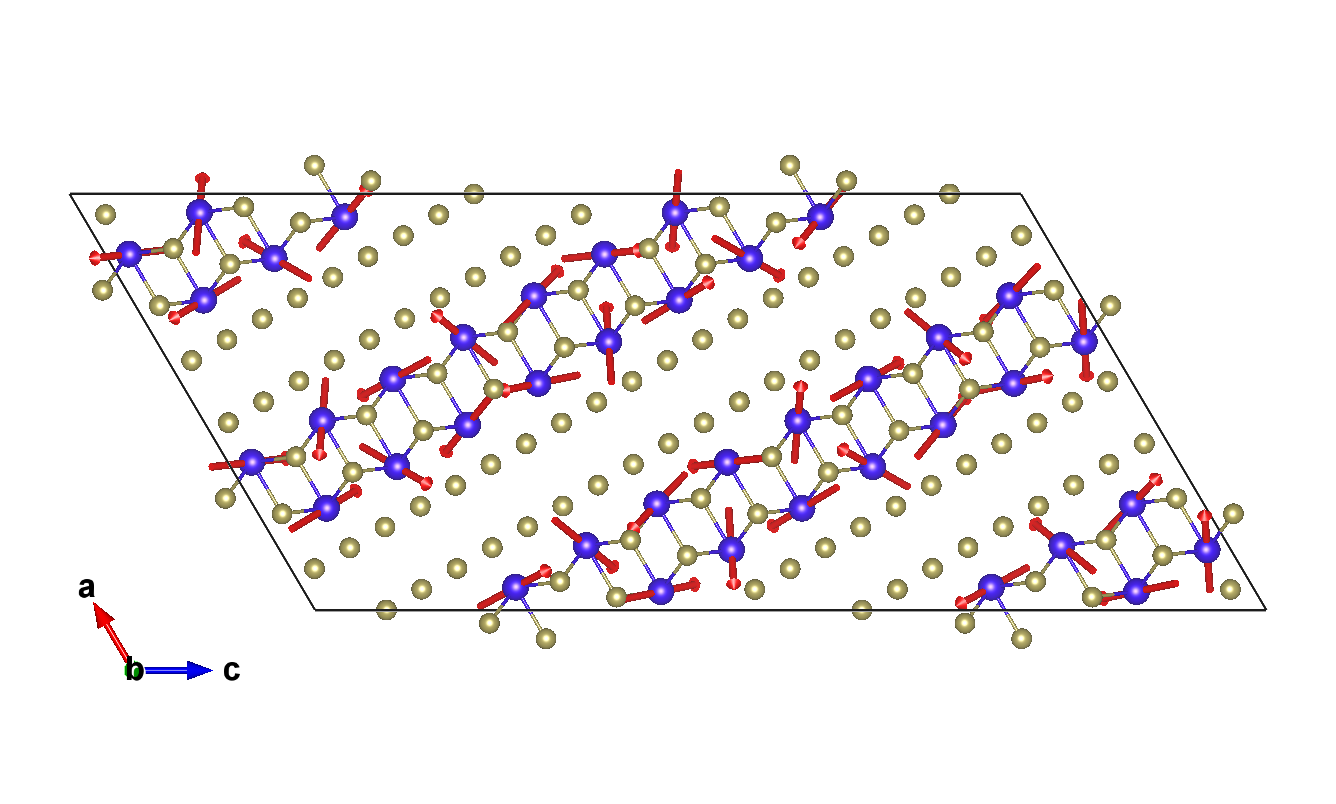

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.14478	0.75000	0.97500	m_x,m_y,m_z	6.87700	6.23500	3.08800
2	0.14478	0.25000	0.47500	-m_x,m_y,-m_z	-6.87700	6.23500	-3.08800
(1/2,1/2,0)' + set click here to show and hide
3	0.64478	0.25000	0.97500	-m_x,-m_y,-m_z	-6.87700	-6.23500	-3.08800
4	0.64478	0.75000	0.47500	m_x,-m_y,m_z	6.87700	-6.23500	3.08800

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.04478	0.75000	0.87500	m_x,m_y,m_z	-1.39700	-6.23500	-6.52400
2	0.04478	0.25000	0.37500	-m_x,m_y,-m_z	1.39700	-6.23500	6.52400
(1/2,1/2,0)' + set click here to show and hide
3	0.54478	0.25000	0.87500	-m_x,-m_y,-m_z	1.39700	6.23500	6.52400
4	0.54478	0.75000	0.37500	m_x,-m_y,m_z	-1.39700	6.23500	-6.52400

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.94478	0.75000	0.77500	m_x,m_y,m_z	-5.35800	6.23500	-6.45800
2	0.94478	0.25000	0.27500	-m_x,m_y,-m_z	5.35800	6.23500	6.45800
(1/2,1/2,0)' + set click here to show and hide
3	0.44478	0.25000	0.77500	-m_x,-m_y,-m_z	5.35800	-6.23500	6.45800
4	0.44478	0.75000	0.27500	m_x,-m_y,m_z	-5.35800	-6.23500	-6.45800

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy4:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.84478	0.75000	0.67500	m_x,m_y,m_z	-3.43400	-6.23500	3.40300
2	0.84478	0.25000	0.17500	-m_x,m_y,-m_z	3.43400	-6.23500	-3.40300
(1/2,1/2,0)' + set click here to show and hide
3	0.34478	0.25000	0.67500	-m_x,-m_y,-m_z	3.43400	6.23500	-3.40300
4	0.34478	0.75000	0.17500	m_x,-m_y,m_z	-3.43400	6.23500	3.40300

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy5:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.74478	0.75000	0.57500	m_x,m_y,m_z	3.54400	6.23500	6.89300
2	0.74478	0.25000	0.07500	-m_x,m_y,-m_z	-3.54400	6.23500	-6.89300
(1/2,1/2,0)' + set click here to show and hide
3	0.24478	0.25000	0.57500	-m_x,-m_y,-m_z	-3.54400	-6.23500	-6.89300
4	0.24478	0.75000	0.07500	m_x,-m_y,m_z	3.54400	-6.23500	6.89300

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy6:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.25522	0.25000	0.92500	m_x,m_y,m_z	4.98900	6.23500	6.63200
2	0.25522	0.75000	0.42500	-m_x,m_y,-m_z	-4.98900	6.23500	-6.63200
(1/2,1/2,0)' + set click here to show and hide
3	0.75522	0.75000	0.92500	-m_x,-m_y,-m_z	-4.98900	-6.23500	-6.63200
4	0.75522	0.25000	0.42500	m_x,-m_y,m_z	4.98900	-6.23500	6.63200

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy7:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.15522	0.25000	0.82500	m_x,m_y,m_z	4.33100	-6.23500	-2.41900
2	0.15522	0.75000	0.32500	-m_x,m_y,-m_z	-4.33100	-6.23500	2.41900
(1/2,1/2,0)' + set click here to show and hide
3	0.65522	0.75000	0.82500	-m_x,-m_y,-m_z	-4.33100	6.23500	2.41900
4	0.65522	0.25000	0.32500	m_x,-m_y,m_z	4.33100	6.23500	-2.41900

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy8:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.05522	0.25000	0.72500	m_x,m_y,m_z	-3.29200	6.23500	-6.89000
2	0.05522	0.75000	0.22500	-m_x,m_y,-m_z	3.29200	6.23500	6.89000
(1/2,1/2,0)' + set click here to show and hide
3	0.55522	0.75000	0.72500	-m_x,-m_y,-m_z	3.29200	-6.23500	6.89000
4	0.55522	0.25000	0.22500	m_x,-m_y,m_z	-3.29200	-6.23500	-6.89000

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy9:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.95522	0.25000	0.62500	m_x,m_y,m_z	-6.86900	-6.23500	-3.98900
2	0.95522	0.75000	0.12500	-m_x,m_y,-m_z	6.86900	-6.23500	3.98900
(1/2,1/2,0)' + set click here to show and hide
3	0.45522	0.75000	0.62500	-m_x,-m_y,-m_z	6.86900	6.23500	3.98900
4	0.45522	0.25000	0.12500	m_x,-m_y,m_z	-6.86900	6.23500	-3.98900

Set of atoms in the unit cell related by symmetry with the magnetic atom Dy10:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.85522	0.25000	0.52500	m_x,m_y,m_z	0.78800	6.23500	6.29900
2	0.85522	0.75000	0.02500	-m_x,m_y,-m_z	-0.78800	6.23500	-6.29900
(1/2,1/2,0)' + set click here to show and hide
3	0.35522	0.75000	0.52500	-m_x,-m_y,-m_z	-0.78800	-6.23500	-6.29900
4	0.35522	0.25000	0.02500	m_x,-m_y,m_z	0.78800	-6.23500	6.29900

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Te1:

Atom	x	y	z
1	0.99964	0.75000	0.92500
2	0.99964	0.25000	0.42500
(1/2,1/2,0)' + set click here to show and hide
3	0.49964	0.25000	0.92500
4	0.49964	0.75000	0.42500

Set of atoms in the unit cell related by symmetry with the atom Te2:

Atom	x	y	z
1	0.90036	0.75000	0.97500
2	0.90036	0.25000	0.47500
(1/2,1/2,0)' + set click here to show and hide
3	0.40036	0.25000	0.97500
4	0.40036	0.75000	0.47500

Set of atoms in the unit cell related by symmetry with the atom Te3:

Atom	x	y	z
1	0.89964	0.75000	0.82500
2	0.89964	0.25000	0.32500
(1/2,1/2,0)' + set click here to show and hide
3	0.39964	0.25000	0.82500
4	0.39964	0.75000	0.32500

Set of atoms in the unit cell related by symmetry with the atom Te4:

Atom	x	y	z
1	0.80036	0.75000	0.87500
2	0.80036	0.25000	0.37500
(1/2,1/2,0)' + set click here to show and hide
3	0.30036	0.25000	0.87500
4	0.30036	0.75000	0.37500

Set of atoms in the unit cell related by symmetry with the atom Te5:

Atom	x	y	z
1	0.79964	0.75000	0.72500
2	0.79964	0.25000	0.22500
(1/2,1/2,0)' + set click here to show and hide
3	0.29964	0.25000	0.72500
4	0.29964	0.75000	0.22500

Set of atoms in the unit cell related by symmetry with the atom Te6:

Atom	x	y	z
1	0.70036	0.75000	0.77500
2	0.70036	0.25000	0.27500
(1/2,1/2,0)' + set click here to show and hide
3	0.20036	0.25000	0.77500
4	0.20036	0.75000	0.27500

Set of atoms in the unit cell related by symmetry with the atom Te7:

Atom	x	y	z
1	0.69964	0.75000	0.62500
2	0.69964	0.25000	0.12500
(1/2,1/2,0)' + set click here to show and hide
3	0.19964	0.25000	0.62500
4	0.19964	0.75000	0.12500

Set of atoms in the unit cell related by symmetry with the atom Te8:

Atom	x	y	z
1	0.60036	0.75000	0.67500
2	0.60036	0.25000	0.17500
(1/2,1/2,0)' + set click here to show and hide
3	0.10036	0.25000	0.67500
4	0.10036	0.75000	0.17500

Set of atoms in the unit cell related by symmetry with the atom Te9:

Atom	x	y	z
1	0.59964	0.75000	0.52500
2	0.59964	0.25000	0.02500
(1/2,1/2,0)' + set click here to show and hide
3	0.09964	0.25000	0.52500
4	0.09964	0.75000	0.02500

Set of atoms in the unit cell related by symmetry with the atom Te10:

Atom	x	y	z
1	0.50036	0.75000	0.57500
2	0.50036	0.25000	0.07500
(1/2,1/2,0)' + set click here to show and hide
3	0.00036	0.25000	0.57500
4	0.00036	0.75000	0.07500

Set of atoms in the unit cell related by symmetry with the atom Te11:

Atom	x	y	z
1	0.26859	0.75000	0.97500
2	0.26859	0.25000	0.47500
(1/2,1/2,0)' + set click here to show and hide
3	0.76859	0.25000	0.97500
4	0.76859	0.75000	0.47500

Set of atoms in the unit cell related by symmetry with the atom Te12:

Atom	x	y	z
1	0.63141	0.75000	0.92500
2	0.63141	0.25000	0.42500
(1/2,1/2,0)' + set click here to show and hide
3	0.13141	0.25000	0.92500
4	0.13141	0.75000	0.42500

Set of atoms in the unit cell related by symmetry with the atom Te13:

Atom	x	y	z
1	0.16859	0.75000	0.87500
2	0.16859	0.25000	0.37500
(1/2,1/2,0)' + set click here to show and hide
3	0.66859	0.25000	0.87500
4	0.66859	0.75000	0.37500

Set of atoms in the unit cell related by symmetry with the atom Te14:

Atom	x	y	z
1	0.53141	0.75000	0.82500
2	0.53141	0.25000	0.32500
(1/2,1/2,0)' + set click here to show and hide
3	0.03141	0.25000	0.82500
4	0.03141	0.75000	0.32500

Set of atoms in the unit cell related by symmetry with the atom Te15:

Atom	x	y	z
1	0.06859	0.75000	0.77500
2	0.06859	0.25000	0.27500
(1/2,1/2,0)' + set click here to show and hide
3	0.56859	0.25000	0.77500
4	0.56859	0.75000	0.27500

Set of atoms in the unit cell related by symmetry with the atom Te16:

Atom	x	y	z
1	0.43141	0.75000	0.72500
2	0.43141	0.25000	0.22500
(1/2,1/2,0)' + set click here to show and hide
3	0.93141	0.25000	0.72500
4	0.93141	0.75000	0.22500

Set of atoms in the unit cell related by symmetry with the atom Te17:

Atom	x	y	z
1	0.96859	0.75000	0.67500
2	0.96859	0.25000	0.17500
(1/2,1/2,0)' + set click here to show and hide
3	0.46859	0.25000	0.67500
4	0.46859	0.75000	0.17500

Set of atoms in the unit cell related by symmetry with the atom Te18:

Atom	x	y	z
1	0.33141	0.75000	0.62500
2	0.33141	0.25000	0.12500
(1/2,1/2,0)' + set click here to show and hide
3	0.83141	0.25000	0.62500
4	0.83141	0.75000	0.12500

Set of atoms in the unit cell related by symmetry with the atom Te19:

Atom	x	y	z
1	0.86859	0.75000	0.57500
2	0.86859	0.25000	0.07500
(1/2,1/2,0)' + set click here to show and hide
3	0.36859	0.25000	0.57500
4	0.36859	0.75000	0.07500

Set of atoms in the unit cell related by symmetry with the atom Te20:

Atom	x	y	z
1	0.23141	0.75000	0.52500
2	0.23141	0.25000	0.02500
(1/2,1/2,0)' + set click here to show and hide
3	0.73141	0.25000	0.52500
4	0.73141	0.75000	0.02500

Set of atoms in the unit cell related by symmetry with the atom Te21:

Atom	x	y	z
1	0.35031	0.75000	0.92500
2	0.35031	0.25000	0.42500
(1/2,1/2,0)' + set click here to show and hide
3	0.85031	0.25000	0.92500
4	0.85031	0.75000	0.42500

Set of atoms in the unit cell related by symmetry with the atom Te22:

Atom	x	y	z
1	0.54969	0.75000	0.97500
2	0.54969	0.25000	0.47500
(1/2,1/2,0)' + set click here to show and hide
3	0.04969	0.25000	0.97500
4	0.04969	0.75000	0.47500

Set of atoms in the unit cell related by symmetry with the atom Te23:

Atom	x	y	z
1	0.25031	0.75000	0.82500
2	0.25031	0.25000	0.32500
(1/2,1/2,0)' + set click here to show and hide
3	0.75031	0.25000	0.82500
4	0.75031	0.75000	0.32500

Set of atoms in the unit cell related by symmetry with the atom Te24:

Atom	x	y	z
1	0.44969	0.75000	0.87500
2	0.44969	0.25000	0.37500
(1/2,1/2,0)' + set click here to show and hide
3	0.94969	0.25000	0.87500
4	0.94969	0.75000	0.37500

Set of atoms in the unit cell related by symmetry with the atom Te25:

Atom	x	y	z
1	0.15031	0.75000	0.72500
2	0.15031	0.25000	0.22500
(1/2,1/2,0)' + set click here to show and hide
3	0.65031	0.25000	0.72500
4	0.65031	0.75000	0.22500

Set of atoms in the unit cell related by symmetry with the atom Te26:

Atom	x	y	z
1	0.34969	0.75000	0.77500
2	0.34969	0.25000	0.27500
(1/2,1/2,0)' + set click here to show and hide
3	0.84969	0.25000	0.77500
4	0.84969	0.75000	0.27500

Set of atoms in the unit cell related by symmetry with the atom Te27:

Atom	x	y	z
1	0.05031	0.75000	0.62500
2	0.05031	0.25000	0.12500
(1/2,1/2,0)' + set click here to show and hide
3	0.55031	0.25000	0.62500
4	0.55031	0.75000	0.12500

Set of atoms in the unit cell related by symmetry with the atom Te28:

Atom	x	y	z
1	0.24969	0.75000	0.67500
2	0.24969	0.25000	0.17500
(1/2,1/2,0)' + set click here to show and hide
3	0.74969	0.25000	0.67500
4	0.74969	0.75000	0.17500

Set of atoms in the unit cell related by symmetry with the atom Te29:

Atom	x	y	z
1	0.95031	0.75000	0.52500
2	0.95031	0.25000	0.02500
(1/2,1/2,0)' + set click here to show and hide
3	0.45031	0.25000	0.52500
4	0.45031	0.75000	0.02500

Set of atoms in the unit cell related by symmetry with the atom Te30:

Atom	x	y	z
1	0.14969	0.75000	0.57500
2	0.14969	0.25000	0.07500
(1/2,1/2,0)' + set click here to show and hide
3	0.64969	0.25000	0.57500
4	0.64969	0.75000	0.07500

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Dy1	Dy	0.14478	0.75000	-0.02500	4	M_x,M_y,M_z	6.877	6.235	3.088	8.61
Dy2	Dy	0.04478	0.75000	0.87500	4	M_x,M_y,M_z	-1.397	-6.235	-6.524	8.61
Dy3	Dy	-0.05522	0.75000	0.77500	4	M_x,M_y,M_z	-5.358	6.235	-6.458	8.61
Dy4	Dy	0.84478	0.75000	0.67500	4	M_x,M_y,M_z	-3.434	-6.235	3.403	8.61
Dy5	Dy	0.74478	0.75000	0.57500	4	M_x,M_y,M_z	3.544	6.235	6.893	8.61
Dy6	Dy	0.25522	0.25000	-0.07500	4	M_x,M_y,M_z	4.989	6.235	6.632	8.61
Dy7	Dy	0.15522	0.25000	0.82500	4	M_x,M_y,M_z	4.331	-6.235	-2.419	8.61
Dy8	Dy	0.05522	0.25000	0.72500	4	M_x,M_y,M_z	-3.292	6.235	-6.89	8.61
Dy9	Dy	-0.04478	0.25000	0.62500	4	M_x,M_y,M_z	-6.869	-6.235	-3.989	8.61
Dy10	Dy	0.85522	0.25000	0.52500	4	M_x,M_y,M_z	0.788	6.235	6.299	8.61

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:
