TbSbTe (#2.102)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

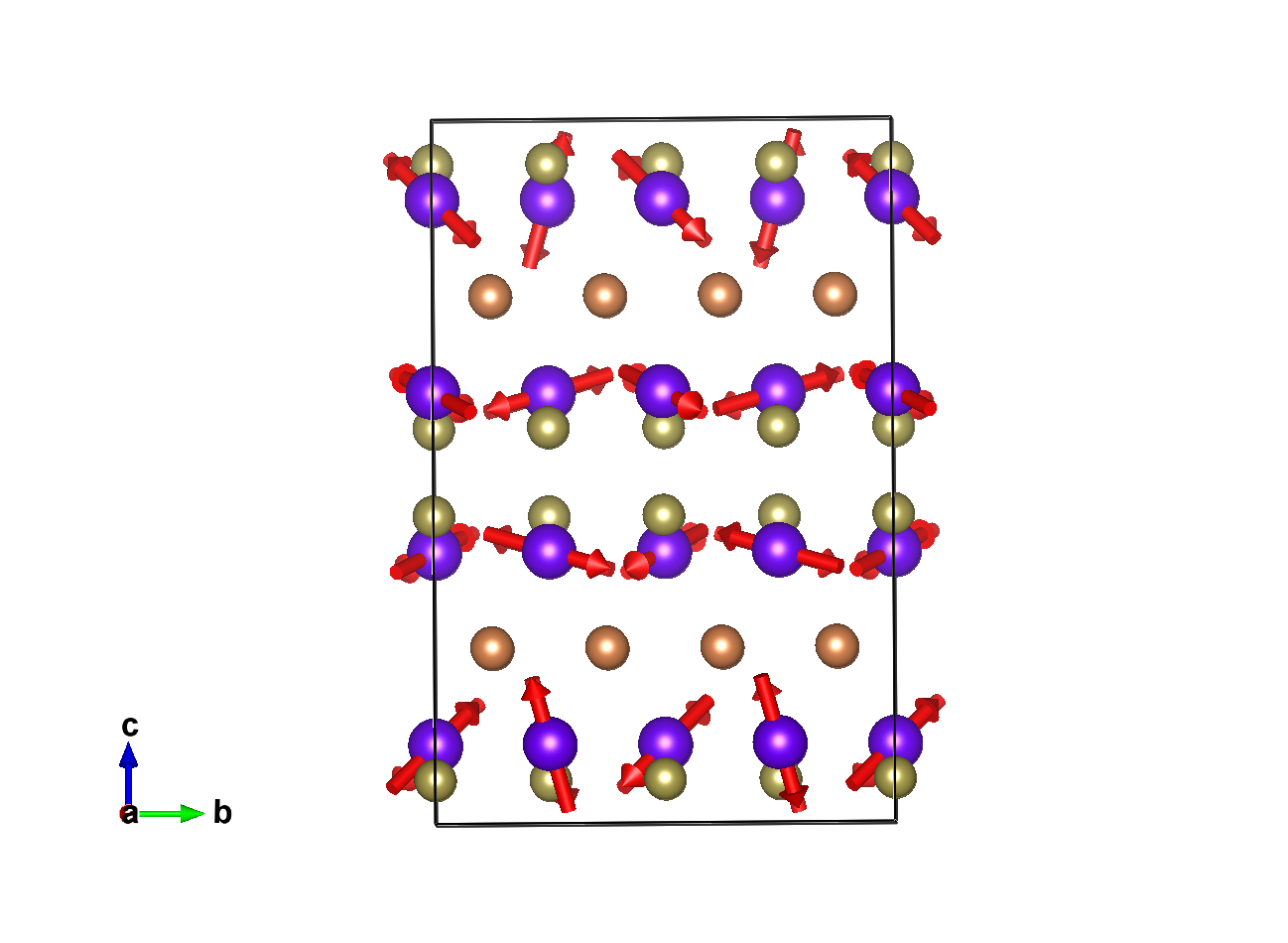

Magnetic structure with all atoms

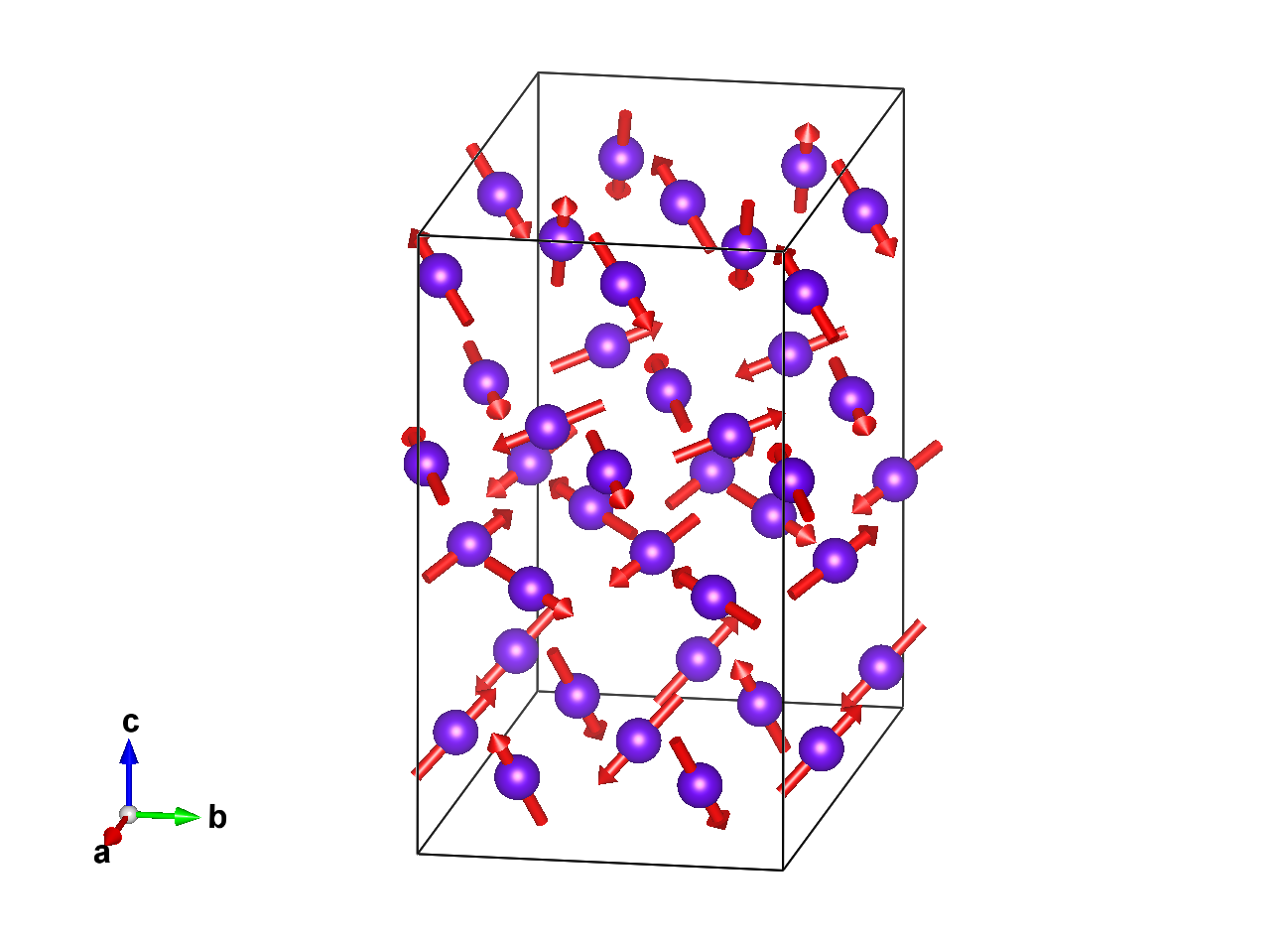

Magnetic structure with only magnetic atoms


Reference: I. Plokhikh, V. Pomjakushin, D. J. Gawryluk, O. Zaharko, E. Pomjakushina, Inorg. Chem. (2022) 61 11399 - 11409
DOI: 10.1021/acs.inorgchem.2c01711
Atomic positions from: same reference

Parent space group (paramagnetic phase): P4/nmm (#129) (non-standard)
Transformation to a standard setting: (a,b,c;1/4,-1/4,0)
    [View matrix form]
Propagation vector(s):
k1 (1/2, 0, 1/4)
k2 (0, 1/2, 1/4)

Transition Temperature: 5.3 K
Experiment Temperature: 1.7 K

Lattice parameters of the magnetic unit cell:
11.98451(17) 11.98451(17) 19.3291(4) 90 108.0559 90
Transformation from parent structure: (2a-2b,2a+2b,-a+b+2c;1/4,1/4,1/2)
    [View matrix form]

BNS Magnetic Space Group: Ca2 (#5.17) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 21' (3.2.7)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Tb1_1Tb0.5686300.3872585.8(1),,-4.10(4)3.11(6)1.74(6)5.83
Tb1_2Tb0.568630.250.8872585.8(1),,3.27(16)1.5(2)5.70(6)5.82
Tb1_3Tb0.8186300.8872585.8(1),,-1.86(13)-3.55(10)3.70(8)5.83
Tb1_4Tb0.818630.250.3872585.8(1),,2.05(15)5.04(6)-1.55(18)5.83

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. full irrepdim. small irrepdirectionactionnumber of modes
mW2W4 8 4 special-2 primary 8
mW1W3 8 4 special-2 primary? 4


Comments:
Comments (symmetry):
