TbSbTe (#2.101)

view in Jmol
Download mcif file
Download vesta file (all atoms)
Download vesta file (magnetic atoms only)


working...

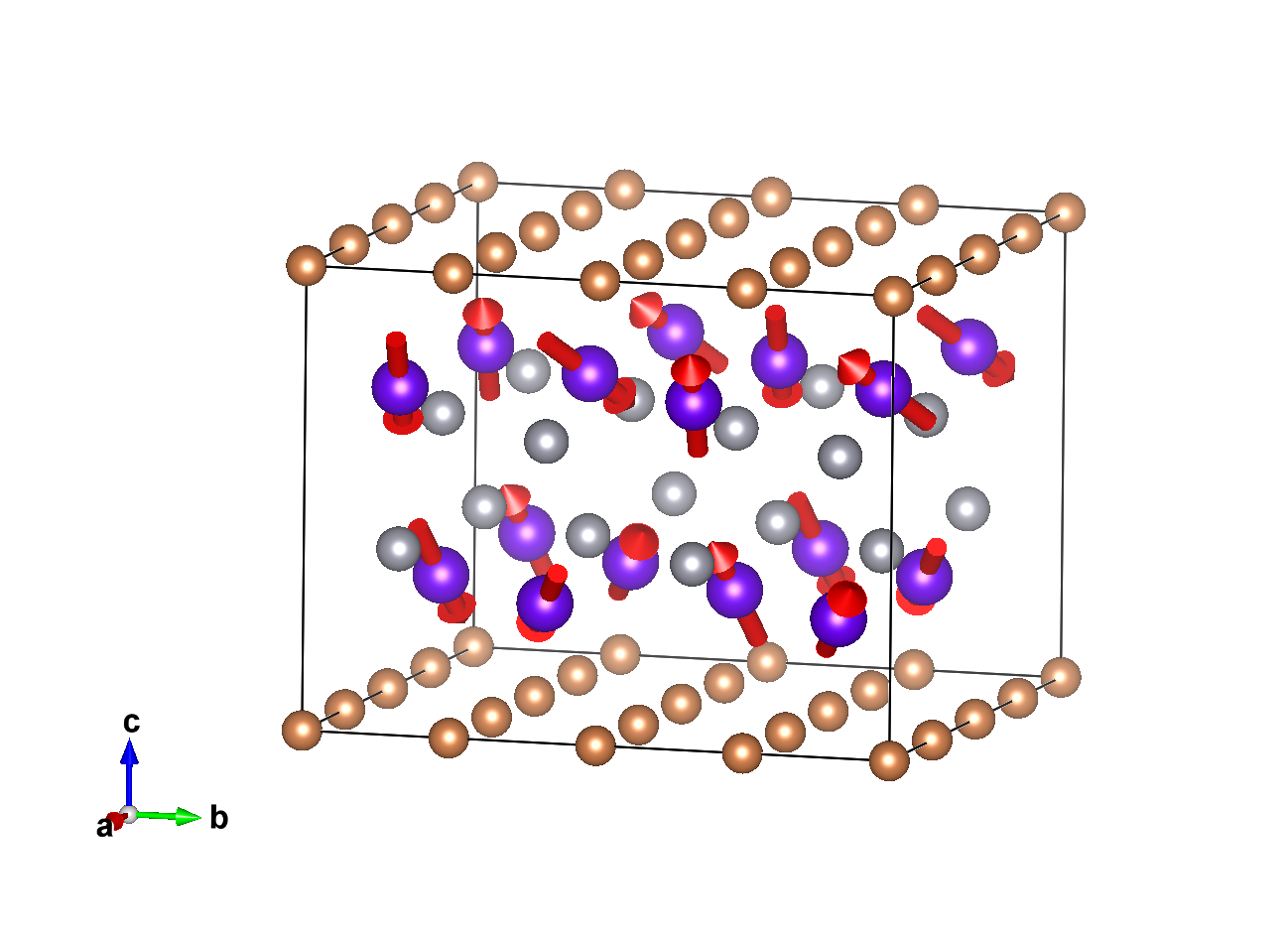

Magnetic structure with all atoms

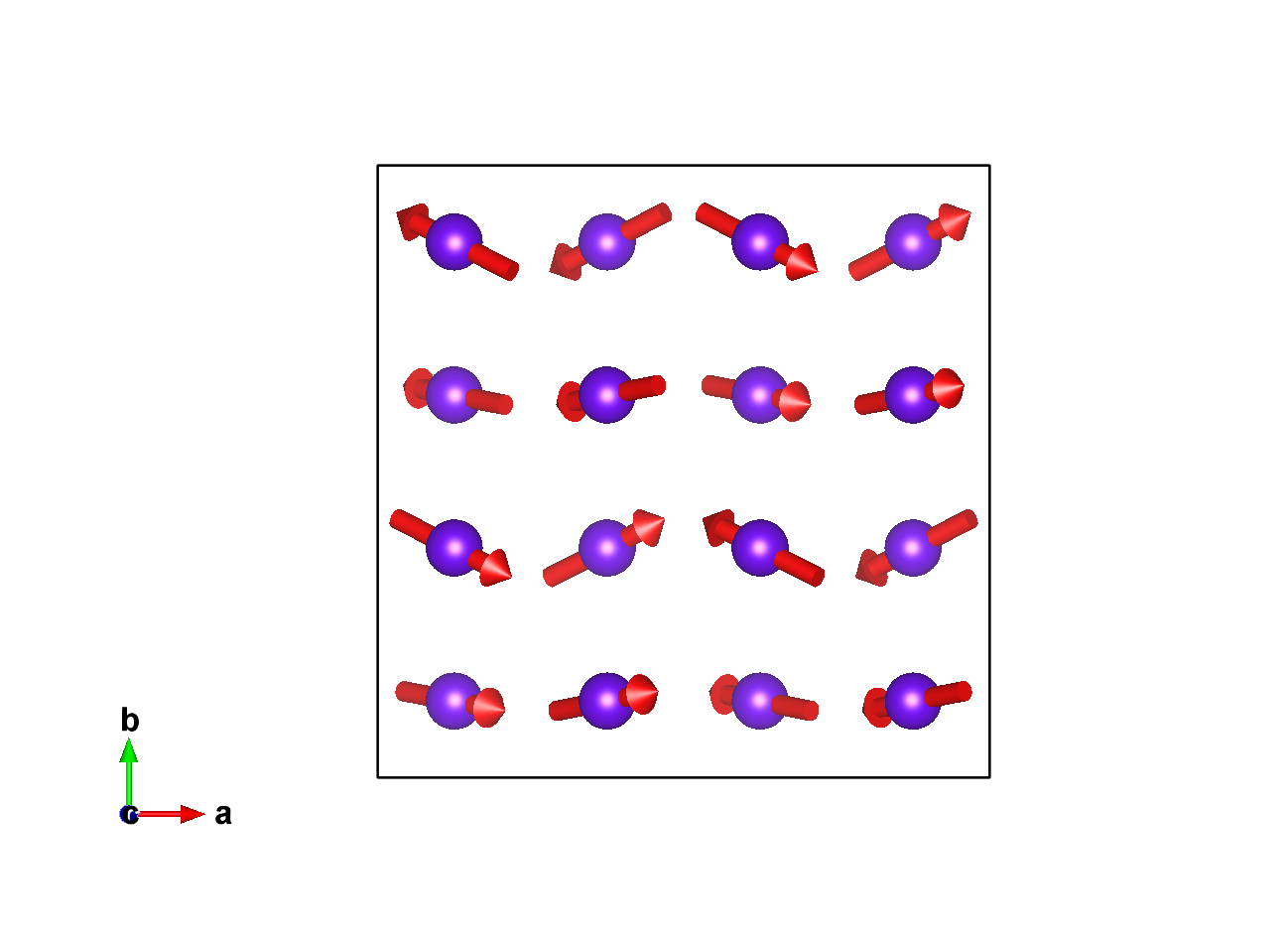

Magnetic structure with only magnetic atoms


Reference: I. Plokhikh, V. Pomjakushin, D. J. Gawryluk, O. Zaharko, E. Pomjakushina, Inorg. Chem. (2022) 61 11399 - 11409
DOI: 10.1021/acs.inorgchem.2c01711
Atomic positions from: same reference

Parent space group (paramagnetic phase): P4/nmm (#129) (non-standard)
Transformation to a standard setting: (a,b,c;1/4,-1/4,0)
    [View matrix form]
Propagation vector(s):
k1 (1/2, 0, 0)
k2 (0, 1/2, 0)

Transition Temperature: 4.3 K
Experiment Temperature: 1.7 K

Lattice parameters of the magnetic unit cell:
11.98451(17) 11.98451(17) 9.1986(5) 90 90 90
Transformation from parent structure: (2a-2b,2a+2b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Ca2 (#5.17) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: 21' (3.2.7)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]


LabelAtom typexyzMultiplicitySymmetry constraints on MMxMyMz|M|
Tb1_1Tb0.1250.3750.724678mx,my,mz4.43(6)-2.27(10)3.03(9)5.83
Tb1_2Tb0.3750.1250.724678mx,my,mz3.91(7)0.76(9)4.26(7)5.83

    [Show all magnetic atoms in unit cell and their moment relations]



Active Irreps:
Irrep decomposition via


labeldim. full irrepdim. small irrepdirectionactionnumber of modes
mX2 4 2 special-2 primary 4
mX1 4 2 special-2 primary 2


Comments:
Comments (symmetry):
