MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-y,x-y+1/3,z,+1	{ 3⁺₀₀₁ \| 0 1/3 0 }
3	-x+y+2/3,-x,z,+1	{ 3^-₀₀₁ \| 2/3 0 0 }
4	-x+y+2/3,-x,-z,+1	{ -6⁺₀₀₁ \| 2/3 0 0 }
5	x,y,-z,+1	{ m₀₀₁ \| 0 }
6	-y,x-y+1/3,-z,+1	{ -6^-₀₀₁ \| 0 1/3 0 }
(1/3,2/3,0) + set click here to show and hide
7	x+1/3,y+2/3,z,+1	{ 1 \| 1/3 2/3 0 }
8	-y+1/3,x-y,z,+1	{ 3⁺₀₀₁ \| 1/3 0 0 }
9	-x+y,-x+2/3,z,+1	{ 3^-₀₀₁ \| 0 2/3 0 }
10	-x+y,-x+2/3,-z,+1	{ -6⁺₀₀₁ \| 0 2/3 0 }
11	x+1/3,y+2/3,-z,+1	{ m₀₀₁ \| 1/3 2/3 0 }
12	-y+1/3,x-y,-z,+1	{ -6^-₀₀₁ \| 1/3 0 0 }
(2/3,1/3,0) + set click here to show and hide
13	x+2/3,y+1/3,z,+1	{ 1 \| 2/3 1/3 0 }
14	-y+2/3,x-y+2/3,z,+1	{ 3⁺₀₀₁ \| 2/3 2/3 0 }
15	-x+y+1/3,-x+1/3,z,+1	{ 3^-₀₀₁ \| 1/3 1/3 0 }
16	-x+y+1/3,-x+1/3,-z,+1	{ -6⁺₀₀₁ \| 1/3 1/3 0 }
17	x+2/3,y+1/3,-z,+1	{ m₀₀₁ \| 2/3 1/3 0 }
18	-y+2/3,x-y+2/3,-z,+1	{ -6^-₀₀₁ \| 2/3 2/3 0 }
(0,0,1/2)' + set click here to show and hide
19	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
20	-y,x-y+1/3,z+1/2,-1	{ 3'⁺₀₀₁ \| 0 1/3 1/2 }
21	-x+y+2/3,-x,z+1/2,-1	{ 3'^-₀₀₁ \| 2/3 0 1/2 }
22	-x+y+2/3,-x,-z+1/2,-1	{ -6'⁺₀₀₁ \| 2/3 0 1/2 }
23	x,y,-z+1/2,-1	{ m'₀₀₁ \| 0 0 1/2 }
24	-y,x-y+1/3,-z+1/2,-1	{ -6'^-₀₀₁ \| 0 1/3 1/2 }
(1/3,2/3,1/2)' + set click here to show and hide
25	x+1/3,y+2/3,z+1/2,-1	{ 1' \| 1/3 2/3 1/2 }
26	-y+1/3,x-y,z+1/2,-1	{ 3'⁺₀₀₁ \| 1/3 0 1/2 }
27	-x+y,-x+2/3,z+1/2,-1	{ 3'^-₀₀₁ \| 0 2/3 1/2 }
28	-x+y,-x+2/3,-z+1/2,-1	{ -6'⁺₀₀₁ \| 0 2/3 1/2 }
29	x+1/3,y+2/3,-z+1/2,-1	{ m'₀₀₁ \| 1/3 2/3 1/2 }
30	-y+1/3,x-y,-z+1/2,-1	{ -6'^-₀₀₁ \| 1/3 0 1/2 }
(2/3,1/3,1/2)' + set click here to show and hide
31	x+2/3,y+1/3,z+1/2,-1	{ 1' \| 2/3 1/3 1/2 }
32	-y+2/3,x-y+2/3,z+1/2,-1	{ 3'⁺₀₀₁ \| 2/3 2/3 1/2 }
33	-x+y+1/3,-x+1/3,z+1/2,-1	{ 3'^-₀₀₁ \| 1/3 1/3 1/2 }
34	-x+y+1/3,-x+1/3,-z+1/2,-1	{ -6'⁺₀₀₁ \| 1/3 1/3 1/2 }
35	x+2/3,y+1/3,-z+1/2,-1	{ m'₀₀₁ \| 2/3 1/3 1/2 }
36	-y+2/3,x-y+2/3,-z+1/2,-1	{ -6'^-₀₀₁ \| 2/3 2/3 1/2 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-y,x-y,z,+1	3⁺₀₀₁
3	-x+y,-x,z,+1	3^-₀₀₁
4	-x+y,-x,-z,+1	-6⁺₀₀₁
5	x,y,-z,+1	m₀₀₁
6	-y,x-y,-z,+1	-6^-₀₀₁
1' + set click here to show and hide
7	x,y,z,-1	1'
8	-y,x-y,z,-1	3'⁺₀₀₁
9	-x+y,-x,z,-1	3'^-₀₀₁
10	-x+y,-x,-z,-1	-6'⁺₀₀₁
11	x,y,-z,-1	m'₀₀₁
12	-y,x-y,-z,-1	-6'^-₀₀₁

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Cr1_1	Cr	0.19703	0.00000	0.25000	18	m_x,m_y,0	0.768	-1.724	2.21
Cr1_2	Cr	0.00000	0.19703	0.25000	18	m_x,m_y,0	2.492	0.768	2.21
Cr1_3	Cr	0.80297	0.80297	0.25000	18	m_x,m_y,0	0.768	-1.724	2.21

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Rh1_1	Rh	0.08560	0.00000	0.00000	18
Rh1_2	Rh	0.00000	0.08560	0.00000	18
Rh1_3	Rh	0.91440	0.91440	0.00000	18
As1	As	0.00000	0.00000	0.25000	18
As2_1	As	0.11111	0.22222	0.00000	18
As2_2	As	0.22222	0.11111	0.00000	6
As2_3	As	0.22222	0.44444	0.00000	6
As2_4	As	0.22222	0.77778	0.00000	6

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.19703	0.00000	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
2	0.00000	0.53036	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
3	0.46964	0.80297	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.53036	0.66667	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
5	0.33333	0.19703	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
6	0.80297	0.46964	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.86370	0.33333	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
8	0.66667	0.86370	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
9	0.13630	0.13630	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.19703	0.00000	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
11	0.00000	0.53036	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
12	0.46964	0.80297	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.53036	0.66667	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
14	0.33333	0.19703	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
15	0.80297	0.46964	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.86370	0.33333	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
17	0.66667	0.86370	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
18	0.13630	0.13630	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.19703	0.25000	m_x,m_y,0	2.49200	0.76800	0.00000
2	0.80297	0.13630	0.25000	-m_y,m_x-m_y,0	-0.76800	1.72400	0.00000
3	0.86370	0.00000	0.25000	-m_x+m_y,-m_x,0	-1.72400	-2.49200	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.33333	0.86370	0.25000	m_x,m_y,0	2.49200	0.76800	0.00000
5	0.13630	0.80297	0.25000	-m_y,m_x-m_y,0	-0.76800	1.72400	0.00000
6	0.19703	0.66667	0.25000	-m_x+m_y,-m_x,0	-1.72400	-2.49200	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.66667	0.53036	0.25000	m_x,m_y,0	2.49200	0.76800	0.00000
8	0.46964	0.46964	0.25000	-m_y,m_x-m_y,0	-0.76800	1.72400	0.00000
9	0.53036	0.33333	0.25000	-m_x+m_y,-m_x,0	-1.72400	-2.49200	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.00000	0.19703	0.75000	-m_x,-m_y,0	-2.49200	-0.76800	0.00000
11	0.80297	0.13630	0.75000	m_y,-m_x+m_y,0	0.76800	-1.72400	0.00000
12	0.86370	0.00000	0.75000	m_x-m_y,m_x,0	1.72400	2.49200	0.00000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.33333	0.86370	0.75000	-m_x,-m_y,0	-2.49200	-0.76800	0.00000
14	0.13630	0.80297	0.75000	m_y,-m_x+m_y,0	0.76800	-1.72400	0.00000
15	0.19703	0.66667	0.75000	m_x-m_y,m_x,0	1.72400	2.49200	0.00000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.66667	0.53036	0.75000	-m_x,-m_y,0	-2.49200	-0.76800	0.00000
17	0.46964	0.46964	0.75000	m_y,-m_x+m_y,0	0.76800	-1.72400	0.00000
18	0.53036	0.33333	0.75000	m_x-m_y,m_x,0	1.72400	2.49200	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.80297	0.80297	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
2	0.19703	0.33333	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
3	0.66667	0.19703	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.13630	0.46964	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
5	0.53036	0.00000	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
6	0.00000	0.86370	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.46964	0.13630	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
8	0.86370	0.66667	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
9	0.33333	0.53036	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.80297	0.80297	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
11	0.19703	0.33333	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
12	0.66667	0.19703	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.13630	0.46964	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
14	0.53036	0.00000	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
15	0.00000	0.86370	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.46964	0.13630	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
17	0.86370	0.66667	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
18	0.33333	0.53036	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Rh1_1:

Atom	x	y	z
1	0.08560	0.00000	0.00000
2	0.00000	0.41893	0.00000
3	0.58107	0.91440	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.41893	0.66667	0.00000
5	0.33333	0.08560	0.00000
6	0.91440	0.58107	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.75227	0.33333	0.00000
8	0.66667	0.75227	0.00000
9	0.24773	0.24773	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.08560	0.00000	0.50000
11	0.00000	0.41893	0.50000
12	0.58107	0.91440	0.50000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.41893	0.66667	0.50000
14	0.33333	0.08560	0.50000
15	0.91440	0.58107	0.50000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.75227	0.33333	0.50000
17	0.66667	0.75227	0.50000
18	0.24773	0.24773	0.50000

Set of atoms in the unit cell related by symmetry with the atom Rh1_2:

Atom	x	y	z
1	0.00000	0.08560	0.00000
2	0.91440	0.24773	0.00000
3	0.75227	0.00000	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.33333	0.75227	0.00000
5	0.24773	0.91440	0.00000
6	0.08560	0.66667	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.66667	0.41893	0.00000
8	0.58107	0.58107	0.00000
9	0.41893	0.33333	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.00000	0.08560	0.50000
11	0.91440	0.24773	0.50000
12	0.75227	0.00000	0.50000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.33333	0.75227	0.50000
14	0.24773	0.91440	0.50000
15	0.08560	0.66667	0.50000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.66667	0.41893	0.50000
17	0.58107	0.58107	0.50000
18	0.41893	0.33333	0.50000

Set of atoms in the unit cell related by symmetry with the atom Rh1_3:

Atom	x	y	z
1	0.91440	0.91440	0.00000
2	0.08560	0.33333	0.00000
3	0.66667	0.08560	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.24773	0.58107	0.00000
5	0.41893	0.00000	0.00000
6	0.00000	0.75227	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.58107	0.24773	0.00000
8	0.75227	0.66667	0.00000
9	0.33333	0.41893	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.91440	0.91440	0.50000
11	0.08560	0.33333	0.50000
12	0.66667	0.08560	0.50000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.24773	0.58107	0.50000
14	0.41893	0.00000	0.50000
15	0.00000	0.75227	0.50000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.58107	0.24773	0.50000
17	0.75227	0.66667	0.50000
18	0.33333	0.41893	0.50000

Set of atoms in the unit cell related by symmetry with the atom As1:

Atom	x	y	z
1	0.00000	0.00000	0.25000
2	0.00000	0.33333	0.25000
3	0.66667	0.00000	0.25000
(1/3,2/3,0) + set click here to show and hide
4	0.33333	0.66667	0.25000
5	0.33333	0.00000	0.25000
6	0.00000	0.66667	0.25000
(2/3,1/3,0) + set click here to show and hide
7	0.66667	0.33333	0.25000
8	0.66667	0.66667	0.25000
9	0.33333	0.33333	0.25000
(0,0,1/2)' + set click here to show and hide
10	0.00000	0.00000	0.75000
11	0.00000	0.33333	0.75000
12	0.66667	0.00000	0.75000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.33333	0.66667	0.75000
14	0.33333	0.00000	0.75000
15	0.00000	0.66667	0.75000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.66667	0.33333	0.75000
17	0.66667	0.66667	0.75000
18	0.33333	0.33333	0.75000

Set of atoms in the unit cell related by symmetry with the atom As2_1:

Atom	x	y	z
1	0.11111	0.22222	0.00000
2	0.77778	0.22222	0.00000
3	0.77778	0.88889	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.44444	0.88889	0.00000
5	0.11111	0.88889	0.00000
6	0.11111	0.55556	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.77778	0.55555	0.00000
8	0.44445	0.55556	0.00000
9	0.44444	0.22222	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.11111	0.22222	0.50000
11	0.77778	0.22222	0.50000
12	0.77778	0.88889	0.50000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.44444	0.88889	0.50000
14	0.11111	0.88889	0.50000
15	0.11111	0.55556	0.50000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.77778	0.55555	0.50000
17	0.44445	0.55556	0.50000
18	0.44444	0.22222	0.50000

Set of atoms in the unit cell related by symmetry with the atom As2_2:

Atom	x	y	z
1	0.22222	0.11111	0.00000
(1/3,2/3,0) + set click here to show and hide
2	0.55555	0.77778	0.00000
(2/3,1/3,0) + set click here to show and hide
3	0.88889	0.44444	0.00000
(0,0,1/2)' + set click here to show and hide
4	0.22222	0.11111	0.50000
(1/3,2/3,1/2)' + set click here to show and hide
5	0.55555	0.77778	0.50000
(2/3,1/3,1/2)' + set click here to show and hide
6	0.88889	0.44444	0.50000

Set of atoms in the unit cell related by symmetry with the atom As2_3:

Atom	x	y	z
1	0.22222	0.44444	0.00000
(1/3,2/3,0) + set click here to show and hide
2	0.55555	0.11111	0.00000
(2/3,1/3,0) + set click here to show and hide
3	0.88889	0.77777	0.00000
(0,0,1/2)' + set click here to show and hide
4	0.22222	0.44444	0.50000
(1/3,2/3,1/2)' + set click here to show and hide
5	0.55555	0.11111	0.50000
(2/3,1/3,1/2)' + set click here to show and hide
6	0.88889	0.77777	0.50000

Set of atoms in the unit cell related by symmetry with the atom As2_4:

Atom	x	y	z
1	0.22222	0.77778	0.00000
(1/3,2/3,0) + set click here to show and hide
2	0.55555	0.44445	0.00000
(2/3,1/3,0) + set click here to show and hide
3	0.88889	0.11111	0.00000
(0,0,1/2)' + set click here to show and hide
4	0.22222	0.77778	0.50000
(1/3,2/3,1/2)' + set click here to show and hide
5	0.55555	0.44445	0.50000
(2/3,1/3,1/2)' + set click here to show and hide
6	0.88889	0.11111	0.50000

[Hide]

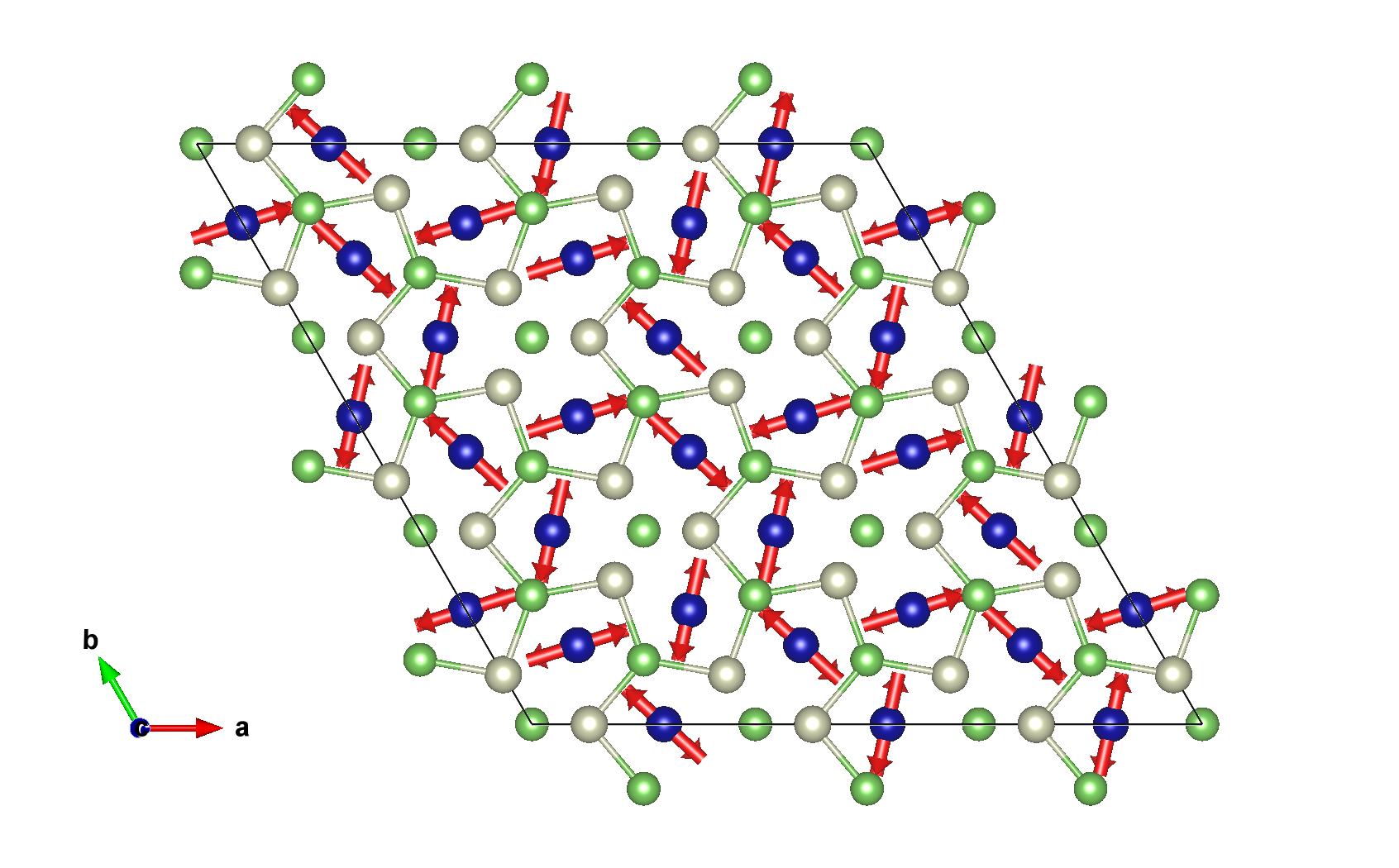

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Cr1_1	Cr	0.19703	0.00000	0.25000	18	m_x,m_y,0	0.768	-1.724	2.21
Cr1_2	Cr	0.00000	0.19703	0.25000	18	m_x,m_y,0	2.492	0.768	2.21
Cr1_3	Cr	0.80297	0.80297	0.25000	18	m_x,m_y,0	0.768	-1.724	2.21

[Show all magnetic atoms in unit cell and their moment relations]

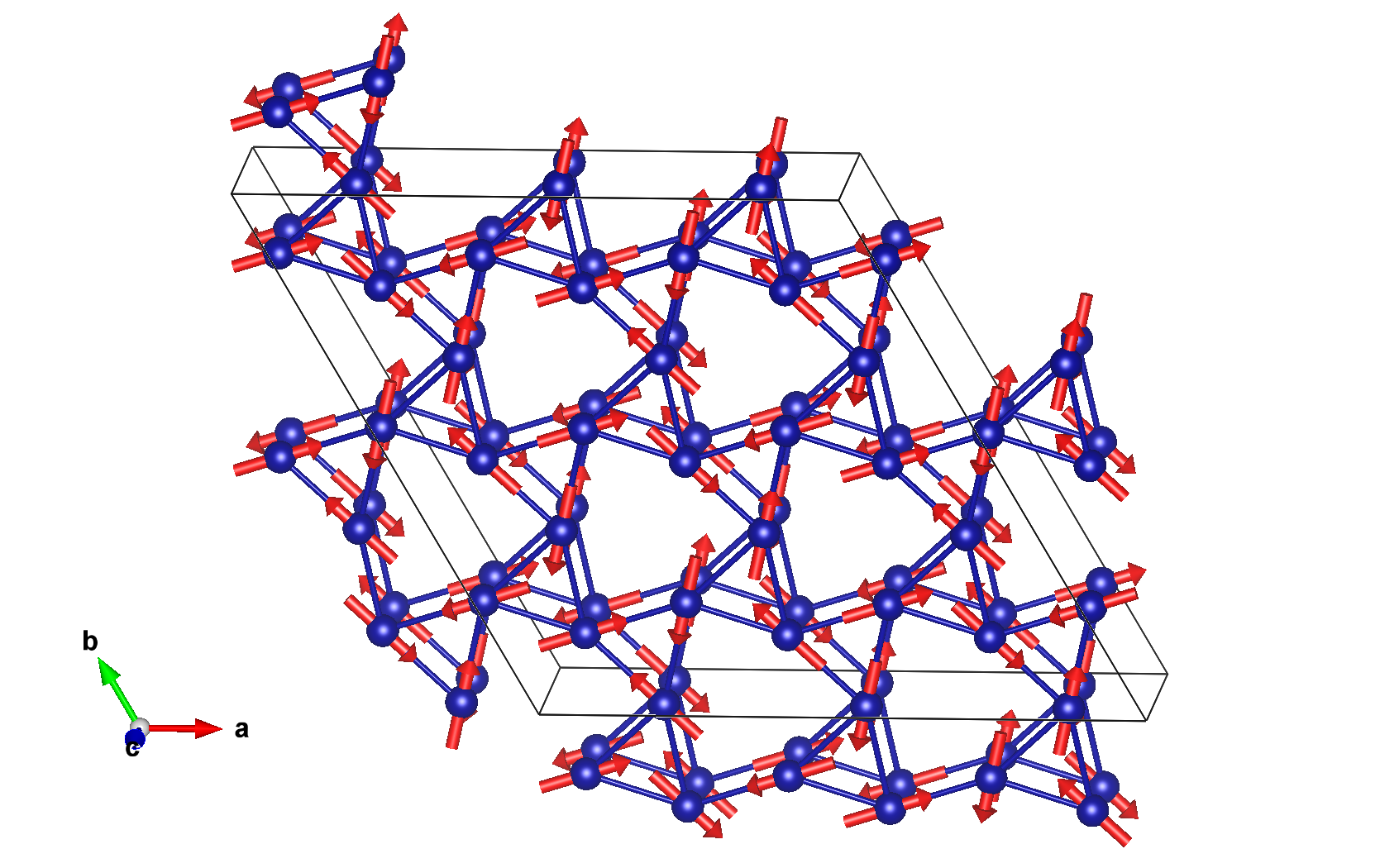

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.19703	0.00000	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
2	0.00000	0.53036	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
3	0.46964	0.80297	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.53036	0.66667	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
5	0.33333	0.19703	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
6	0.80297	0.46964	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.86370	0.33333	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
8	0.66667	0.86370	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
9	0.13630	0.13630	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.19703	0.00000	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
11	0.00000	0.53036	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
12	0.46964	0.80297	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.53036	0.66667	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
14	0.33333	0.19703	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
15	0.80297	0.46964	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.86370	0.33333	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
17	0.66667	0.86370	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
18	0.13630	0.13630	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.19703	0.25000	m_x,m_y,0	2.49200	0.76800	0.00000
2	0.80297	0.13630	0.25000	-m_y,m_x-m_y,0	-0.76800	1.72400	0.00000
3	0.86370	0.00000	0.25000	-m_x+m_y,-m_x,0	-1.72400	-2.49200	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.33333	0.86370	0.25000	m_x,m_y,0	2.49200	0.76800	0.00000
5	0.13630	0.80297	0.25000	-m_y,m_x-m_y,0	-0.76800	1.72400	0.00000
6	0.19703	0.66667	0.25000	-m_x+m_y,-m_x,0	-1.72400	-2.49200	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.66667	0.53036	0.25000	m_x,m_y,0	2.49200	0.76800	0.00000
8	0.46964	0.46964	0.25000	-m_y,m_x-m_y,0	-0.76800	1.72400	0.00000
9	0.53036	0.33333	0.25000	-m_x+m_y,-m_x,0	-1.72400	-2.49200	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.00000	0.19703	0.75000	-m_x,-m_y,0	-2.49200	-0.76800	0.00000
11	0.80297	0.13630	0.75000	m_y,-m_x+m_y,0	0.76800	-1.72400	0.00000
12	0.86370	0.00000	0.75000	m_x-m_y,m_x,0	1.72400	2.49200	0.00000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.33333	0.86370	0.75000	-m_x,-m_y,0	-2.49200	-0.76800	0.00000
14	0.13630	0.80297	0.75000	m_y,-m_x+m_y,0	0.76800	-1.72400	0.00000
15	0.19703	0.66667	0.75000	m_x-m_y,m_x,0	1.72400	2.49200	0.00000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.66667	0.53036	0.75000	-m_x,-m_y,0	-2.49200	-0.76800	0.00000
17	0.46964	0.46964	0.75000	m_y,-m_x+m_y,0	0.76800	-1.72400	0.00000
18	0.53036	0.33333	0.75000	m_x-m_y,m_x,0	1.72400	2.49200	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Cr1_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.80297	0.80297	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
2	0.19703	0.33333	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
3	0.66667	0.19703	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(1/3,2/3,0) + set click here to show and hide
4	0.13630	0.46964	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
5	0.53036	0.00000	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
6	0.00000	0.86370	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(2/3,1/3,0) + set click here to show and hide
7	0.46964	0.13630	0.25000	m_x,m_y,0	0.76800	-1.72400	0.00000
8	0.86370	0.66667	0.25000	-m_y,m_x-m_y,0	1.72400	2.49200	0.00000
9	0.33333	0.53036	0.25000	-m_x+m_y,-m_x,0	-2.49200	-0.76800	0.00000
(0,0,1/2)' + set click here to show and hide
10	0.80297	0.80297	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
11	0.19703	0.33333	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
12	0.66667	0.19703	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000
(1/3,2/3,1/2)' + set click here to show and hide
13	0.13630	0.46964	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
14	0.53036	0.00000	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
15	0.00000	0.86370	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000
(2/3,1/3,1/2)' + set click here to show and hide
16	0.46964	0.13630	0.75000	-m_x,-m_y,0	-0.76800	1.72400	0.00000
17	0.86370	0.66667	0.75000	m_y,-m_x+m_y,0	-1.72400	-2.49200	0.00000
18	0.33333	0.53036	0.75000	m_x-m_y,m_x,0	2.49200	0.76800	0.00000

[Hide]

label	dim. full irrep	dim. small irrep	direction	action	number of modes	presence
mH5HA5	4	2	special	primary	4
mA4	1	1		secondary	1	yes
mA1	1	1		seocndary	1	yes

MAGNDATA: A Collection of magnetic structures with portable cif-type files

CrRhAs (#1.895)
