MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,y,-z+1/2,+1	{ 2₀₁₀ \| 0 0 1/2 }
3	-x,-y,-z+1/2,+1	{ -1 \| 0 0 1/2 }
4	x,-y,z,+1	{ m₀₁₀ \| 0 }
(1/2,1/2,0) + set click here to show and hide
5	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
6	-x+1/2,y+1/2,-z+1/2,+1	{ 2₀₁₀ \| 1/2 1/2 1/2 }
7	-x+1/2,-y+1/2,-z+1/2,+1	{ -1 \| 1/2 1/2 1/2 }
8	x+1/2,-y+1/2,z,+1	{ m₀₁₀ \| 1/2 1/2 0 }
(0,0,1/2)' + set click here to show and hide
9	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
10	-x,y,-z,-1	{ 2'₀₁₀ \| 0 }
11	-x,-y,-z,-1	{ -1' \| 0 }
12	x,-y,z+1/2,-1	{ m'₀₁₀ \| 0 0 1/2 }
(1/2,1/2,1/2)' + set click here to show and hide
13	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
14	-x+1/2,y+1/2,-z,-1	{ 2'₀₁₀ \| 1/2 1/2 0 }
15	-x+1/2,-y+1/2,-z,-1	{ -1' \| 1/2 1/2 0 }
16	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }

[Hide]

Symmetry operations of the magnetic point group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,y,-z,+1	2₀₁₀
3	-x,-y,-z,+1	-1
4	x,-y,z,+1	m₀₁₀
1' + set click here to show and hide
5	x,y,z,-1	1'
6	-x,y,-z,-1	2'₀₁₀
7	-x,-y,-z,-1	-1'
8	x,-y,z,-1	m'₀₁₀

[Hide]

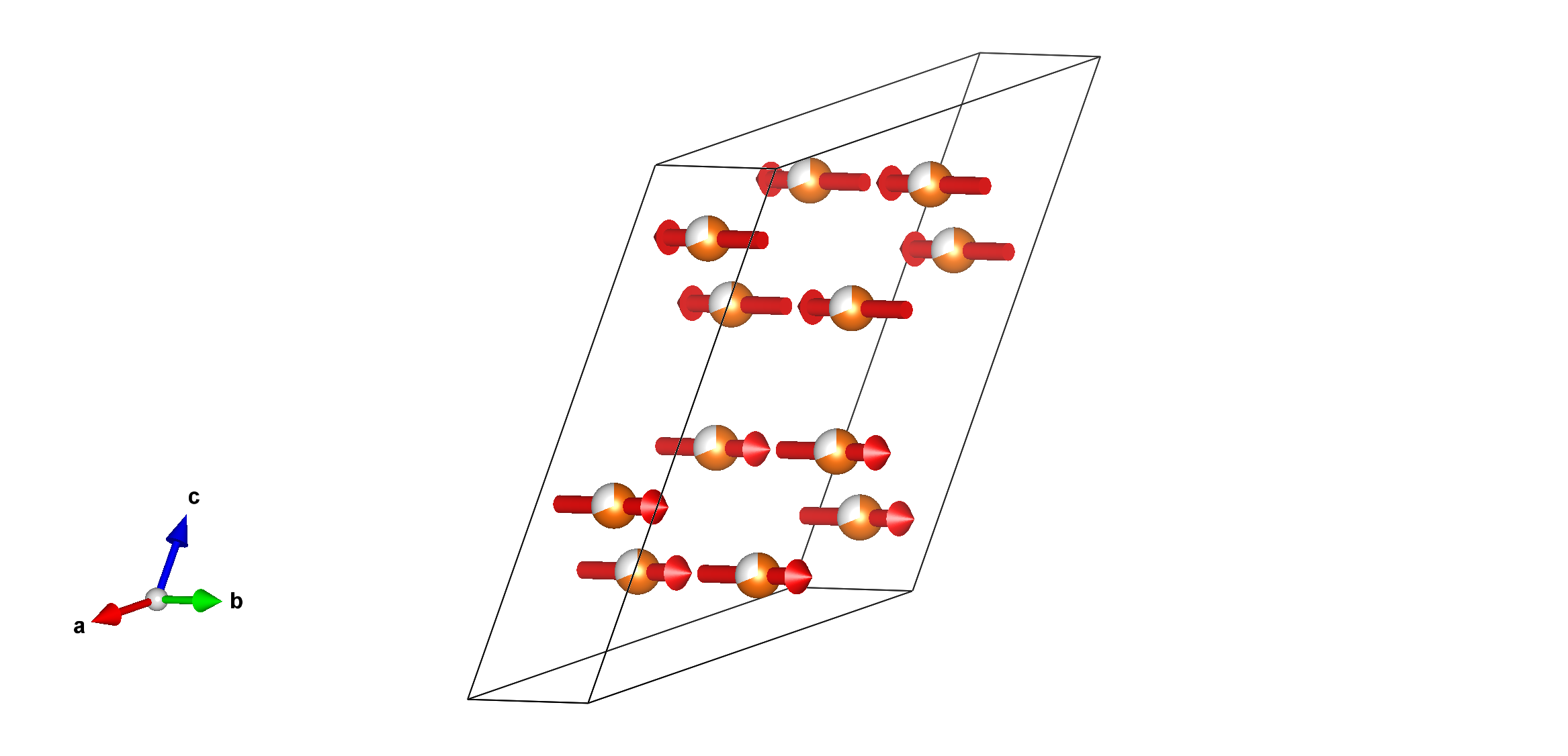

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.5615(12)	0.00000	0.147	0.68	8	0,m_y,0	0.0	8.8(2)	0.0	8.80

Non-magnetic atoms:

Label	Atom type	x	z	Occupancy	Multiplicity
Lu1	Lu	0.5615(12)	0.147	0.32	8
Fe1	Fe	0.204(1)	0.050	1.	8
Si1	Si	0.155(3)	0.350	1.	8
C1	C	0.00000	0.00000	1.	4

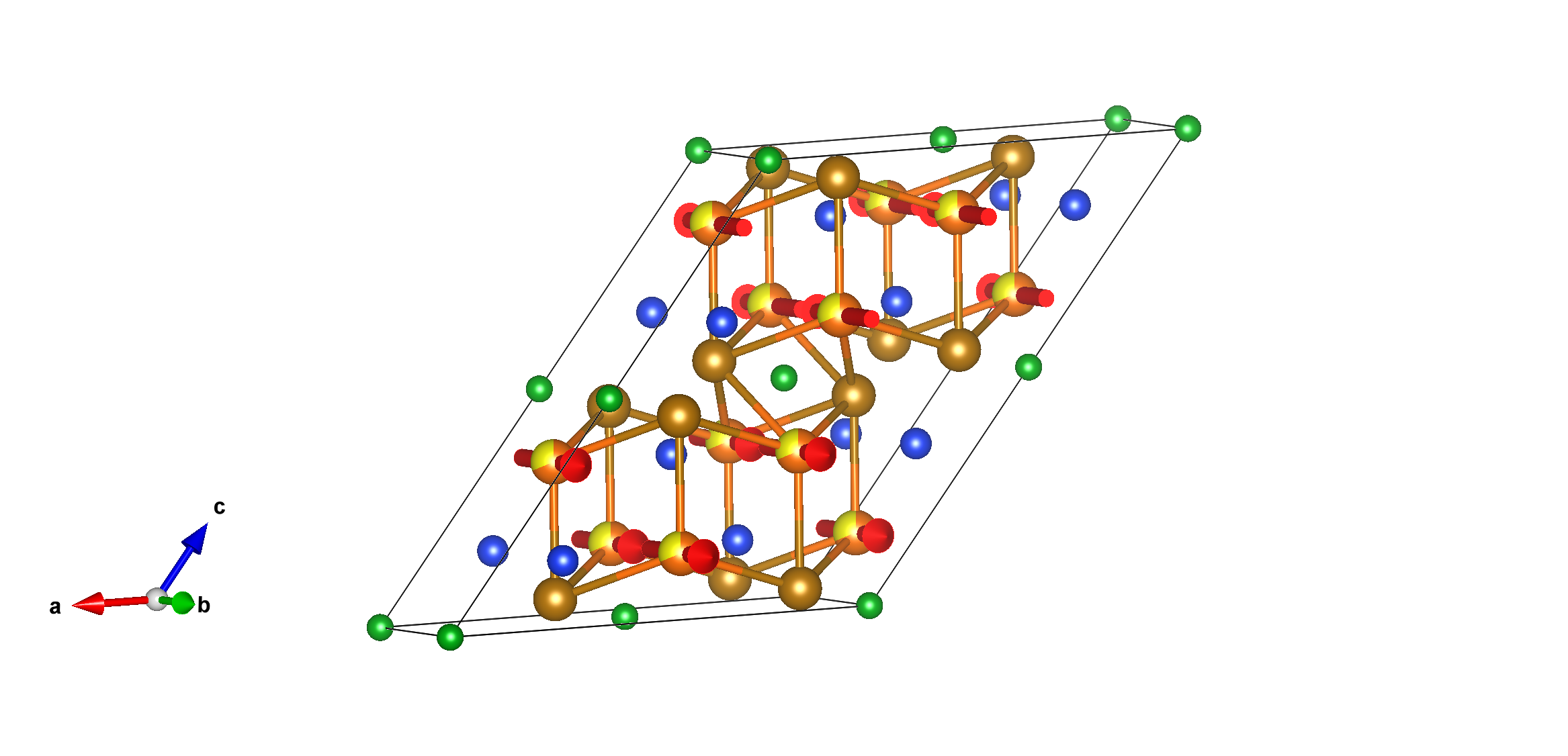

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Ho1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.56150	0.00000	0.14700	0,m_y,0	0.00000	8.80000	0.00000
2	0.43850	0.00000	0.35300	0,m_y,0	0.00000	8.80000	0.00000
(1/2,1/2,0) + set click here to show and hide
3	0.06150	0.50000	0.14700	0,m_y,0	0.00000	8.80000	0.00000
4	0.93850	0.50000	0.35300	0,m_y,0	0.00000	8.80000	0.00000
(0,0,1/2)' + set click here to show and hide
5	0.56150	0.00000	0.64700	0,-m_y,0	0.00000	-8.80000	0.00000
6	0.43850	0.00000	0.85300	0,-m_y,0	0.00000	-8.80000	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
7	0.06150	0.50000	0.64700	0,-m_y,0	0.00000	-8.80000	0.00000
8	0.93850	0.50000	0.85300	0,-m_y,0	0.00000	-8.80000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Lu1:

Atom	x	y	z
1	0.56150	0.00000	0.14700
2	0.43850	0.00000	0.35300
(1/2,1/2,0) + set click here to show and hide
3	0.06150	0.50000	0.14700
4	0.93850	0.50000	0.35300
(0,0,1/2)' + set click here to show and hide
5	0.56150	0.00000	0.64700
6	0.43850	0.00000	0.85300
(1/2,1/2,1/2)' + set click here to show and hide
7	0.06150	0.50000	0.64700
8	0.93850	0.50000	0.85300

Set of atoms in the unit cell related by symmetry with the atom Fe1:

Atom	x	y	z
1	0.20400	0.00000	0.05000
2	0.79600	0.00000	0.45000
(1/2,1/2,0) + set click here to show and hide
3	0.70400	0.50000	0.05000
4	0.29600	0.50000	0.45000
(0,0,1/2)' + set click here to show and hide
5	0.20400	0.00000	0.55000
6	0.79600	0.00000	0.95000
(1/2,1/2,1/2)' + set click here to show and hide
7	0.70400	0.50000	0.55000
8	0.29600	0.50000	0.95000

Set of atoms in the unit cell related by symmetry with the atom Si1:

Atom	x	y	z
1	0.15500	0.00000	0.35000
2	0.84500	0.00000	0.15000
(1/2,1/2,0) + set click here to show and hide
3	0.65500	0.50000	0.35000
4	0.34500	0.50000	0.15000
(0,0,1/2)' + set click here to show and hide
5	0.15500	0.00000	0.85000
6	0.84500	0.00000	0.65000
(1/2,1/2,1/2)' + set click here to show and hide
7	0.65500	0.50000	0.85000
8	0.34500	0.50000	0.65000

Set of atoms in the unit cell related by symmetry with the atom C1:

Atom	x	y	z
1	0.00000	0.00000	0.00000
(1/2,1/2,0) + set click here to show and hide
2	0.50000	0.50000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.00000	0.00000	0.50000
(1/2,1/2,1/2)' + set click here to show and hide
4	0.50000	0.50000	0.50000

[Hide]

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.5615(12)	0.00000	0.147	0.68	8	0,m_y,0	0.0	8.8(2)	0.0	8.80

label	dim. small irrep	dim. full irrep	action	number of modes
mA2-	1	1	primary	1
