MAGNDATA - Collection of Magnetic Structures

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,y,-z+1/2,+1	{ m₀₀₁ \| 0 0 1/2 }
(0,1/2,1/2) + set click here to show and hide
3	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
4	x,y+1/2,-z,+1	{ m₀₀₁ \| 0 1/2 0 }
(0,0,1/2)' + set click here to show and hide
5	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
6	x,y,-z,-1	{ m'₀₀₁ \| 0 }
(0,1/2,0)' + set click here to show and hide
7	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
8	x,y+1/2,-z+1/2,-1	{ m'₀₀₁ \| 0 1/2 1/2 }

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,y,-z,+1	m₀₀₁
1' + set click here to show and hide
3	x,y,z,-1	1'
4	x,y,-z,-1	m'₀₀₁

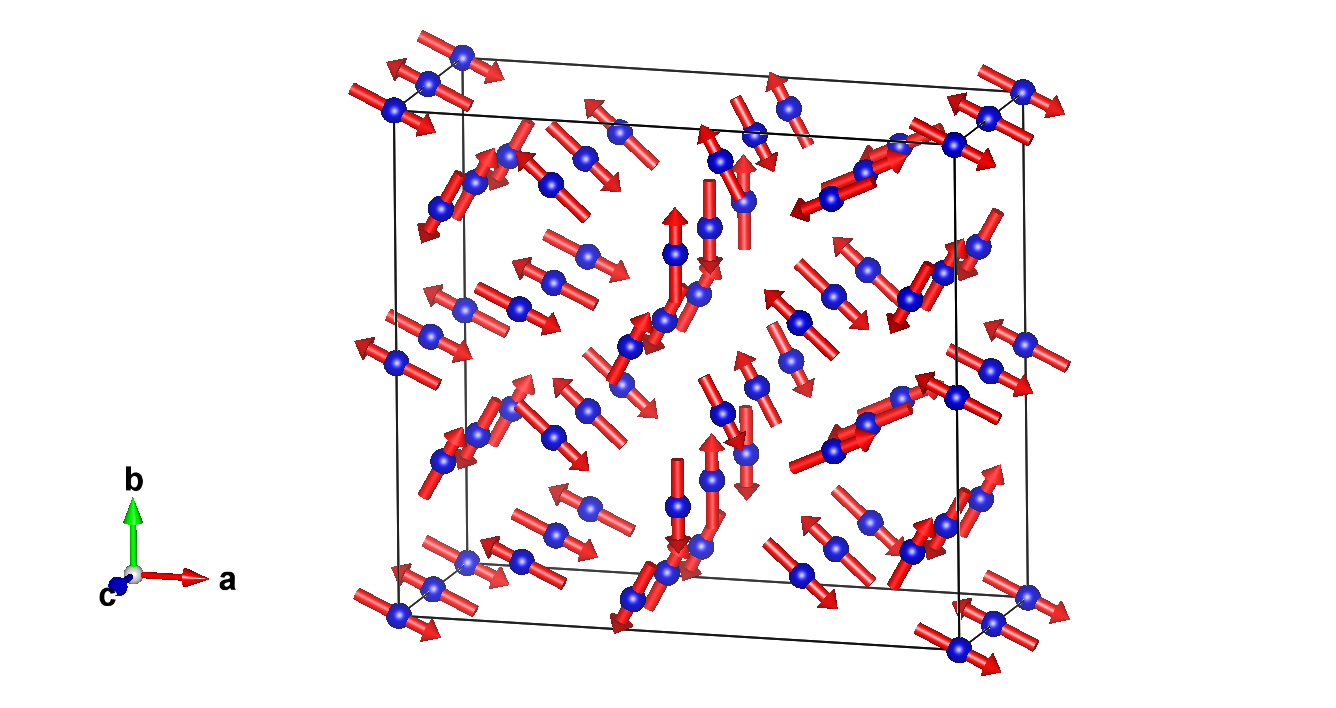

Magnetic atoms:

Label	Atom type	x	y	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Tm1_1	Tm	0.00000	0.00000	4	m_x,m_y,0	5.7	-2.6	6.26
Tm1_2	Tm	0.50000	0.25000	4	m_x,m_y,0	0.0	-6.3	6.30
Tm2_1	Tm	0.22040	0.12150	4	m_x,m_y,0	-5.7	2.6	6.26
Tm2_2	Tm	0.77960	0.87850	4	m_x,m_y,0	-5.7	-2.6	6.26
Tm2_3	Tm	0.27960	0.37150	4	m_x,m_y,0	4.8	-4.2	6.38
Tm2_4	Tm	0.72040	0.12850	4	m_x,m_y,0	4.8	-4.2	6.38
Tm3_1	Tm	0.41800	0.06100	4	m_x,m_y,0	-2.6	-4.8	5.46
Tm3_2	Tm	0.58200	0.93900	4	m_x,m_y,0	-2.6	4.8	5.46
Tm3_3	Tm	0.08200	0.31100	4	m_x,m_y,0	2.7	4.8	5.51
Tm3_4	Tm	0.91800	0.18900	4	m_x,m_y,0	2.7	4.8	5.51

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Pt1_1	Pt	0.30570	0.01450	0.25000	4
Pt1_2	Pt	0.69430	0.98550	0.25000	4
Pt1_3	Pt	0.19430	0.26450	0.25000	4
Pt1_4	Pt	0.80570	0.23550	0.25000	4
In1_1	In	0.56800	0.09950	0.25000	4
In1_2	In	0.43200	0.90050	0.25000	4
In1_3	In	0.93200	0.34950	0.25000	4
In1_4	In	0.06800	0.15050	0.25000	4
In2_1	In	0.85000	0.03650	0.25000	4
In2_2	In	0.15000	0.96350	0.25000	4
In2_3	In	0.65000	0.28650	0.25000	4
In2_4	In	0.35000	0.21350	0.25000	4

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_y,0	5.70000	-2.60000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.00000	0.50000	0.50000	m_x,m_y,0	5.70000	-2.60000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.00000	0.00000	0.50000	-m_x,-m_y,0	-5.70000	2.60000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.00000	0.50000	0.00000	-m_x,-m_y,0	-5.70000	2.60000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm1_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.50000	0.25000	0.00000	m_x,m_y,0	0.00000	-6.30000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.50000	0.75000	0.50000	m_x,m_y,0	0.00000	-6.30000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.50000	0.25000	0.50000	-m_x,-m_y,0	0.00000	6.30000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.50000	0.75000	0.00000	-m_x,-m_y,0	0.00000	6.30000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm2_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.22040	0.12150	0.00000	m_x,m_y,0	-5.70000	2.60000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.22040	0.62150	0.50000	m_x,m_y,0	-5.70000	2.60000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.22040	0.12150	0.50000	-m_x,-m_y,0	5.70000	-2.60000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.22040	0.62150	0.00000	-m_x,-m_y,0	5.70000	-2.60000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm2_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.77960	0.87850	0.00000	m_x,m_y,0	-5.70000	-2.60000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.77960	0.37850	0.50000	m_x,m_y,0	-5.70000	-2.60000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.77960	0.87850	0.50000	-m_x,-m_y,0	5.70000	2.60000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.77960	0.37850	0.00000	-m_x,-m_y,0	5.70000	2.60000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm2_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.27960	0.37150	0.00000	m_x,m_y,0	4.80000	-4.20000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.27960	0.87150	0.50000	m_x,m_y,0	4.80000	-4.20000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.27960	0.37150	0.50000	-m_x,-m_y,0	-4.80000	4.20000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.27960	0.87150	0.00000	-m_x,-m_y,0	-4.80000	4.20000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm2_4:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.72040	0.12850	0.00000	m_x,m_y,0	4.80000	-4.20000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.72040	0.62850	0.50000	m_x,m_y,0	4.80000	-4.20000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.72040	0.12850	0.50000	-m_x,-m_y,0	-4.80000	4.20000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.72040	0.62850	0.00000	-m_x,-m_y,0	-4.80000	4.20000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm3_1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.41800	0.06100	0.00000	m_x,m_y,0	-2.60000	-4.80000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.41800	0.56100	0.50000	m_x,m_y,0	-2.60000	-4.80000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.41800	0.06100	0.50000	-m_x,-m_y,0	2.60000	4.80000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.41800	0.56100	0.00000	-m_x,-m_y,0	2.60000	4.80000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm3_2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.58200	0.93900	0.00000	m_x,m_y,0	-2.60000	4.80000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.58200	0.43900	0.50000	m_x,m_y,0	-2.60000	4.80000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.58200	0.93900	0.50000	-m_x,-m_y,0	2.60000	-4.80000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.58200	0.43900	0.00000	-m_x,-m_y,0	2.60000	-4.80000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm3_3:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.08200	0.31100	0.00000	m_x,m_y,0	2.70000	4.80000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.08200	0.81100	0.50000	m_x,m_y,0	2.70000	4.80000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.08200	0.31100	0.50000	-m_x,-m_y,0	-2.70000	-4.80000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.08200	0.81100	0.00000	-m_x,-m_y,0	-2.70000	-4.80000	0.00000

Set of atoms in the unit cell related by symmetry with the magnetic atom Tm3_4:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.91800	0.18900	0.00000	m_x,m_y,0	2.70000	4.80000	0.00000
(0,1/2,1/2) + set click here to show and hide
2	0.91800	0.68900	0.50000	m_x,m_y,0	2.70000	4.80000	0.00000
(0,0,1/2)' + set click here to show and hide
3	0.91800	0.18900	0.50000	-m_x,-m_y,0	-2.70000	-4.80000	0.00000
(0,1/2,0)' + set click here to show and hide
4	0.91800	0.68900	0.00000	-m_x,-m_y,0	-2.70000	-4.80000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Pt1_1:

Atom	x	y	z
1	0.30570	0.01450	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.30570	0.51450	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.30570	0.01450	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.30570	0.51450	0.25000

Set of atoms in the unit cell related by symmetry with the atom Pt1_2:

Atom	x	y	z
1	0.69430	0.98550	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.69430	0.48550	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.69430	0.98550	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.69430	0.48550	0.25000

Set of atoms in the unit cell related by symmetry with the atom Pt1_3:

Atom	x	y	z
1	0.19430	0.26450	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.19430	0.76450	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.19430	0.26450	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.19430	0.76450	0.25000

Set of atoms in the unit cell related by symmetry with the atom Pt1_4:

Atom	x	y	z
1	0.80570	0.23550	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.80570	0.73550	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.80570	0.23550	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.80570	0.73550	0.25000

Set of atoms in the unit cell related by symmetry with the atom In1_1:

Atom	x	y	z
1	0.56800	0.09950	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.56800	0.59950	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.56800	0.09950	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.56800	0.59950	0.25000

Set of atoms in the unit cell related by symmetry with the atom In1_2:

Atom	x	y	z
1	0.43200	0.90050	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.43200	0.40050	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.43200	0.90050	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.43200	0.40050	0.25000

Set of atoms in the unit cell related by symmetry with the atom In1_3:

Atom	x	y	z
1	0.93200	0.34950	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.93200	0.84950	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.93200	0.34950	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.93200	0.84950	0.25000

Set of atoms in the unit cell related by symmetry with the atom In1_4:

Atom	x	y	z
1	0.06800	0.15050	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.06800	0.65050	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.06800	0.15050	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.06800	0.65050	0.25000

Set of atoms in the unit cell related by symmetry with the atom In2_1:

Atom	x	y	z
1	0.85000	0.03650	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.85000	0.53650	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.85000	0.03650	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.85000	0.53650	0.25000

Set of atoms in the unit cell related by symmetry with the atom In2_2:

Atom	x	y	z
1	0.15000	0.96350	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.15000	0.46350	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.15000	0.96350	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.15000	0.46350	0.25000

Set of atoms in the unit cell related by symmetry with the atom In2_3:

Atom	x	y	z
1	0.65000	0.28650	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.65000	0.78650	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.65000	0.28650	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.65000	0.78650	0.25000

Set of atoms in the unit cell related by symmetry with the atom In2_4:

Atom	x	y	z
1	0.35000	0.21350	0.25000
(0,1/2,1/2) + set click here to show and hide
2	0.35000	0.71350	0.75000
(0,0,1/2)' + set click here to show and hide
3	0.35000	0.21350	0.75000
(0,1/2,0)' + set click here to show and hide
4	0.35000	0.71350	0.25000

[Hide]

Label	Atom type	x	y	Multiplicity	Symmetry constraints on M	M_x	M_y	\|M\|
Tm1_1	Tm	0.00000	0.00000	4	m_x,m_y,0	5.7	-2.6	6.26
Tm1_2	Tm	0.50000	0.25000	4	m_x,m_y,0	0.0	-6.3	6.30
Tm2_1	Tm	0.22040	0.12150	4	m_x,m_y,0	-5.7	2.6	6.26
Tm2_2	Tm	0.77960	0.87850	4	m_x,m_y,0	-5.7	-2.6	6.26
Tm2_3	Tm	0.27960	0.37150	4	m_x,m_y,0	4.8	-4.2	6.38
Tm2_4	Tm	0.72040	0.12850	4	m_x,m_y,0	4.8	-4.2	6.38
Tm3_1	Tm	0.41800	0.06100	4	m_x,m_y,0	-2.6	-4.8	5.46
Tm3_2	Tm	0.58200	0.93900	4	m_x,m_y,0	-2.6	4.8	5.46
Tm3_3	Tm	0.08200	0.31100	4	m_x,m_y,0	2.7	4.8	5.51
Tm3_4	Tm	0.91800	0.18900	4	m_x,m_y,0	2.7	4.8	5.51

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:
