MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-y+1/2,-x+1/2,-z+1/2,+1	{ 2_1-10 \| 1/2 1/2 1/2 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	y+1/2,x+1/2,z+1/2,+1	{ m_1-10 \| 1/2 1/2 1/2 }
(0,1/4,3/4) + set click here to show and hide
5	x,y+1/4,z+3/4,+1	{ 1 \| 0 1/4 3/4 }
6	-y+1/2,-x+3/4,-z+1/4,+1	{ 2_1-10 \| 1/2 3/4 1/4 }
7	-x,-y+1/4,-z+3/4,+1	{ -1 \| 0 1/4 3/4 }
8	y+1/2,x+3/4,z+1/4,+1	{ m_1-10 \| 1/2 3/4 1/4 }
(0,1/2,1/2) + set click here to show and hide
9	x,y+1/2,z+1/2,+1	{ 1 \| 0 1/2 1/2 }
10	-y+1/2,-x,-z,+1	{ 2_1-10 \| 1/2 0 0 }
11	-x,-y+1/2,-z+1/2,+1	{ -1 \| 0 1/2 1/2 }
12	y+1/2,x,z,+1	{ m_1-10 \| 1/2 0 0 }
(0,3/4,1/4) + set click here to show and hide
13	x,y+3/4,z+1/4,+1	{ 1 \| 0 3/4 1/4 }
14	-y+1/2,-x+1/4,-z+3/4,+1	{ 2_1-10 \| 1/2 1/4 3/4 }
15	-x,-y+3/4,-z+1/4,+1	{ -1 \| 0 3/4 1/4 }
16	y+1/2,x+1/4,z+3/4,+1	{ m_1-10 \| 1/2 1/4 3/4 }
(1/4,0,3/4) + set click here to show and hide
17	x+1/4,y,z+3/4,+1	{ 1 \| 1/4 0 3/4 }
18	-y+3/4,-x+1/2,-z+1/4,+1	{ 2_1-10 \| 3/4 1/2 1/4 }
19	-x+1/4,-y,-z+3/4,+1	{ -1 \| 1/4 0 3/4 }
20	y+3/4,x+1/2,z+1/4,+1	{ m_1-10 \| 3/4 1/2 1/4 }
(1/4,1/4,1/2) + set click here to show and hide
21	x+1/4,y+1/4,z+1/2,+1	{ 1 \| 1/4 1/4 1/2 }
22	-y+3/4,-x+3/4,-z,+1	{ 2_1-10 \| 3/4 3/4 0 }
23	-x+1/4,-y+1/4,-z+1/2,+1	{ -1 \| 1/4 1/4 1/2 }
24	y+3/4,x+3/4,z,+1	{ m_1-10 \| 3/4 3/4 0 }
(1/4,1/2,1/4) + set click here to show and hide
25	x+1/4,y+1/2,z+1/4,+1	{ 1 \| 1/4 1/2 1/4 }
26	-y+3/4,-x,-z+3/4,+1	{ 2_1-10 \| 3/4 0 3/4 }
27	-x+1/4,-y+1/2,-z+1/4,+1	{ -1 \| 1/4 1/2 1/4 }
28	y+3/4,x,z+3/4,+1	{ m_1-10 \| 3/4 0 3/4 }
(1/4,3/4,0) + set click here to show and hide
29	x+1/4,y+3/4,z,+1	{ 1 \| 1/4 3/4 0 }
30	-y+3/4,-x+1/4,-z+1/2,+1	{ 2_1-10 \| 3/4 1/4 1/2 }
31	-x+1/4,-y+3/4,-z,+1	{ -1 \| 1/4 3/4 0 }
32	y+3/4,x+1/4,z+1/2,+1	{ m_1-10 \| 3/4 1/4 1/2 }
(1/2,0,1/2) + set click here to show and hide
33	x+1/2,y,z+1/2,+1	{ 1 \| 1/2 0 1/2 }
34	-y,-x+1/2,-z,+1	{ 2_1-10 \| 0 1/2 0 }
35	-x+1/2,-y,-z+1/2,+1	{ -1 \| 1/2 0 1/2 }
36	y,x+1/2,z,+1	{ m_1-10 \| 0 1/2 0 }
(1/2,1/4,1/4) + set click here to show and hide
37	x+1/2,y+1/4,z+1/4,+1	{ 1 \| 1/2 1/4 1/4 }
38	-y,-x+3/4,-z+3/4,+1	{ 2_1-10 \| 0 3/4 3/4 }
39	-x+1/2,-y+1/4,-z+1/4,+1	{ -1 \| 1/2 1/4 1/4 }
40	y,x+3/4,z+3/4,+1	{ m_1-10 \| 0 3/4 3/4 }
(1/2,1/2,0) + set click here to show and hide
41	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
42	-y,-x,-z+1/2,+1	{ 2_1-10 \| 0 0 1/2 }
43	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
44	y,x,z+1/2,+1	{ m_1-10 \| 0 0 1/2 }
(1/2,3/4,3/4) + set click here to show and hide
45	x+1/2,y+3/4,z+3/4,+1	{ 1 \| 1/2 3/4 3/4 }
46	-y,-x+1/4,-z+1/4,+1	{ 2_1-10 \| 0 1/4 1/4 }
47	-x+1/2,-y+3/4,-z+3/4,+1	{ -1 \| 1/2 3/4 3/4 }
48	y,x+1/4,z+1/4,+1	{ m_1-10 \| 0 1/4 1/4 }
(3/4,0,1/4) + set click here to show and hide
49	x+3/4,y,z+1/4,+1	{ 1 \| 3/4 0 1/4 }
50	-y+1/4,-x+1/2,-z+3/4,+1	{ 2_1-10 \| 1/4 1/2 3/4 }
51	-x+3/4,-y,-z+1/4,+1	{ -1 \| 3/4 0 1/4 }
52	y+1/4,x+1/2,z+3/4,+1	{ m_1-10 \| 1/4 1/2 3/4 }
(3/4,1/4,0) + set click here to show and hide
53	x+3/4,y+1/4,z,+1	{ 1 \| 3/4 1/4 0 }
54	-y+1/4,-x+3/4,-z+1/2,+1	{ 2_1-10 \| 1/4 3/4 1/2 }
55	-x+3/4,-y+1/4,-z,+1	{ -1 \| 3/4 1/4 0 }
56	y+1/4,x+3/4,z+1/2,+1	{ m_1-10 \| 1/4 3/4 1/2 }
(3/4,1/2,3/4) + set click here to show and hide
57	x+3/4,y+1/2,z+3/4,+1	{ 1 \| 3/4 1/2 3/4 }
58	-y+1/4,-x,-z+1/4,+1	{ 2_1-10 \| 1/4 0 1/4 }
59	-x+3/4,-y+1/2,-z+3/4,+1	{ -1 \| 3/4 1/2 3/4 }
60	y+1/4,x,z+1/4,+1	{ m_1-10 \| 1/4 0 1/4 }
(3/4,3/4,1/2) + set click here to show and hide
61	x+3/4,y+3/4,z+1/2,+1	{ 1 \| 3/4 3/4 1/2 }
62	-y+1/4,-x+1/4,-z,+1	{ 2_1-10 \| 1/4 1/4 0 }
63	-x+3/4,-y+3/4,-z+1/2,+1	{ -1 \| 3/4 3/4 1/2 }
64	y+1/4,x+1/4,z,+1	{ m_1-10 \| 1/4 1/4 0 }
(1/2,1/2,1/2)' + set click here to show and hide
65	x+1/2,y+1/2,z+1/2,-1	{ 1' \| 1/2 1/2 1/2 }
66	-y,-x,-z,-1	{ 2'_1-10 \| 0 }
67	-x+1/2,-y+1/2,-z+1/2,-1	{ -1' \| 1/2 1/2 1/2 }
68	y,x,z,-1	{ m'_1-10 \| 0 }
(1/2,3/4,1/4)' + set click here to show and hide
69	x+1/2,y+3/4,z+1/4,-1	{ 1' \| 1/2 3/4 1/4 }
70	-y,-x+1/4,-z+3/4,-1	{ 2'_1-10 \| 0 1/4 3/4 }
71	-x+1/2,-y+3/4,-z+1/4,-1	{ -1' \| 1/2 3/4 1/4 }
72	y,x+1/4,z+3/4,-1	{ m'_1-10 \| 0 1/4 3/4 }
(1/2,0,0)' + set click here to show and hide
73	x+1/2,y,z,-1	{ 1' \| 1/2 0 0 }
74	-y,-x+1/2,-z+1/2,-1	{ 2'_1-10 \| 0 1/2 1/2 }
75	-x+1/2,-y,-z,-1	{ -1' \| 1/2 0 0 }
76	y,x+1/2,z+1/2,-1	{ m'_1-10 \| 0 1/2 1/2 }
(1/2,1/4,3/4)' + set click here to show and hide
77	x+1/2,y+1/4,z+3/4,-1	{ 1' \| 1/2 1/4 3/4 }
78	-y,-x+3/4,-z+1/4,-1	{ 2'_1-10 \| 0 3/4 1/4 }
79	-x+1/2,-y+1/4,-z+3/4,-1	{ -1' \| 1/2 1/4 3/4 }
80	y,x+3/4,z+1/4,-1	{ m'_1-10 \| 0 3/4 1/4 }
(3/4,1/2,1/4)' + set click here to show and hide
81	x+3/4,y+1/2,z+1/4,-1	{ 1' \| 3/4 1/2 1/4 }
82	-y+1/4,-x,-z+3/4,-1	{ 2'_1-10 \| 1/4 0 3/4 }
83	-x+3/4,-y+1/2,-z+1/4,-1	{ -1' \| 3/4 1/2 1/4 }
84	y+1/4,x,z+3/4,-1	{ m'_1-10 \| 1/4 0 3/4 }
(3/4,3/4,0)' + set click here to show and hide
85	x+3/4,y+3/4,z,-1	{ 1' \| 3/4 3/4 0 }
86	-y+1/4,-x+1/4,-z+1/2,-1	{ 2'_1-10 \| 1/4 1/4 1/2 }
87	-x+3/4,-y+3/4,-z,-1	{ -1' \| 3/4 3/4 0 }
88	y+1/4,x+1/4,z+1/2,-1	{ m'_1-10 \| 1/4 1/4 1/2 }
(3/4,0,3/4)' + set click here to show and hide
89	x+3/4,y,z+3/4,-1	{ 1' \| 3/4 0 3/4 }
90	-y+1/4,-x+1/2,-z+1/4,-1	{ 2'_1-10 \| 1/4 1/2 1/4 }
91	-x+3/4,-y,-z+3/4,-1	{ -1' \| 3/4 0 3/4 }
92	y+1/4,x+1/2,z+1/4,-1	{ m'_1-10 \| 1/4 1/2 1/4 }
(3/4,1/4,1/2)' + set click here to show and hide
93	x+3/4,y+1/4,z+1/2,-1	{ 1' \| 3/4 1/4 1/2 }
94	-y+1/4,-x+3/4,-z,-1	{ 2'_1-10 \| 1/4 3/4 0 }
95	-x+3/4,-y+1/4,-z+1/2,-1	{ -1' \| 3/4 1/4 1/2 }
96	y+1/4,x+3/4,z,-1	{ m'_1-10 \| 1/4 3/4 0 }
(0,1/2,0)' + set click here to show and hide
97	x,y+1/2,z,-1	{ 1' \| 0 1/2 0 }
98	-y+1/2,-x,-z+1/2,-1	{ 2'_1-10 \| 1/2 0 1/2 }
99	-x,-y+1/2,-z,-1	{ -1' \| 0 1/2 0 }
100	y+1/2,x,z+1/2,-1	{ m'_1-10 \| 1/2 0 1/2 }
(0,3/4,3/4)' + set click here to show and hide
101	x,y+3/4,z+3/4,-1	{ 1' \| 0 3/4 3/4 }
102	-y+1/2,-x+1/4,-z+1/4,-1	{ 2'_1-10 \| 1/2 1/4 1/4 }
103	-x,-y+3/4,-z+3/4,-1	{ -1' \| 0 3/4 3/4 }
104	y+1/2,x+1/4,z+1/4,-1	{ m'_1-10 \| 1/2 1/4 1/4 }
(0,0,1/2)' + set click here to show and hide
105	x,y,z+1/2,-1	{ 1' \| 0 0 1/2 }
106	-y+1/2,-x+1/2,-z,-1	{ 2'_1-10 \| 1/2 1/2 0 }
107	-x,-y,-z+1/2,-1	{ -1' \| 0 0 1/2 }
108	y+1/2,x+1/2,z,-1	{ m'_1-10 \| 1/2 1/2 0 }
(0,1/4,1/4)' + set click here to show and hide
109	x,y+1/4,z+1/4,-1	{ 1' \| 0 1/4 1/4 }
110	-y+1/2,-x+3/4,-z+3/4,-1	{ 2'_1-10 \| 1/2 3/4 3/4 }
111	-x,-y+1/4,-z+1/4,-1	{ -1' \| 0 1/4 1/4 }
112	y+1/2,x+3/4,z+3/4,-1	{ m'_1-10 \| 1/2 3/4 3/4 }
(1/4,1/2,3/4)' + set click here to show and hide
113	x+1/4,y+1/2,z+3/4,-1	{ 1' \| 1/4 1/2 3/4 }
114	-y+3/4,-x,-z+1/4,-1	{ 2'_1-10 \| 3/4 0 1/4 }
115	-x+1/4,-y+1/2,-z+3/4,-1	{ -1' \| 1/4 1/2 3/4 }
116	y+3/4,x,z+1/4,-1	{ m'_1-10 \| 3/4 0 1/4 }
(1/4,3/4,1/2)' + set click here to show and hide
117	x+1/4,y+3/4,z+1/2,-1	{ 1' \| 1/4 3/4 1/2 }
118	-y+3/4,-x+1/4,-z,-1	{ 2'_1-10 \| 3/4 1/4 0 }
119	-x+1/4,-y+3/4,-z+1/2,-1	{ -1' \| 1/4 3/4 1/2 }
120	y+3/4,x+1/4,z,-1	{ m'_1-10 \| 3/4 1/4 0 }
(1/4,0,1/4)' + set click here to show and hide
121	x+1/4,y,z+1/4,-1	{ 1' \| 1/4 0 1/4 }
122	-y+3/4,-x+1/2,-z+3/4,-1	{ 2'_1-10 \| 3/4 1/2 3/4 }
123	-x+1/4,-y,-z+1/4,-1	{ -1' \| 1/4 0 1/4 }
124	y+3/4,x+1/2,z+3/4,-1	{ m'_1-10 \| 3/4 1/2 3/4 }
(1/4,1/4,0)' + set click here to show and hide
125	x+1/4,y+1/4,z,-1	{ 1' \| 1/4 1/4 0 }
126	-y+3/4,-x+3/4,-z+1/2,-1	{ 2'_1-10 \| 3/4 3/4 1/2 }
127	-x+1/4,-y+1/4,-z,-1	{ -1' \| 1/4 1/4 0 }
128	y+3/4,x+3/4,z+1/2,-1	{ m'_1-10 \| 3/4 3/4 1/2 }

[Hide]

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-y,-x,-z,+1	2_1-10
3	-x,-y,-z,+1	-1
4	y,x,z,+1	m_1-10
1' + set click here to show and hide
5	x,y,z,-1	1'
6	-y,-x,-z,-1	2'_1-10
7	-x,-y,-z,-1	-1'
8	y,x,z,-1	m'_1-10

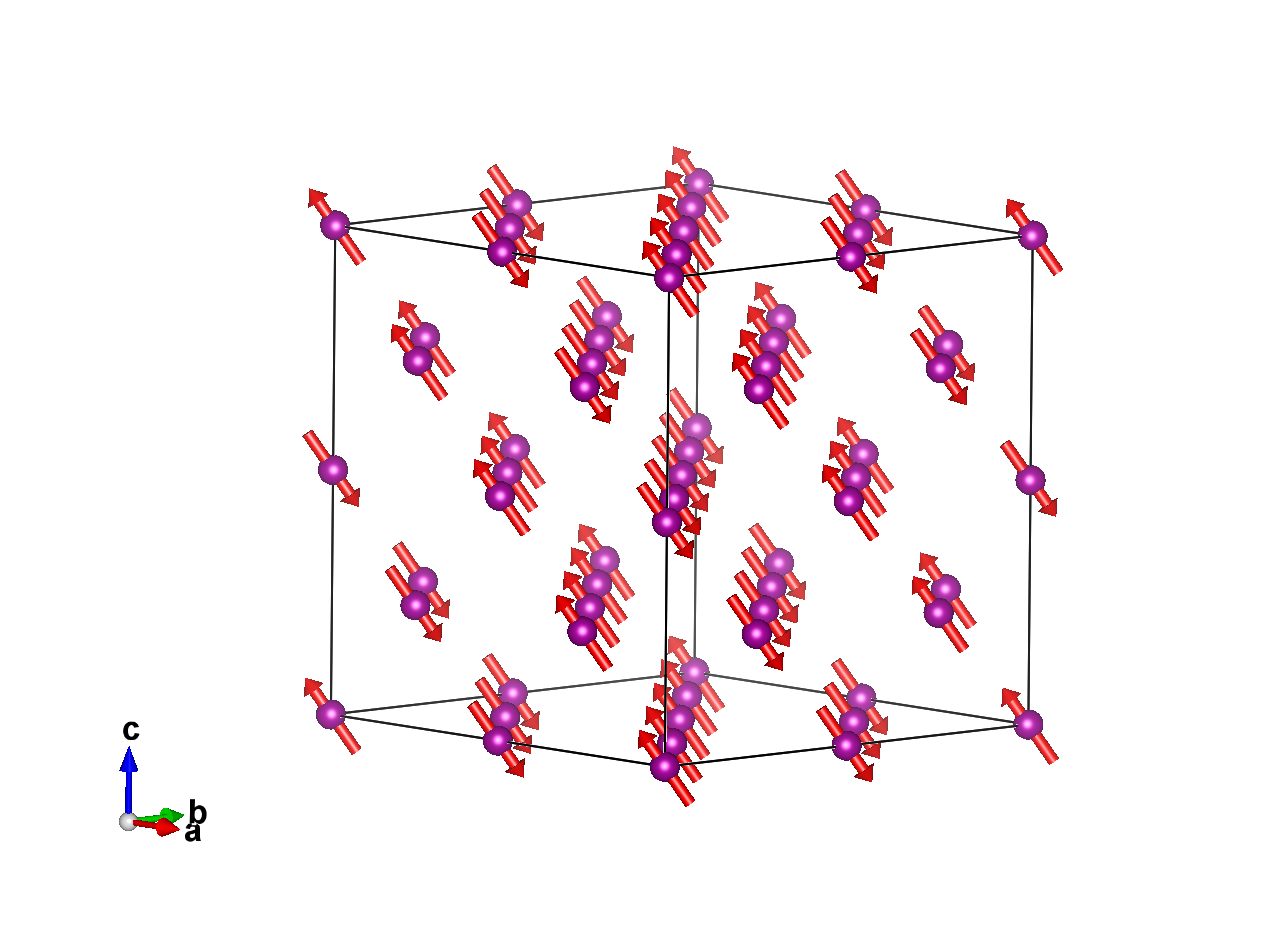

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.00000	0.00000	32	m_x,m_x,m_z	-1.837	-1.837	3.674	4.50

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
W1	W	0.25000	0.25000	0.25000	32
Ba1	Ba	0.12500	0.12500	0.12500	64
O1_1	O	0.13259	0.00000	0.00000	128
O1_2	O	0.00000	0.00000	0.13259	64

[Show all atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(0,1/4,3/4) + set click here to show and hide
2	0.00000	0.25000	0.75000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.50000	0.50000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(0,3/4,1/4) + set click here to show and hide
4	0.00000	0.75000	0.25000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/4,0,3/4) + set click here to show and hide
5	0.25000	0.00000	0.75000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/4,1/4,1/2) + set click here to show and hide
6	0.25000	0.25000	0.50000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/4,1/2,1/4) + set click here to show and hide
7	0.25000	0.50000	0.25000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/4,3/4,0) + set click here to show and hide
8	0.25000	0.75000	0.00000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,0,1/2) + set click here to show and hide
9	0.50000	0.00000	0.50000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,1/4,1/4) + set click here to show and hide
10	0.50000	0.25000	0.25000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,1/2,0) + set click here to show and hide
11	0.50000	0.50000	0.00000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,3/4,3/4) + set click here to show and hide
12	0.50000	0.75000	0.75000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(3/4,0,1/4) + set click here to show and hide
13	0.75000	0.00000	0.25000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(3/4,1/4,0) + set click here to show and hide
14	0.75000	0.25000	0.00000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(3/4,1/2,3/4) + set click here to show and hide
15	0.75000	0.50000	0.75000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(3/4,3/4,1/2) + set click here to show and hide
16	0.75000	0.75000	0.50000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,1/2,1/2)' + set click here to show and hide
17	0.50000	0.50000	0.50000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/2,3/4,1/4)' + set click here to show and hide
18	0.50000	0.75000	0.25000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/2,0,0)' + set click here to show and hide
19	0.50000	0.00000	0.00000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/2,1/4,3/4)' + set click here to show and hide
20	0.50000	0.25000	0.75000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(3/4,1/2,1/4)' + set click here to show and hide
21	0.75000	0.50000	0.25000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(3/4,3/4,0)' + set click here to show and hide
22	0.75000	0.75000	0.00000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(3/4,0,3/4)' + set click here to show and hide
23	0.75000	0.00000	0.75000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(3/4,1/4,1/2)' + set click here to show and hide
24	0.75000	0.25000	0.50000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(0,1/2,0)' + set click here to show and hide
25	0.00000	0.50000	0.00000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(0,3/4,3/4)' + set click here to show and hide
26	0.00000	0.75000	0.75000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(0,0,1/2)' + set click here to show and hide
27	0.00000	0.00000	0.50000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(0,1/4,1/4)' + set click here to show and hide
28	0.00000	0.25000	0.25000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/4,1/2,3/4)' + set click here to show and hide
29	0.25000	0.50000	0.75000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/4,3/4,1/2)' + set click here to show and hide
30	0.25000	0.75000	0.50000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/4,0,1/4)' + set click here to show and hide
31	0.25000	0.00000	0.25000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/4,1/4,0)' + set click here to show and hide
32	0.25000	0.25000	0.00000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom W1:

Atom	x	y	z
1	0.25000	0.25000	0.25000
(0,1/4,3/4) + set click here to show and hide
2	0.25000	0.50000	0.00000
(0,1/2,1/2) + set click here to show and hide
3	0.25000	0.75000	0.75000
(0,3/4,1/4) + set click here to show and hide
4	0.25000	0.00000	0.50000
(1/4,0,3/4) + set click here to show and hide
5	0.50000	0.25000	0.00000
(1/4,1/4,1/2) + set click here to show and hide
6	0.50000	0.50000	0.75000
(1/4,1/2,1/4) + set click here to show and hide
7	0.50000	0.75000	0.50000
(1/4,3/4,0) + set click here to show and hide
8	0.50000	0.00000	0.25000
(1/2,0,1/2) + set click here to show and hide
9	0.75000	0.25000	0.75000
(1/2,1/4,1/4) + set click here to show and hide
10	0.75000	0.50000	0.50000
(1/2,1/2,0) + set click here to show and hide
11	0.75000	0.75000	0.25000
(1/2,3/4,3/4) + set click here to show and hide
12	0.75000	0.00000	0.00000
(3/4,0,1/4) + set click here to show and hide
13	0.00000	0.25000	0.50000
(3/4,1/4,0) + set click here to show and hide
14	0.00000	0.50000	0.25000
(3/4,1/2,3/4) + set click here to show and hide
15	0.00000	0.75000	0.00000
(3/4,3/4,1/2) + set click here to show and hide
16	0.00000	0.00000	0.75000
(1/2,1/2,1/2)' + set click here to show and hide
17	0.75000	0.75000	0.75000
(1/2,3/4,1/4)' + set click here to show and hide
18	0.75000	0.00000	0.50000
(1/2,0,0)' + set click here to show and hide
19	0.75000	0.25000	0.25000
(1/2,1/4,3/4)' + set click here to show and hide
20	0.75000	0.50000	0.00000
(3/4,1/2,1/4)' + set click here to show and hide
21	0.00000	0.75000	0.50000
(3/4,3/4,0)' + set click here to show and hide
22	0.00000	0.00000	0.25000
(3/4,0,3/4)' + set click here to show and hide
23	0.00000	0.25000	0.00000
(3/4,1/4,1/2)' + set click here to show and hide
24	0.00000	0.50000	0.75000
(0,1/2,0)' + set click here to show and hide
25	0.25000	0.75000	0.25000
(0,3/4,3/4)' + set click here to show and hide
26	0.25000	0.00000	0.00000
(0,0,1/2)' + set click here to show and hide
27	0.25000	0.25000	0.75000
(0,1/4,1/4)' + set click here to show and hide
28	0.25000	0.50000	0.50000
(1/4,1/2,3/4)' + set click here to show and hide
29	0.50000	0.75000	0.00000
(1/4,3/4,1/2)' + set click here to show and hide
30	0.50000	0.00000	0.75000
(1/4,0,1/4)' + set click here to show and hide
31	0.50000	0.25000	0.50000
(1/4,1/4,0)' + set click here to show and hide
32	0.50000	0.50000	0.25000

Set of atoms in the unit cell related by symmetry with the atom Ba1:

Atom	x	y	z
1	0.12500	0.12500	0.12500
2	0.37500	0.37500	0.37500
(0,1/4,3/4) + set click here to show and hide
3	0.12500	0.37500	0.87500
4	0.37500	0.62500	0.12500
(0,1/2,1/2) + set click here to show and hide
5	0.12500	0.62500	0.62500
6	0.37500	0.87500	0.87500
(0,3/4,1/4) + set click here to show and hide
7	0.12500	0.87500	0.37500
8	0.37500	0.12500	0.62500
(1/4,0,3/4) + set click here to show and hide
9	0.37500	0.12500	0.87500
10	0.62500	0.37500	0.12500
(1/4,1/4,1/2) + set click here to show and hide
11	0.37500	0.37500	0.62500
12	0.62500	0.62500	0.87500
(1/4,1/2,1/4) + set click here to show and hide
13	0.37500	0.62500	0.37500
14	0.62500	0.87500	0.62500
(1/4,3/4,0) + set click here to show and hide
15	0.37500	0.87500	0.12500
16	0.62500	0.12500	0.37500
(1/2,0,1/2) + set click here to show and hide
17	0.62500	0.12500	0.62500
18	0.87500	0.37500	0.87500
(1/2,1/4,1/4) + set click here to show and hide
19	0.62500	0.37500	0.37500
20	0.87500	0.62500	0.62500
(1/2,1/2,0) + set click here to show and hide
21	0.62500	0.62500	0.12500
22	0.87500	0.87500	0.37500
(1/2,3/4,3/4) + set click here to show and hide
23	0.62500	0.87500	0.87500
24	0.87500	0.12500	0.12500
(3/4,0,1/4) + set click here to show and hide
25	0.87500	0.12500	0.37500
26	0.12500	0.37500	0.62500
(3/4,1/4,0) + set click here to show and hide
27	0.87500	0.37500	0.12500
28	0.12500	0.62500	0.37500
(3/4,1/2,3/4) + set click here to show and hide
29	0.87500	0.62500	0.87500
30	0.12500	0.87500	0.12500
(3/4,3/4,1/2) + set click here to show and hide
31	0.87500	0.87500	0.62500
32	0.12500	0.12500	0.87500
(1/2,1/2,1/2)' + set click here to show and hide
33	0.62500	0.62500	0.62500
34	0.87500	0.87500	0.87500
(1/2,3/4,1/4)' + set click here to show and hide
35	0.62500	0.87500	0.37500
36	0.87500	0.12500	0.62500
(1/2,0,0)' + set click here to show and hide
37	0.62500	0.12500	0.12500
38	0.87500	0.37500	0.37500
(1/2,1/4,3/4)' + set click here to show and hide
39	0.62500	0.37500	0.87500
40	0.87500	0.62500	0.12500
(3/4,1/2,1/4)' + set click here to show and hide
41	0.87500	0.62500	0.37500
42	0.12500	0.87500	0.62500
(3/4,3/4,0)' + set click here to show and hide
43	0.87500	0.87500	0.12500
44	0.12500	0.12500	0.37500
(3/4,0,3/4)' + set click here to show and hide
45	0.87500	0.12500	0.87500
46	0.12500	0.37500	0.12500
(3/4,1/4,1/2)' + set click here to show and hide
47	0.87500	0.37500	0.62500
48	0.12500	0.62500	0.87500
(0,1/2,0)' + set click here to show and hide
49	0.12500	0.62500	0.12500
50	0.37500	0.87500	0.37500
(0,3/4,3/4)' + set click here to show and hide
51	0.12500	0.87500	0.87500
52	0.37500	0.12500	0.12500
(0,0,1/2)' + set click here to show and hide
53	0.12500	0.12500	0.62500
54	0.37500	0.37500	0.87500
(0,1/4,1/4)' + set click here to show and hide
55	0.12500	0.37500	0.37500
56	0.37500	0.62500	0.62500
(1/4,1/2,3/4)' + set click here to show and hide
57	0.37500	0.62500	0.87500
58	0.62500	0.87500	0.12500
(1/4,3/4,1/2)' + set click here to show and hide
59	0.37500	0.87500	0.62500
60	0.62500	0.12500	0.87500
(1/4,0,1/4)' + set click here to show and hide
61	0.37500	0.12500	0.37500
62	0.62500	0.37500	0.62500
(1/4,1/4,0)' + set click here to show and hide
63	0.37500	0.37500	0.12500
64	0.62500	0.62500	0.37500

Set of atoms in the unit cell related by symmetry with the atom O1_1:

Atom	x	y	z
1	0.13259	0.00000	0.00000
2	0.50000	0.36741	0.50000
3	0.86741	0.00000	0.00000
4	0.50000	0.63259	0.50000
(0,1/4,3/4) + set click here to show and hide
5	0.13259	0.25000	0.75000
6	0.50000	0.61741	0.25000
7	0.86741	0.25000	0.75000
8	0.50000	0.88259	0.25000
(0,1/2,1/2) + set click here to show and hide
9	0.13259	0.50000	0.50000
10	0.50000	0.86741	0.00000
11	0.86741	0.50000	0.50000
12	0.50000	0.13259	0.00000
(0,3/4,1/4) + set click here to show and hide
13	0.13259	0.75000	0.25000
14	0.50000	0.11741	0.75000
15	0.86741	0.75000	0.25000
16	0.50000	0.38259	0.75000
(1/4,0,3/4) + set click here to show and hide
17	0.38259	0.00000	0.75000
18	0.75000	0.36741	0.25000
19	0.11741	0.00000	0.75000
20	0.75000	0.63259	0.25000
(1/4,1/4,1/2) + set click here to show and hide
21	0.38259	0.25000	0.50000
22	0.75000	0.61741	0.00000
23	0.11741	0.25000	0.50000
24	0.75000	0.88259	0.00000
(1/4,1/2,1/4) + set click here to show and hide
25	0.38259	0.50000	0.25000
26	0.75000	0.86741	0.75000
27	0.11741	0.50000	0.25000
28	0.75000	0.13259	0.75000
(1/4,3/4,0) + set click here to show and hide
29	0.38259	0.75000	0.00000
30	0.75000	0.11741	0.50000
31	0.11741	0.75000	0.00000
32	0.75000	0.38259	0.50000
(1/2,0,1/2) + set click here to show and hide
33	0.63259	0.00000	0.50000
34	0.00000	0.36741	0.00000
35	0.36741	0.00000	0.50000
36	0.00000	0.63259	0.00000
(1/2,1/4,1/4) + set click here to show and hide
37	0.63259	0.25000	0.25000
38	0.00000	0.61741	0.75000
39	0.36741	0.25000	0.25000
40	0.00000	0.88259	0.75000
(1/2,1/2,0) + set click here to show and hide
41	0.63259	0.50000	0.00000
42	0.00000	0.86741	0.50000
43	0.36741	0.50000	0.00000
44	0.00000	0.13259	0.50000
(1/2,3/4,3/4) + set click here to show and hide
45	0.63259	0.75000	0.75000
46	0.00000	0.11741	0.25000
47	0.36741	0.75000	0.75000
48	0.00000	0.38259	0.25000
(3/4,0,1/4) + set click here to show and hide
49	0.88259	0.00000	0.25000
50	0.25000	0.36741	0.75000
51	0.61741	0.00000	0.25000
52	0.25000	0.63259	0.75000
(3/4,1/4,0) + set click here to show and hide
53	0.88259	0.25000	0.00000
54	0.25000	0.61741	0.50000
55	0.61741	0.25000	0.00000
56	0.25000	0.88259	0.50000
(3/4,1/2,3/4) + set click here to show and hide
57	0.88259	0.50000	0.75000
58	0.25000	0.86741	0.25000
59	0.61741	0.50000	0.75000
60	0.25000	0.13259	0.25000
(3/4,3/4,1/2) + set click here to show and hide
61	0.88259	0.75000	0.50000
62	0.25000	0.11741	0.00000
63	0.61741	0.75000	0.50000
64	0.25000	0.38259	0.00000
(1/2,1/2,1/2)' + set click here to show and hide
65	0.63259	0.50000	0.50000
66	0.00000	0.86741	0.00000
67	0.36741	0.50000	0.50000
68	0.00000	0.13259	0.00000
(1/2,3/4,1/4)' + set click here to show and hide
69	0.63259	0.75000	0.25000
70	0.00000	0.11741	0.75000
71	0.36741	0.75000	0.25000
72	0.00000	0.38259	0.75000
(1/2,0,0)' + set click here to show and hide
73	0.63259	0.00000	0.00000
74	0.00000	0.36741	0.50000
75	0.36741	0.00000	0.00000
76	0.00000	0.63259	0.50000
(1/2,1/4,3/4)' + set click here to show and hide
77	0.63259	0.25000	0.75000
78	0.00000	0.61741	0.25000
79	0.36741	0.25000	0.75000
80	0.00000	0.88259	0.25000
(3/4,1/2,1/4)' + set click here to show and hide
81	0.88259	0.50000	0.25000
82	0.25000	0.86741	0.75000
83	0.61741	0.50000	0.25000
84	0.25000	0.13259	0.75000
(3/4,3/4,0)' + set click here to show and hide
85	0.88259	0.75000	0.00000
86	0.25000	0.11741	0.50000
87	0.61741	0.75000	0.00000
88	0.25000	0.38259	0.50000
(3/4,0,3/4)' + set click here to show and hide
89	0.88259	0.00000	0.75000
90	0.25000	0.36741	0.25000
91	0.61741	0.00000	0.75000
92	0.25000	0.63259	0.25000
(3/4,1/4,1/2)' + set click here to show and hide
93	0.88259	0.25000	0.50000
94	0.25000	0.61741	0.00000
95	0.61741	0.25000	0.50000
96	0.25000	0.88259	0.00000
(0,1/2,0)' + set click here to show and hide
97	0.13259	0.50000	0.00000
98	0.50000	0.86741	0.50000
99	0.86741	0.50000	0.00000
100	0.50000	0.13259	0.50000
(0,3/4,3/4)' + set click here to show and hide
101	0.13259	0.75000	0.75000
102	0.50000	0.11741	0.25000
103	0.86741	0.75000	0.75000
104	0.50000	0.38259	0.25000
(0,0,1/2)' + set click here to show and hide
105	0.13259	0.00000	0.50000
106	0.50000	0.36741	0.00000
107	0.86741	0.00000	0.50000
108	0.50000	0.63259	0.00000
(0,1/4,1/4)' + set click here to show and hide
109	0.13259	0.25000	0.25000
110	0.50000	0.61741	0.75000
111	0.86741	0.25000	0.25000
112	0.50000	0.88259	0.75000
(1/4,1/2,3/4)' + set click here to show and hide
113	0.38259	0.50000	0.75000
114	0.75000	0.86741	0.25000
115	0.11741	0.50000	0.75000
116	0.75000	0.13259	0.25000
(1/4,3/4,1/2)' + set click here to show and hide
117	0.38259	0.75000	0.50000
118	0.75000	0.11741	0.00000
119	0.11741	0.75000	0.50000
120	0.75000	0.38259	0.00000
(1/4,0,1/4)' + set click here to show and hide
121	0.38259	0.00000	0.25000
122	0.75000	0.36741	0.75000
123	0.11741	0.00000	0.25000
124	0.75000	0.63259	0.75000
(1/4,1/4,0)' + set click here to show and hide
125	0.38259	0.25000	0.00000
126	0.75000	0.61741	0.50000
127	0.11741	0.25000	0.00000
128	0.75000	0.88259	0.50000

Set of atoms in the unit cell related by symmetry with the atom O1_2:

Atom	x	y	z
1	0.00000	0.00000	0.13259
2	0.50000	0.50000	0.36741
(0,1/4,3/4) + set click here to show and hide
3	0.00000	0.25000	0.88259
4	0.50000	0.75000	0.11741
(0,1/2,1/2) + set click here to show and hide
5	0.00000	0.50000	0.63259
6	0.50000	0.00000	0.86741
(0,3/4,1/4) + set click here to show and hide
7	0.00000	0.75000	0.38259
8	0.50000	0.25000	0.61741
(1/4,0,3/4) + set click here to show and hide
9	0.25000	0.00000	0.88259
10	0.75000	0.50000	0.11741
(1/4,1/4,1/2) + set click here to show and hide
11	0.25000	0.25000	0.63259
12	0.75000	0.75000	0.86741
(1/4,1/2,1/4) + set click here to show and hide
13	0.25000	0.50000	0.38259
14	0.75000	0.00000	0.61741
(1/4,3/4,0) + set click here to show and hide
15	0.25000	0.75000	0.13259
16	0.75000	0.25000	0.36741
(1/2,0,1/2) + set click here to show and hide
17	0.50000	0.00000	0.63259
18	0.00000	0.50000	0.86741
(1/2,1/4,1/4) + set click here to show and hide
19	0.50000	0.25000	0.38259
20	0.00000	0.75000	0.61741
(1/2,1/2,0) + set click here to show and hide
21	0.50000	0.50000	0.13259
22	0.00000	0.00000	0.36741
(1/2,3/4,3/4) + set click here to show and hide
23	0.50000	0.75000	0.88259
24	0.00000	0.25000	0.11741
(3/4,0,1/4) + set click here to show and hide
25	0.75000	0.00000	0.38259
26	0.25000	0.50000	0.61741
(3/4,1/4,0) + set click here to show and hide
27	0.75000	0.25000	0.13259
28	0.25000	0.75000	0.36741
(3/4,1/2,3/4) + set click here to show and hide
29	0.75000	0.50000	0.88259
30	0.25000	0.00000	0.11741
(3/4,3/4,1/2) + set click here to show and hide
31	0.75000	0.75000	0.63259
32	0.25000	0.25000	0.86741
(1/2,1/2,1/2)' + set click here to show and hide
33	0.50000	0.50000	0.63259
34	0.00000	0.00000	0.86741
(1/2,3/4,1/4)' + set click here to show and hide
35	0.50000	0.75000	0.38259
36	0.00000	0.25000	0.61741
(1/2,0,0)' + set click here to show and hide
37	0.50000	0.00000	0.13259
38	0.00000	0.50000	0.36741
(1/2,1/4,3/4)' + set click here to show and hide
39	0.50000	0.25000	0.88259
40	0.00000	0.75000	0.11741
(3/4,1/2,1/4)' + set click here to show and hide
41	0.75000	0.50000	0.38259
42	0.25000	0.00000	0.61741
(3/4,3/4,0)' + set click here to show and hide
43	0.75000	0.75000	0.13259
44	0.25000	0.25000	0.36741
(3/4,0,3/4)' + set click here to show and hide
45	0.75000	0.00000	0.88259
46	0.25000	0.50000	0.11741
(3/4,1/4,1/2)' + set click here to show and hide
47	0.75000	0.25000	0.63259
48	0.25000	0.75000	0.86741
(0,1/2,0)' + set click here to show and hide
49	0.00000	0.50000	0.13259
50	0.50000	0.00000	0.36741
(0,3/4,3/4)' + set click here to show and hide
51	0.00000	0.75000	0.88259
52	0.50000	0.25000	0.11741
(0,0,1/2)' + set click here to show and hide
53	0.00000	0.00000	0.63259
54	0.50000	0.50000	0.86741
(0,1/4,1/4)' + set click here to show and hide
55	0.00000	0.25000	0.38259
56	0.50000	0.75000	0.61741
(1/4,1/2,3/4)' + set click here to show and hide
57	0.25000	0.50000	0.88259
58	0.75000	0.00000	0.11741
(1/4,3/4,1/2)' + set click here to show and hide
59	0.25000	0.75000	0.63259
60	0.75000	0.25000	0.86741
(1/4,0,1/4)' + set click here to show and hide
61	0.25000	0.00000	0.38259
62	0.75000	0.50000	0.61741
(1/4,1/4,0)' + set click here to show and hide
63	0.25000	0.25000	0.13259
64	0.75000	0.75000	0.36741

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.00000	0.00000	32	m_x,m_x,m_z	-1.837	-1.837	3.674	4.50

[Show all magnetic atoms in unit cell and their moment relations]

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(0,1/4,3/4) + set click here to show and hide
2	0.00000	0.25000	0.75000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(0,1/2,1/2) + set click here to show and hide
3	0.00000	0.50000	0.50000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(0,3/4,1/4) + set click here to show and hide
4	0.00000	0.75000	0.25000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/4,0,3/4) + set click here to show and hide
5	0.25000	0.00000	0.75000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/4,1/4,1/2) + set click here to show and hide
6	0.25000	0.25000	0.50000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/4,1/2,1/4) + set click here to show and hide
7	0.25000	0.50000	0.25000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/4,3/4,0) + set click here to show and hide
8	0.25000	0.75000	0.00000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,0,1/2) + set click here to show and hide
9	0.50000	0.00000	0.50000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,1/4,1/4) + set click here to show and hide
10	0.50000	0.25000	0.25000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,1/2,0) + set click here to show and hide
11	0.50000	0.50000	0.00000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,3/4,3/4) + set click here to show and hide
12	0.50000	0.75000	0.75000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(3/4,0,1/4) + set click here to show and hide
13	0.75000	0.00000	0.25000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(3/4,1/4,0) + set click here to show and hide
14	0.75000	0.25000	0.00000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(3/4,1/2,3/4) + set click here to show and hide
15	0.75000	0.50000	0.75000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(3/4,3/4,1/2) + set click here to show and hide
16	0.75000	0.75000	0.50000	m_x,m_x,m_z	-1.83700	-1.83700	3.67400
(1/2,1/2,1/2)' + set click here to show and hide
17	0.50000	0.50000	0.50000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/2,3/4,1/4)' + set click here to show and hide
18	0.50000	0.75000	0.25000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/2,0,0)' + set click here to show and hide
19	0.50000	0.00000	0.00000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/2,1/4,3/4)' + set click here to show and hide
20	0.50000	0.25000	0.75000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(3/4,1/2,1/4)' + set click here to show and hide
21	0.75000	0.50000	0.25000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(3/4,3/4,0)' + set click here to show and hide
22	0.75000	0.75000	0.00000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(3/4,0,3/4)' + set click here to show and hide
23	0.75000	0.00000	0.75000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(3/4,1/4,1/2)' + set click here to show and hide
24	0.75000	0.25000	0.50000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(0,1/2,0)' + set click here to show and hide
25	0.00000	0.50000	0.00000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(0,3/4,3/4)' + set click here to show and hide
26	0.00000	0.75000	0.75000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(0,0,1/2)' + set click here to show and hide
27	0.00000	0.00000	0.50000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(0,1/4,1/4)' + set click here to show and hide
28	0.00000	0.25000	0.25000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/4,1/2,3/4)' + set click here to show and hide
29	0.25000	0.50000	0.75000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/4,3/4,1/2)' + set click here to show and hide
30	0.25000	0.75000	0.50000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/4,0,1/4)' + set click here to show and hide
31	0.25000	0.00000	0.25000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400
(1/4,1/4,0)' + set click here to show and hide
32	0.25000	0.25000	0.00000	-m_x,-m_x,-m_z	1.83700	1.83700	-3.67400

[Hide]

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mL3+	8	2	special	primary	1
mL2+	4	1		secondary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files

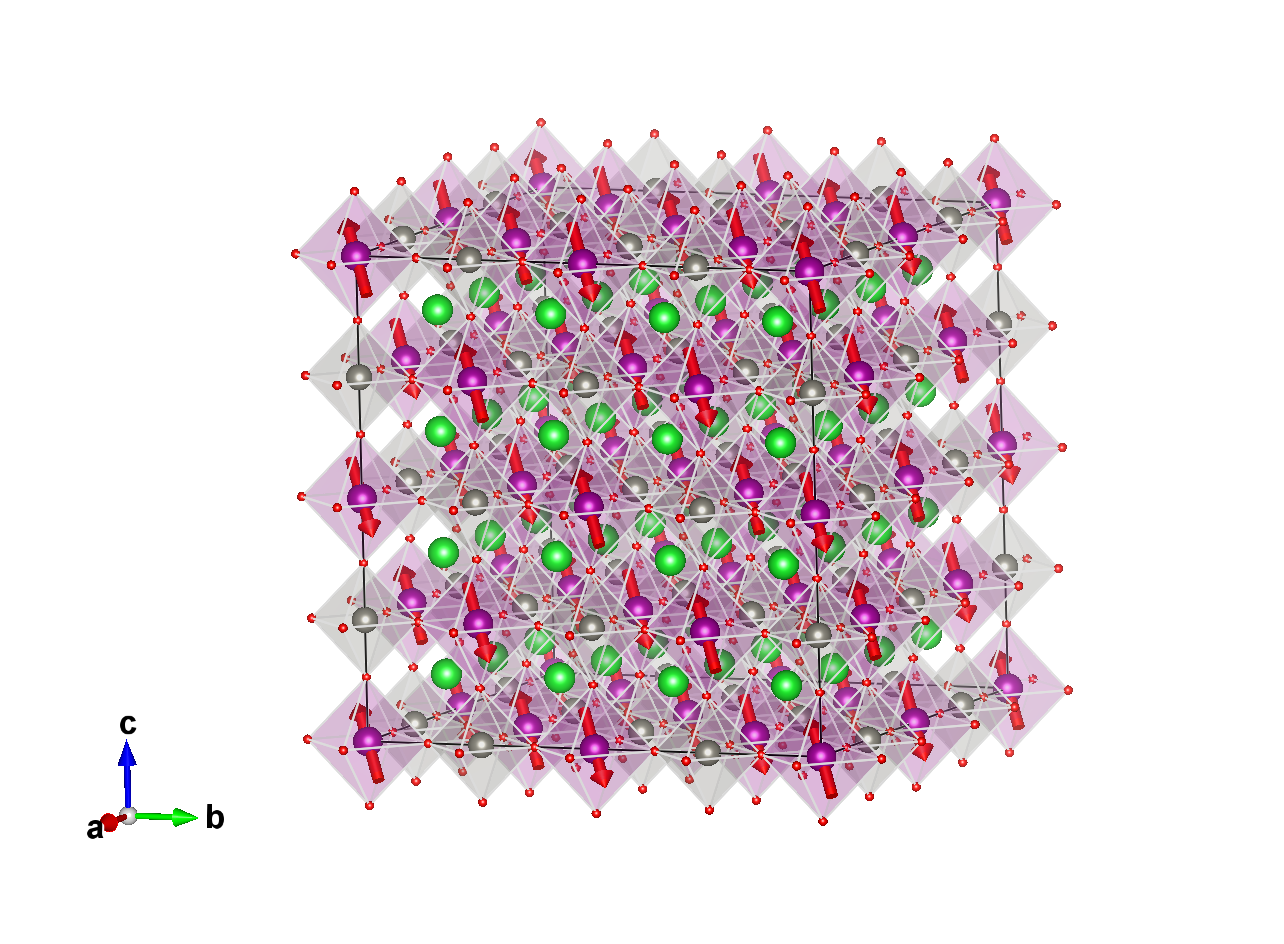

Ba₂MnWO₆ (#1.707)

MAGNDATA: A Collection of magnetic structures with portable cif-type files

Ba2MnWO6 (#1.707)

Ba₂MnWO₆ (#1.707)
