Collection of Magnetic Structures
|
MAGNDATA
Collection of Magnetic Structures
|
 |

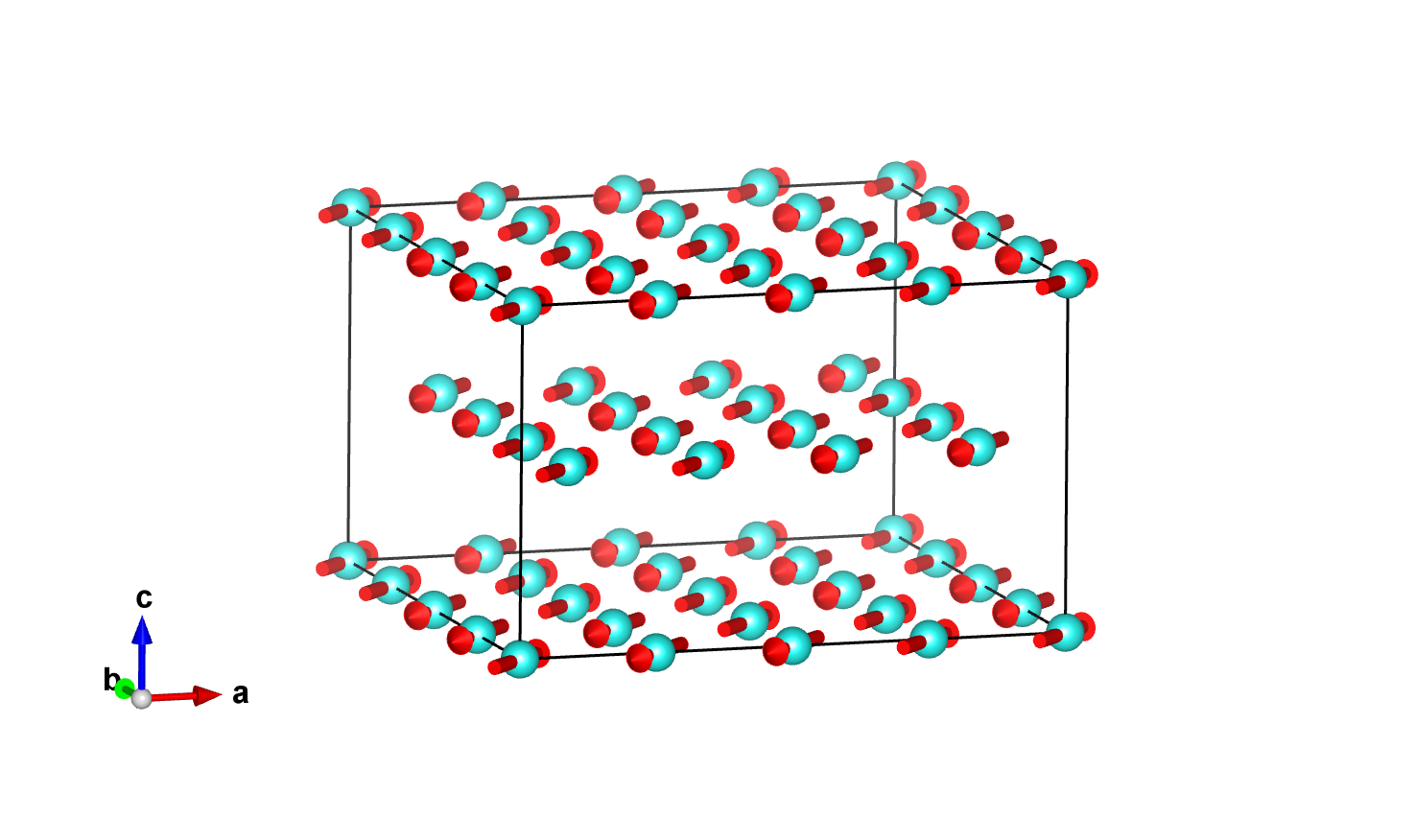

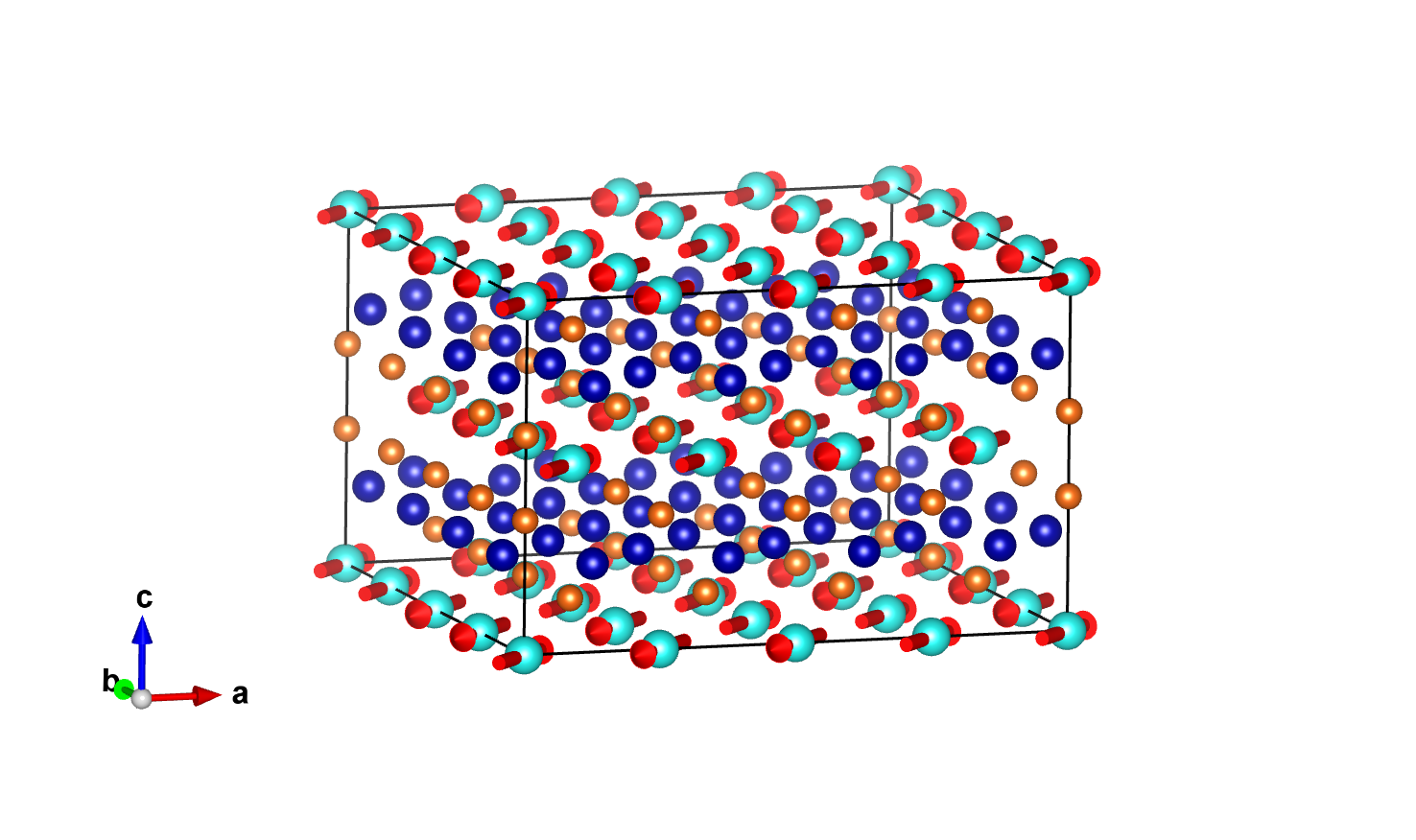

 Magnetic structure with all atoms |  Magnetic structure with only magnetic atoms |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | { 1 | 0 } | |
| 2 | -x+1/4,-y,z,+1 | { 2001 | 1/4 0 0 } | |
| 3 | -y+7/8,-x+7/8,-z+1/2,+1 | { 21-10 | 7/8 7/8 1/2 } | |
| 4 | y+1/2,x+1/2,-z,+1 | { 2110 | 1/2 1/2 0 } | |
| 5 | -x+1/2,-y+1/4,-z,+1 | { -1 | 1/2 1/4 0 } | |
| 6 | x+3/4,y+3/4,-z,+1 | { m001 | 3/4 3/4 0 } | |
| 7 | y+5/8,x+3/8,z+1/2,+1 | { m1-10 | 5/8 3/8 1/2 } | |
| 8 | -y+3/4,-x,z,+1 | { m110 | 3/4 0 0 } | |
| (1/8,3/8,1/2) + set click here to show and hide | |||
| 9 | x+1/8,y+3/8,z+1/2,+1 | { 1 | 1/8 3/8 1/2 } | |
| 10 | -x+3/8,-y+3/8,z+1/2,+1 | { 2001 | 3/8 3/8 1/2 } | |
| 11 | -y,-x+1/4,-z,+1 | { 21-10 | 0 1/4 0 } | |
| 12 | y+5/8,x+7/8,-z+1/2,+1 | { 2110 | 5/8 7/8 1/2 } | |
| 13 | -x+5/8,-y+5/8,-z+1/2,+1 | { -1 | 5/8 5/8 1/2 } | |
| 14 | x+7/8,y+1/8,-z+1/2,+1 | { m001 | 7/8 1/8 1/2 } | |
| 15 | y+3/4,x+3/4,z,+1 | { m1-10 | 3/4 3/4 0 } | |
| 16 | -y+7/8,-x+3/8,z+1/2,+1 | { m110 | 7/8 3/8 1/2 } | |
| (1/4,3/4,0) + set click here to show and hide | |||
| 17 | x+1/4,y+3/4,z,+1 | { 1 | 1/4 3/4 0 } | |
| 18 | -x+1/2,-y+3/4,z,+1 | { 2001 | 1/2 3/4 0 } | |
| 19 | -y+1/8,-x+5/8,-z+1/2,+1 | { 21-10 | 1/8 5/8 1/2 } | |
| 20 | y+3/4,x+1/4,-z,+1 | { 2110 | 3/4 1/4 0 } | |
| 21 | -x+3/4,-y,-z,+1 | { -1 | 3/4 0 0 } | |
| 22 | x,y+1/2,-z,+1 | { m001 | 0 1/2 0 } | |
| 23 | y+7/8,x+1/8,z+1/2,+1 | { m1-10 | 7/8 1/8 1/2 } | |
| 24 | -y,-x+3/4,z,+1 | { m110 | 0 3/4 0 } | |
| (3/8,1/8,1/2) + set click here to show and hide | |||
| 25 | x+3/8,y+1/8,z+1/2,+1 | { 1 | 3/8 1/8 1/2 } | |
| 26 | -x+5/8,-y+1/8,z+1/2,+1 | { 2001 | 5/8 1/8 1/2 } | |
| 27 | -y+1/4,-x,-z,+1 | { 21-10 | 1/4 0 0 } | |
| 28 | y+7/8,x+5/8,-z+1/2,+1 | { 2110 | 7/8 5/8 1/2 } | |
| 29 | -x+7/8,-y+3/8,-z+1/2,+1 | { -1 | 7/8 3/8 1/2 } | |
| 30 | x+1/8,y+7/8,-z+1/2,+1 | { m001 | 1/8 7/8 1/2 } | |
| 31 | y,x+1/2,z,+1 | { m1-10 | 0 1/2 0 } | |
| 32 | -y+1/8,-x+1/8,z+1/2,+1 | { m110 | 1/8 1/8 1/2 } | |
| (1/2,1/2,0) + set click here to show and hide | |||
| 33 | x+1/2,y+1/2,z,+1 | { 1 | 1/2 1/2 0 } | |
| 34 | -x+3/4,-y+1/2,z,+1 | { 2001 | 3/4 1/2 0 } | |
| 35 | -y+3/8,-x+3/8,-z+1/2,+1 | { 21-10 | 3/8 3/8 1/2 } | |
| 36 | y,x,-z,+1 | { 2110 | 0 } | |
| 37 | -x,-y+3/4,-z,+1 | { -1 | 0 3/4 0 } | |
| 38 | x+1/4,y+1/4,-z,+1 | { m001 | 1/4 1/4 0 } | |
| 39 | y+1/8,x+7/8,z+1/2,+1 | { m1-10 | 1/8 7/8 1/2 } | |
| 40 | -y+1/4,-x+1/2,z,+1 | { m110 | 1/4 1/2 0 } | |
| (5/8,7/8,1/2) + set click here to show and hide | |||
| 41 | x+5/8,y+7/8,z+1/2,+1 | { 1 | 5/8 7/8 1/2 } | |
| 42 | -x+7/8,-y+7/8,z+1/2,+1 | { 2001 | 7/8 7/8 1/2 } | |
| 43 | -y+1/2,-x+3/4,-z,+1 | { 21-10 | 1/2 3/4 0 } | |
| 44 | y+1/8,x+3/8,-z+1/2,+1 | { 2110 | 1/8 3/8 1/2 } | |
| 45 | -x+1/8,-y+1/8,-z+1/2,+1 | { -1 | 1/8 1/8 1/2 } | |
| 46 | x+3/8,y+5/8,-z+1/2,+1 | { m001 | 3/8 5/8 1/2 } | |
| 47 | y+1/4,x+1/4,z,+1 | { m1-10 | 1/4 1/4 0 } | |
| 48 | -y+3/8,-x+7/8,z+1/2,+1 | { m110 | 3/8 7/8 1/2 } | |
| (3/4,1/4,0) + set click here to show and hide | |||
| 49 | x+3/4,y+1/4,z,+1 | { 1 | 3/4 1/4 0 } | |
| 50 | -x,-y+1/4,z,+1 | { 2001 | 0 1/4 0 } | |
| 51 | -y+5/8,-x+1/8,-z+1/2,+1 | { 21-10 | 5/8 1/8 1/2 } | |
| 52 | y+1/4,x+3/4,-z,+1 | { 2110 | 1/4 3/4 0 } | |
| 53 | -x+1/4,-y+1/2,-z,+1 | { -1 | 1/4 1/2 0 } | |
| 54 | x+1/2,y,-z,+1 | { m001 | 1/2 0 0 } | |
| 55 | y+3/8,x+5/8,z+1/2,+1 | { m1-10 | 3/8 5/8 1/2 } | |
| 56 | -y+1/2,-x+1/4,z,+1 | { m110 | 1/2 1/4 0 } | |
| (7/8,5/8,1/2) + set click here to show and hide | |||
| 57 | x+7/8,y+5/8,z+1/2,+1 | { 1 | 7/8 5/8 1/2 } | |
| 58 | -x+1/8,-y+5/8,z+1/2,+1 | { 2001 | 1/8 5/8 1/2 } | |
| 59 | -y+3/4,-x+1/2,-z,+1 | { 21-10 | 3/4 1/2 0 } | |
| 60 | y+3/8,x+1/8,-z+1/2,+1 | { 2110 | 3/8 1/8 1/2 } | |
| 61 | -x+3/8,-y+7/8,-z+1/2,+1 | { -1 | 3/8 7/8 1/2 } | |
| 62 | x+5/8,y+3/8,-z+1/2,+1 | { m001 | 5/8 3/8 1/2 } | |
| 63 | y+1/2,x,z,+1 | { m1-10 | 1/2 0 0 } | |
| 64 | -y+5/8,-x+5/8,z+1/2,+1 | { m110 | 5/8 5/8 1/2 } | |
| (3/4,3/4,0)' + set click here to show and hide | |||
| 65 | x+3/4,y+3/4,z,-1 | { 1' | 3/4 3/4 0 } | |
| 66 | -x,-y+3/4,z,-1 | { 2'001 | 0 3/4 0 } | |
| 67 | -y+5/8,-x+5/8,-z+1/2,-1 | { 2'1-10 | 5/8 5/8 1/2 } | |
| 68 | y+1/4,x+1/4,-z,-1 | { 2'110 | 1/4 1/4 0 } | |
| 69 | -x+1/4,-y,-z,-1 | { -1' | 1/4 0 0 } | |
| 70 | x+1/2,y+1/2,-z,-1 | { m'001 | 1/2 1/2 0 } | |
| 71 | y+3/8,x+1/8,z+1/2,-1 | { m'1-10 | 3/8 1/8 1/2 } | |
| 72 | -y+1/2,-x+3/4,z,-1 | { m'110 | 1/2 3/4 0 } | |
| (7/8,1/8,1/2)' + set click here to show and hide | |||
| 73 | x+7/8,y+1/8,z+1/2,-1 | { 1' | 7/8 1/8 1/2 } | |
| 74 | -x+1/8,-y+1/8,z+1/2,-1 | { 2'001 | 1/8 1/8 1/2 } | |
| 75 | -y+3/4,-x,-z,-1 | { 2'1-10 | 3/4 0 0 } | |
| 76 | y+3/8,x+5/8,-z+1/2,-1 | { 2'110 | 3/8 5/8 1/2 } | |
| 77 | -x+3/8,-y+3/8,-z+1/2,-1 | { -1' | 3/8 3/8 1/2 } | |
| 78 | x+5/8,y+7/8,-z+1/2,-1 | { m'001 | 5/8 7/8 1/2 } | |
| 79 | y+1/2,x+1/2,z,-1 | { m'1-10 | 1/2 1/2 0 } | |
| 80 | -y+5/8,-x+1/8,z+1/2,-1 | { m'110 | 5/8 1/8 1/2 } | |
| (0,1/2,0)' + set click here to show and hide | |||
| 81 | x,y+1/2,z,-1 | { 1' | 0 1/2 0 } | |
| 82 | -x+1/4,-y+1/2,z,-1 | { 2'001 | 1/4 1/2 0 } | |
| 83 | -y+7/8,-x+3/8,-z+1/2,-1 | { 2'1-10 | 7/8 3/8 1/2 } | |
| 84 | y+1/2,x,-z,-1 | { 2'110 | 1/2 0 0 } | |
| 85 | -x+1/2,-y+3/4,-z,-1 | { -1' | 1/2 3/4 0 } | |
| 86 | x+3/4,y+1/4,-z,-1 | { m'001 | 3/4 1/4 0 } | |
| 87 | y+5/8,x+7/8,z+1/2,-1 | { m'1-10 | 5/8 7/8 1/2 } | |
| 88 | -y+3/4,-x+1/2,z,-1 | { m'110 | 3/4 1/2 0 } | |
| (1/8,7/8,1/2)' + set click here to show and hide | |||
| 89 | x+1/8,y+7/8,z+1/2,-1 | { 1' | 1/8 7/8 1/2 } | |
| 90 | -x+3/8,-y+7/8,z+1/2,-1 | { 2'001 | 3/8 7/8 1/2 } | |
| 91 | -y,-x+3/4,-z,-1 | { 2'1-10 | 0 3/4 0 } | |
| 92 | y+5/8,x+3/8,-z+1/2,-1 | { 2'110 | 5/8 3/8 1/2 } | |
| 93 | -x+5/8,-y+1/8,-z+1/2,-1 | { -1' | 5/8 1/8 1/2 } | |
| 94 | x+7/8,y+5/8,-z+1/2,-1 | { m'001 | 7/8 5/8 1/2 } | |
| 95 | y+3/4,x+1/4,z,-1 | { m'1-10 | 3/4 1/4 0 } | |
| 96 | -y+7/8,-x+7/8,z+1/2,-1 | { m'110 | 7/8 7/8 1/2 } | |
| (1/4,1/4,0)' + set click here to show and hide | |||
| 97 | x+1/4,y+1/4,z,-1 | { 1' | 1/4 1/4 0 } | |
| 98 | -x+1/2,-y+1/4,z,-1 | { 2'001 | 1/2 1/4 0 } | |
| 99 | -y+1/8,-x+1/8,-z+1/2,-1 | { 2'1-10 | 1/8 1/8 1/2 } | |
| 100 | y+3/4,x+3/4,-z,-1 | { 2'110 | 3/4 3/4 0 } | |
| 101 | -x+3/4,-y+1/2,-z,-1 | { -1' | 3/4 1/2 0 } | |
| 102 | x,y,-z,-1 | { m'001 | 0 } | |
| 103 | y+7/8,x+5/8,z+1/2,-1 | { m'1-10 | 7/8 5/8 1/2 } | |
| 104 | -y,-x+1/4,z,-1 | { m'110 | 0 1/4 0 } | |
| (3/8,5/8,1/2)' + set click here to show and hide | |||
| 105 | x+3/8,y+5/8,z+1/2,-1 | { 1' | 3/8 5/8 1/2 } | |
| 106 | -x+5/8,-y+5/8,z+1/2,-1 | { 2'001 | 5/8 5/8 1/2 } | |
| 107 | -y+1/4,-x+1/2,-z,-1 | { 2'1-10 | 1/4 1/2 0 } | |
| 108 | y+7/8,x+1/8,-z+1/2,-1 | { 2'110 | 7/8 1/8 1/2 } | |
| 109 | -x+7/8,-y+7/8,-z+1/2,-1 | { -1' | 7/8 7/8 1/2 } | |
| 110 | x+1/8,y+3/8,-z+1/2,-1 | { m'001 | 1/8 3/8 1/2 } | |
| 111 | y,x,z,-1 | { m'1-10 | 0 } | |
| 112 | -y+1/8,-x+5/8,z+1/2,-1 | { m'110 | 1/8 5/8 1/2 } | |
| (1/2,0,0)' + set click here to show and hide | |||
| 113 | x+1/2,y,z,-1 | { 1' | 1/2 0 0 } | |
| 114 | -x+3/4,-y,z,-1 | { 2'001 | 3/4 0 0 } | |
| 115 | -y+3/8,-x+7/8,-z+1/2,-1 | { 2'1-10 | 3/8 7/8 1/2 } | |
| 116 | y,x+1/2,-z,-1 | { 2'110 | 0 1/2 0 } | |
| 117 | -x,-y+1/4,-z,-1 | { -1' | 0 1/4 0 } | |
| 118 | x+1/4,y+3/4,-z,-1 | { m'001 | 1/4 3/4 0 } | |
| 119 | y+1/8,x+3/8,z+1/2,-1 | { m'1-10 | 1/8 3/8 1/2 } | |
| 120 | -y+1/4,-x,z,-1 | { m'110 | 1/4 0 0 } | |
| (5/8,3/8,1/2)' + set click here to show and hide | |||
| 121 | x+5/8,y+3/8,z+1/2,-1 | { 1' | 5/8 3/8 1/2 } | |
| 122 | -x+7/8,-y+3/8,z+1/2,-1 | { 2'001 | 7/8 3/8 1/2 } | |
| 123 | -y+1/2,-x+1/4,-z,-1 | { 2'1-10 | 1/2 1/4 0 } | |
| 124 | y+1/8,x+7/8,-z+1/2,-1 | { 2'110 | 1/8 7/8 1/2 } | |
| 125 | -x+1/8,-y+5/8,-z+1/2,-1 | { -1' | 1/8 5/8 1/2 } | |
| 126 | x+3/8,y+1/8,-z+1/2,-1 | { m'001 | 3/8 1/8 1/2 } | |
| 127 | y+1/4,x+3/4,z,-1 | { m'1-10 | 1/4 3/4 0 } | |
| 128 | -y+3/8,-x+3/8,z+1/2,-1 | { m'110 | 3/8 3/8 1/2 } | |
|
|
| N | (x,y,z) | Seitz notation | |
|---|---|---|---|
| 1 | x,y,z,+1 | 1 | |
| 2 | -x,-y,z,+1 | 2001 | |
| 3 | -y,-x,-z,+1 | 21-10 | |
| 4 | y,x,-z,+1 | 2110 | |
| 5 | -x,-y,-z,+1 | -1 | |
| 6 | x,y,-z,+1 | m001 | |
| 7 | y,x,z,+1 | m1-10 | |
| 8 | -y,-x,z,+1 | m110 | |
| 1' + set click here to show and hide | |||
| 9 | x,y,z,-1 | 1' | |
| 10 | -x,-y,z,-1 | 2'001 | |
| 11 | -y,-x,-z,-1 | 2'1-10 | |
| 12 | y,x,-z,-1 | 2'110 | |
| 13 | -x,-y,-z,-1 | -1' | |
| 14 | x,y,-z,-1 | m'001 | |
| 15 | y,x,z,-1 | m'1-10 | |
| 16 | -y,-x,z,-1 | m'110 | |
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Yb1 | Yb | 0.00000 | 0.00000 | 0.00000 | 32 | mx,mx,0 | 1. | 1. | 0.0 | 1.41 |
| Label | Atom type | x | y | z | Multiplicity |
|---|---|---|---|---|---|
| Co1_1 | Co | 0.00000 | 0.12500 | 0.25000 | 32 |
| Co1_2 | Co | 0.00000 | 0.37500 | 0.25000 | 32 |
| Si1 | Si | 0.00000 | 0.00000 | 0.38000 | 64 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Yb1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 2 | 0.25000 | 0.00000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (1/8,3/8,1/2) + set click here to show and hide | |||||||
| 3 | 0.12500 | 0.37500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 4 | 0.37500 | 0.37500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.75000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 6 | 0.50000 | 0.75000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (3/8,1/8,1/2) + set click here to show and hide | |||||||
| 7 | 0.37500 | 0.12500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 8 | 0.62500 | 0.12500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.50000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 10 | 0.75000 | 0.50000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (5/8,7/8,1/2) + set click here to show and hide | |||||||
| 11 | 0.62500 | 0.87500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 12 | 0.87500 | 0.87500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.25000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 14 | 0.00000 | 0.25000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (7/8,5/8,1/2) + set click here to show and hide | |||||||
| 15 | 0.87500 | 0.62500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 16 | 0.12500 | 0.62500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 17 | 0.75000 | 0.75000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 18 | 0.00000 | 0.75000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (7/8,1/8,1/2)' + set click here to show and hide | |||||||
| 19 | 0.87500 | 0.12500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 20 | 0.12500 | 0.12500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.00000 | 0.50000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 22 | 0.25000 | 0.50000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (1/8,7/8,1/2)' + set click here to show and hide | |||||||
| 23 | 0.12500 | 0.87500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 24 | 0.37500 | 0.87500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 25 | 0.25000 | 0.25000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 26 | 0.50000 | 0.25000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (3/8,5/8,1/2)' + set click here to show and hide | |||||||
| 27 | 0.37500 | 0.62500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 28 | 0.62500 | 0.62500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.00000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 30 | 0.75000 | 0.00000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (5/8,3/8,1/2)' + set click here to show and hide | |||||||
| 31 | 0.62500 | 0.37500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 32 | 0.87500 | 0.37500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
Set of atoms in the unit cell related by symmetry with the atom Co1_1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.12500 | 0.25000 | ||||
| 2 | 0.50000 | 0.12500 | 0.75000 | ||||
| (1/8,3/8,1/2) + set click here to show and hide | |||||||
| 3 | 0.12500 | 0.50000 | 0.75000 | ||||
| 4 | 0.62500 | 0.50000 | 0.25000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.87500 | 0.25000 | ||||
| 6 | 0.75000 | 0.87500 | 0.75000 | ||||
| (3/8,1/8,1/2) + set click here to show and hide | |||||||
| 7 | 0.37500 | 0.25000 | 0.75000 | ||||
| 8 | 0.87500 | 0.25000 | 0.25000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.62500 | 0.25000 | ||||
| 10 | 0.00000 | 0.62500 | 0.75000 | ||||
| (5/8,7/8,1/2) + set click here to show and hide | |||||||
| 11 | 0.62500 | 0.00000 | 0.75000 | ||||
| 12 | 0.12500 | 0.00000 | 0.25000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.37500 | 0.25000 | ||||
| 14 | 0.25000 | 0.37500 | 0.75000 | ||||
| (7/8,5/8,1/2) + set click here to show and hide | |||||||
| 15 | 0.87500 | 0.75000 | 0.75000 | ||||
| 16 | 0.37500 | 0.75000 | 0.25000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 17 | 0.75000 | 0.87500 | 0.25000 | ||||
| 18 | 0.25000 | 0.87500 | 0.75000 | ||||
| (7/8,1/8,1/2)' + set click here to show and hide | |||||||
| 19 | 0.87500 | 0.25000 | 0.75000 | ||||
| 20 | 0.37500 | 0.25000 | 0.25000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.00000 | 0.62500 | 0.25000 | ||||
| 22 | 0.50000 | 0.62500 | 0.75000 | ||||
| (1/8,7/8,1/2)' + set click here to show and hide | |||||||
| 23 | 0.12500 | 0.00000 | 0.75000 | ||||
| 24 | 0.62500 | 0.00000 | 0.25000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 25 | 0.25000 | 0.37500 | 0.25000 | ||||
| 26 | 0.75000 | 0.37500 | 0.75000 | ||||
| (3/8,5/8,1/2)' + set click here to show and hide | |||||||
| 27 | 0.37500 | 0.75000 | 0.75000 | ||||
| 28 | 0.87500 | 0.75000 | 0.25000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.12500 | 0.25000 | ||||
| 30 | 0.00000 | 0.12500 | 0.75000 | ||||
| (5/8,3/8,1/2)' + set click here to show and hide | |||||||
| 31 | 0.62500 | 0.50000 | 0.75000 | ||||
| 32 | 0.12500 | 0.50000 | 0.25000 | ||||
Set of atoms in the unit cell related by symmetry with the atom Co1_2:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.37500 | 0.25000 | ||||
| 2 | 0.50000 | 0.87500 | 0.75000 | ||||
| (1/8,3/8,1/2) + set click here to show and hide | |||||||
| 3 | 0.12500 | 0.75000 | 0.75000 | ||||
| 4 | 0.62500 | 0.25000 | 0.25000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.12500 | 0.25000 | ||||
| 6 | 0.75000 | 0.62500 | 0.75000 | ||||
| (3/8,1/8,1/2) + set click here to show and hide | |||||||
| 7 | 0.37500 | 0.50000 | 0.75000 | ||||
| 8 | 0.87500 | 0.00000 | 0.25000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.87500 | 0.25000 | ||||
| 10 | 0.00000 | 0.37500 | 0.75000 | ||||
| (5/8,7/8,1/2) + set click here to show and hide | |||||||
| 11 | 0.62500 | 0.25000 | 0.75000 | ||||
| 12 | 0.12500 | 0.75000 | 0.25000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.62500 | 0.25000 | ||||
| 14 | 0.25000 | 0.12500 | 0.75000 | ||||
| (7/8,5/8,1/2) + set click here to show and hide | |||||||
| 15 | 0.87500 | 0.00000 | 0.75000 | ||||
| 16 | 0.37500 | 0.50000 | 0.25000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 17 | 0.75000 | 0.12500 | 0.25000 | ||||
| 18 | 0.25000 | 0.62500 | 0.75000 | ||||
| (7/8,1/8,1/2)' + set click here to show and hide | |||||||
| 19 | 0.87500 | 0.50000 | 0.75000 | ||||
| 20 | 0.37500 | 0.00000 | 0.25000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.00000 | 0.87500 | 0.25000 | ||||
| 22 | 0.50000 | 0.37500 | 0.75000 | ||||
| (1/8,7/8,1/2)' + set click here to show and hide | |||||||
| 23 | 0.12500 | 0.25000 | 0.75000 | ||||
| 24 | 0.62500 | 0.75000 | 0.25000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 25 | 0.25000 | 0.62500 | 0.25000 | ||||
| 26 | 0.75000 | 0.12500 | 0.75000 | ||||
| (3/8,5/8,1/2)' + set click here to show and hide | |||||||
| 27 | 0.37500 | 0.00000 | 0.75000 | ||||
| 28 | 0.87500 | 0.50000 | 0.25000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.37500 | 0.25000 | ||||
| 30 | 0.00000 | 0.87500 | 0.75000 | ||||
| (5/8,3/8,1/2)' + set click here to show and hide | |||||||
| 31 | 0.62500 | 0.75000 | 0.75000 | ||||
| 32 | 0.12500 | 0.25000 | 0.25000 | ||||
Set of atoms in the unit cell related by symmetry with the atom Si1:
| Atom | x | y | z | ||||
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.38000 | ||||
| 2 | 0.25000 | 0.00000 | 0.38000 | ||||
| 3 | 0.87500 | 0.87500 | 0.12000 | ||||
| 4 | 0.50000 | 0.50000 | 0.62000 | ||||
| (1/8,3/8,1/2) + set click here to show and hide | |||||||
| 5 | 0.12500 | 0.37500 | 0.88000 | ||||
| 6 | 0.37500 | 0.37500 | 0.88000 | ||||
| 7 | 0.00000 | 0.25000 | 0.62000 | ||||
| 8 | 0.62500 | 0.87500 | 0.12000 | ||||
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 9 | 0.25000 | 0.75000 | 0.38000 | ||||
| 10 | 0.50000 | 0.75000 | 0.38000 | ||||
| 11 | 0.12500 | 0.62500 | 0.12000 | ||||
| 12 | 0.75000 | 0.25000 | 0.62000 | ||||
| (3/8,1/8,1/2) + set click here to show and hide | |||||||
| 13 | 0.37500 | 0.12500 | 0.88000 | ||||
| 14 | 0.62500 | 0.12500 | 0.88000 | ||||
| 15 | 0.25000 | 0.00000 | 0.62000 | ||||
| 16 | 0.87500 | 0.62500 | 0.12000 | ||||
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 17 | 0.50000 | 0.50000 | 0.38000 | ||||
| 18 | 0.75000 | 0.50000 | 0.38000 | ||||
| 19 | 0.37500 | 0.37500 | 0.12000 | ||||
| 20 | 0.00000 | 0.00000 | 0.62000 | ||||
| (5/8,7/8,1/2) + set click here to show and hide | |||||||
| 21 | 0.62500 | 0.87500 | 0.88000 | ||||
| 22 | 0.87500 | 0.87500 | 0.88000 | ||||
| 23 | 0.50000 | 0.75000 | 0.62000 | ||||
| 24 | 0.12500 | 0.37500 | 0.12000 | ||||
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 25 | 0.75000 | 0.25000 | 0.38000 | ||||
| 26 | 0.00000 | 0.25000 | 0.38000 | ||||
| 27 | 0.62500 | 0.12500 | 0.12000 | ||||
| 28 | 0.25000 | 0.75000 | 0.62000 | ||||
| (7/8,5/8,1/2) + set click here to show and hide | |||||||
| 29 | 0.87500 | 0.62500 | 0.88000 | ||||
| 30 | 0.12500 | 0.62500 | 0.88000 | ||||
| 31 | 0.75000 | 0.50000 | 0.62000 | ||||
| 32 | 0.37500 | 0.12500 | 0.12000 | ||||
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 33 | 0.75000 | 0.75000 | 0.38000 | ||||
| 34 | 0.00000 | 0.75000 | 0.38000 | ||||
| 35 | 0.62500 | 0.62500 | 0.12000 | ||||
| 36 | 0.25000 | 0.25000 | 0.62000 | ||||
| (7/8,1/8,1/2)' + set click here to show and hide | |||||||
| 37 | 0.87500 | 0.12500 | 0.88000 | ||||
| 38 | 0.12500 | 0.12500 | 0.88000 | ||||
| 39 | 0.75000 | 0.00000 | 0.62000 | ||||
| 40 | 0.37500 | 0.62500 | 0.12000 | ||||
| (0,1/2,0)' + set click here to show and hide | |||||||
| 41 | 0.00000 | 0.50000 | 0.38000 | ||||
| 42 | 0.25000 | 0.50000 | 0.38000 | ||||
| 43 | 0.87500 | 0.37500 | 0.12000 | ||||
| 44 | 0.50000 | 0.00000 | 0.62000 | ||||
| (1/8,7/8,1/2)' + set click here to show and hide | |||||||
| 45 | 0.12500 | 0.87500 | 0.88000 | ||||
| 46 | 0.37500 | 0.87500 | 0.88000 | ||||
| 47 | 0.00000 | 0.75000 | 0.62000 | ||||
| 48 | 0.62500 | 0.37500 | 0.12000 | ||||
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 49 | 0.25000 | 0.25000 | 0.38000 | ||||
| 50 | 0.50000 | 0.25000 | 0.38000 | ||||
| 51 | 0.12500 | 0.12500 | 0.12000 | ||||
| 52 | 0.75000 | 0.75000 | 0.62000 | ||||
| (3/8,5/8,1/2)' + set click here to show and hide | |||||||
| 53 | 0.37500 | 0.62500 | 0.88000 | ||||
| 54 | 0.62500 | 0.62500 | 0.88000 | ||||
| 55 | 0.25000 | 0.50000 | 0.62000 | ||||
| 56 | 0.87500 | 0.12500 | 0.12000 | ||||
| (1/2,0,0)' + set click here to show and hide | |||||||
| 57 | 0.50000 | 0.00000 | 0.38000 | ||||
| 58 | 0.75000 | 0.00000 | 0.38000 | ||||
| 59 | 0.37500 | 0.87500 | 0.12000 | ||||
| 60 | 0.00000 | 0.50000 | 0.62000 | ||||
| (5/8,3/8,1/2)' + set click here to show and hide | |||||||
| 61 | 0.62500 | 0.37500 | 0.88000 | ||||
| 62 | 0.87500 | 0.37500 | 0.88000 | ||||
| 63 | 0.50000 | 0.25000 | 0.62000 | ||||
| 64 | 0.12500 | 0.87500 | 0.12000 | ||||
| Label | Atom type | x | y | z | Multiplicity | Symmetry constraints on M | Mx | My | Mz | |M| |
|---|---|---|---|---|---|---|---|---|---|---|
| Yb1 | Yb | 0.00000 | 0.00000 | 0.00000 | 32 | mx,mx,0 | 1. | 1. | 0.0 | 1.41 |
Set of atoms in the unit cell related by symmetry with the magnetic atom Yb1:
| Atom | x | y | z | Symmetry constraints on M | Mx | My | Mz |
|---|---|---|---|---|---|---|---|
| 1 | 0.00000 | 0.00000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 2 | 0.25000 | 0.00000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (1/8,3/8,1/2) + set click here to show and hide | |||||||
| 3 | 0.12500 | 0.37500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 4 | 0.37500 | 0.37500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (1/4,3/4,0) + set click here to show and hide | |||||||
| 5 | 0.25000 | 0.75000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 6 | 0.50000 | 0.75000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (3/8,1/8,1/2) + set click here to show and hide | |||||||
| 7 | 0.37500 | 0.12500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 8 | 0.62500 | 0.12500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (1/2,1/2,0) + set click here to show and hide | |||||||
| 9 | 0.50000 | 0.50000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 10 | 0.75000 | 0.50000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (5/8,7/8,1/2) + set click here to show and hide | |||||||
| 11 | 0.62500 | 0.87500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 12 | 0.87500 | 0.87500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (3/4,1/4,0) + set click here to show and hide | |||||||
| 13 | 0.75000 | 0.25000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 14 | 0.00000 | 0.25000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (7/8,5/8,1/2) + set click here to show and hide | |||||||
| 15 | 0.87500 | 0.62500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| 16 | 0.12500 | 0.62500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| (3/4,3/4,0)' + set click here to show and hide | |||||||
| 17 | 0.75000 | 0.75000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 18 | 0.00000 | 0.75000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (7/8,1/8,1/2)' + set click here to show and hide | |||||||
| 19 | 0.87500 | 0.12500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 20 | 0.12500 | 0.12500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (0,1/2,0)' + set click here to show and hide | |||||||
| 21 | 0.00000 | 0.50000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 22 | 0.25000 | 0.50000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (1/8,7/8,1/2)' + set click here to show and hide | |||||||
| 23 | 0.12500 | 0.87500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 24 | 0.37500 | 0.87500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (1/4,1/4,0)' + set click here to show and hide | |||||||
| 25 | 0.25000 | 0.25000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 26 | 0.50000 | 0.25000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (3/8,5/8,1/2)' + set click here to show and hide | |||||||
| 27 | 0.37500 | 0.62500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 28 | 0.62500 | 0.62500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (1/2,0,0)' + set click here to show and hide | |||||||
| 29 | 0.50000 | 0.00000 | 0.00000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 30 | 0.75000 | 0.00000 | 0.00000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| (5/8,3/8,1/2)' + set click here to show and hide | |||||||
| 31 | 0.62500 | 0.37500 | 0.50000 | -mx,-mx,0 | -1.00000 | -1.00000 | 0.00000 |
| 32 | 0.87500 | 0.37500 | 0.50000 | mx,mx,0 | 1.00000 | 1.00000 | 0.00000 |
| label | dim. small irrep | dim. full irrep | action | number of modes |
| mY4 | 1 | 4 | primary | 1 |
|
Bilbao Crystallographic Server https://www.cryst.ehu.es |
For comments, please mail to administrador.bcs@ehu.eus |
