MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

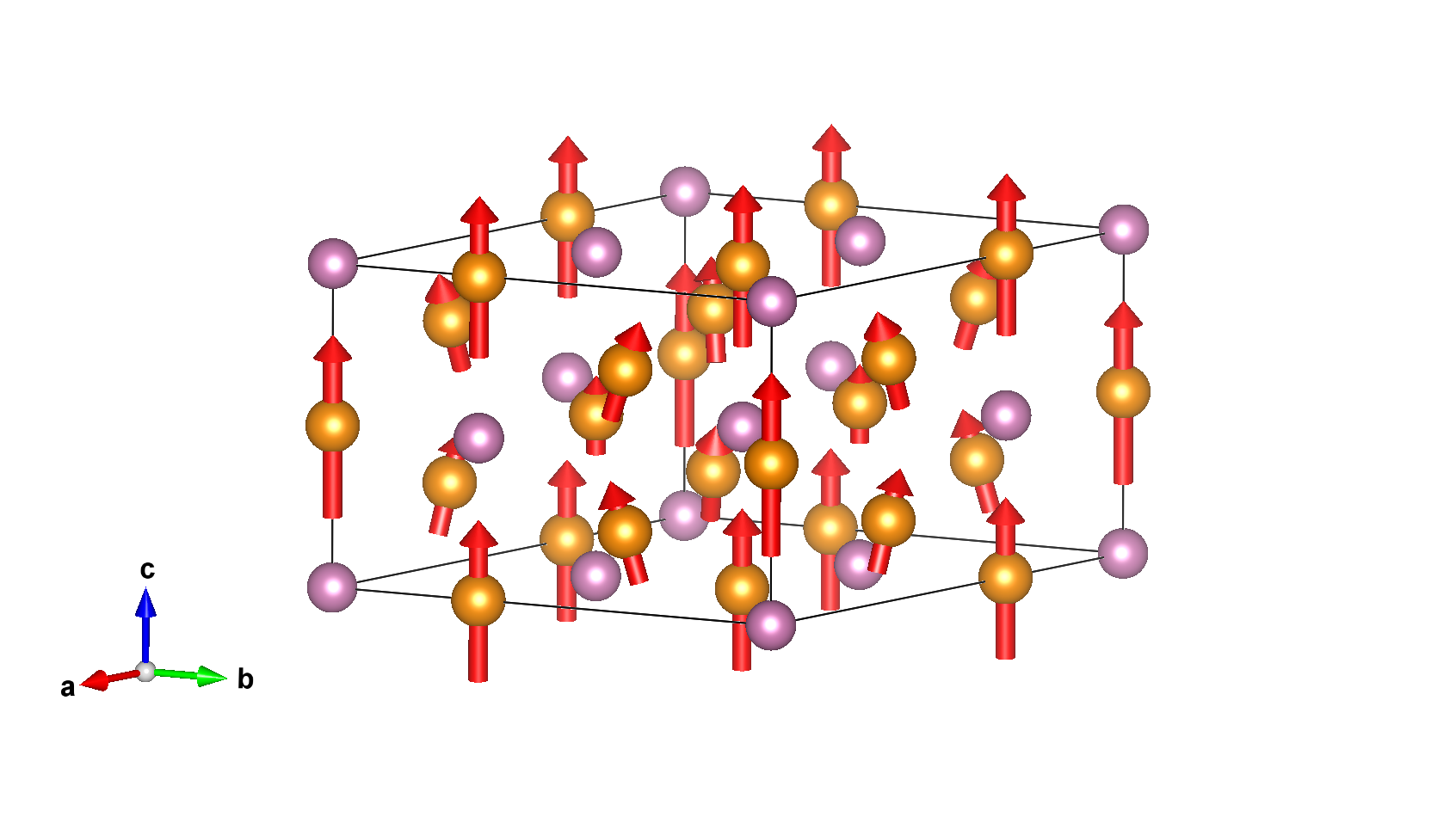

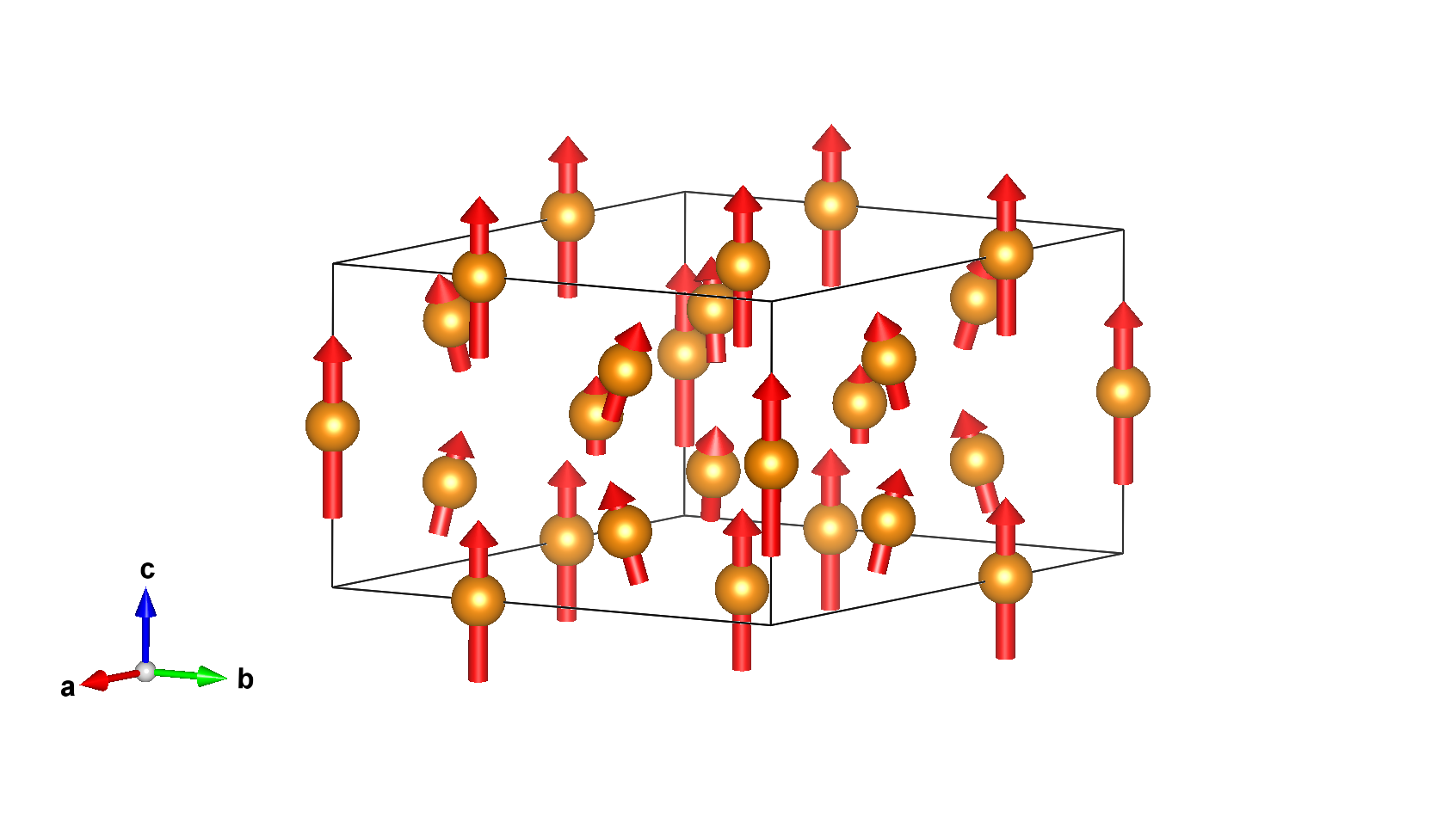

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Nd1	Nd	0.66667	0.00000	0.75000	6	m_x,0,m_z	0.39(9)	1.28(9)	1.34
Nd2_1	Nd	0.33333	0.66667	0.50000	2	0,0,m_z	0.0	0.66(9)	0.66
Nd2_2	Nd	0.33333	0.00000	0.00000	3	0,0,m_z	0.0	2.84(5)	2.84
Nd2_3	Nd	0.00000	0.00000	0.50000	1	0,0,m_z	0.0	3.42(14)	3.42

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
In1	In	0.33333	0.66667	0.00000	2
In2	In	0.33333	0.00000	0.50000	3
In3	In	0.00000	0.00000	0.00000	1

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.66667	0.00000	0.75000	m_x,0,m_z	0.39000	0.00000	1.28000
2	0.00000	0.66667	0.25000	0,-m_x,m_z	0.00000	-0.39000	1.28000
3	0.33333	0.33333	0.75000	-m_x,-m_x,m_z	-0.39000	-0.39000	1.28000
4	0.33333	0.33333	0.25000	m_x,m_x,m_z	0.39000	0.39000	1.28000
5	0.66667	0.00000	0.25000	-m_x,0,m_z	-0.39000	0.00000	1.28000
6	0.00000	0.66667	0.75000	0,m_x,m_z	0.00000	0.39000	1.28000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.33333	0.66667	0.50000	0,0,m_z	0.00000	0.00000	0.66000
2	0.66666	0.33333	0.50000	0,0,m_z	0.00000	0.00000	0.66000

Atom	x	y	Symmetry constraints on M	M_z
1	0.33333	0.00000	0,0,m_z	2.84000
2	0.00000	0.33333	0,0,m_z	2.84000
3	0.66667	0.66667	0,0,m_z	2.84000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	3.42000

Atom	x	y	z
1	0.33333	0.66667	0.00000
2	0.66666	0.33333	0.00000

Atom	x	y	z
1	0.00000	0.00000	0.00000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Nd1	Nd	0.66667	0.00000	0.75000	6	m_x,0,m_z	0.39(9)	1.28(9)	1.34
Nd2_1	Nd	0.33333	0.66667	0.50000	2	0,0,m_z	0.0	0.66(9)	0.66
Nd2_2	Nd	0.33333	0.00000	0.00000	3	0,0,m_z	0.0	2.84(5)	2.84
Nd2_3	Nd	0.00000	0.00000	0.50000	1	0,0,m_z	0.0	3.42(14)	3.42

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.66667	0.00000	0.75000	m_x,0,m_z	0.39000	0.00000	1.28000
2	0.00000	0.66667	0.25000	0,-m_x,m_z	0.00000	-0.39000	1.28000
3	0.33333	0.33333	0.75000	-m_x,-m_x,m_z	-0.39000	-0.39000	1.28000
4	0.33333	0.33333	0.25000	m_x,m_x,m_z	0.39000	0.39000	1.28000
5	0.66667	0.00000	0.25000	-m_x,0,m_z	-0.39000	0.00000	1.28000
6	0.00000	0.66667	0.75000	0,m_x,m_z	0.00000	0.39000	1.28000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.33333	0.66667	0.50000	0,0,m_z	0.00000	0.00000	0.66000
2	0.66666	0.33333	0.50000	0,0,m_z	0.00000	0.00000	0.66000

Atom	x	y	Symmetry constraints on M	M_z
1	0.33333	0.00000	0,0,m_z	2.84000
2	0.00000	0.33333	0,0,m_z	2.84000
3	0.66667	0.66667	0,0,m_z	2.84000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	3.42000

MAGNDATA: A Collection of magnetic structures with portable cif-type files
