MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

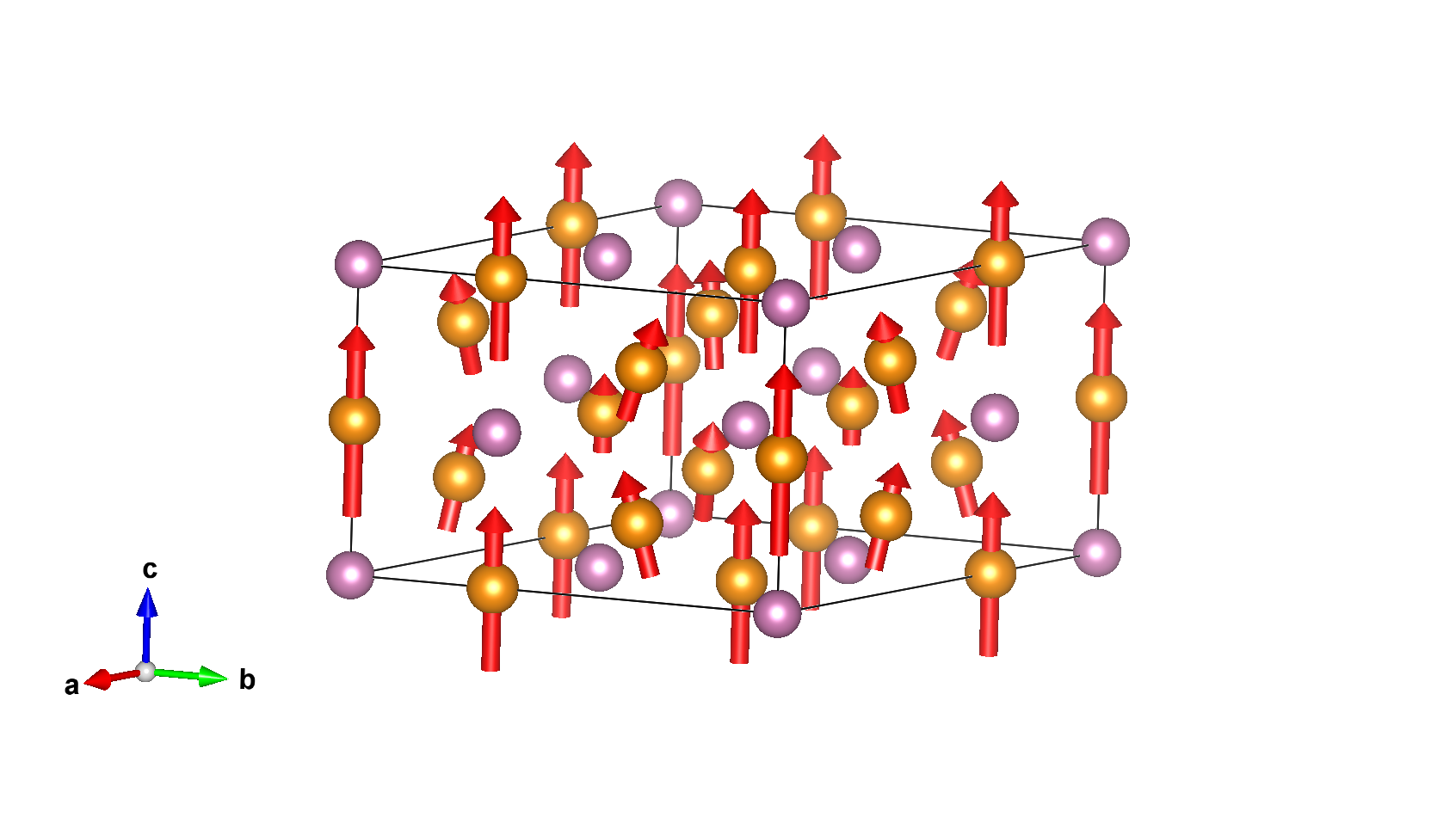

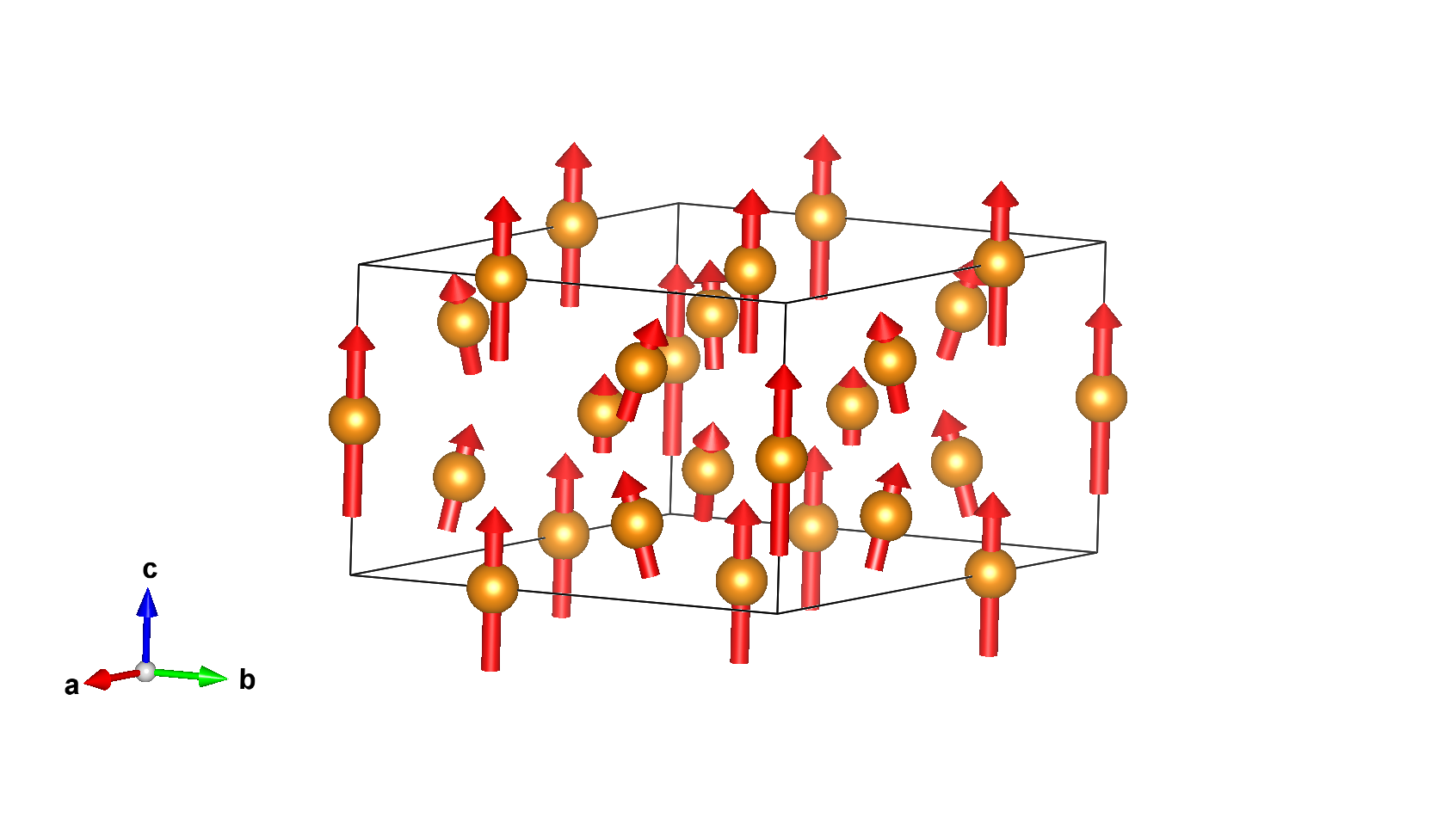

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Nd1	Nd	0.66667	0.00000	0.75000	6	m_x,0,m_z	0.44(26)	1.49(24)	1.55
Nd2_1	Nd	0.33333	0.66667	0.50000	2	0,0,m_z	0.0	0.75(26)	0.75
Nd2_2	Nd	0.33333	0.00000	0.00000	3	0,0,m_z	0.0	3.10(15)	3.10
Nd2_3	Nd	0.00000	0.00000	0.50000	1	0,0,m_z	0.0	3.86(41)	3.86

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
In1	In	0.33333	0.66667	0.00000	2
In2	In	0.33333	0.00000	0.50000	3
In3	In	0.00000	0.00000	0.00000	1

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.66667	0.00000	0.75000	m_x,0,m_z	0.44000	0.00000	1.49000
2	0.00000	0.66667	0.25000	0,-m_x,m_z	0.00000	-0.44000	1.49000
3	0.33333	0.33333	0.75000	-m_x,-m_x,m_z	-0.44000	-0.44000	1.49000
4	0.33333	0.33333	0.25000	m_x,m_x,m_z	0.44000	0.44000	1.49000
5	0.66667	0.00000	0.25000	-m_x,0,m_z	-0.44000	0.00000	1.49000
6	0.00000	0.66667	0.75000	0,m_x,m_z	0.00000	0.44000	1.49000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.33333	0.66667	0.50000	0,0,m_z	0.00000	0.00000	0.75000
2	0.66666	0.33333	0.50000	0,0,m_z	0.00000	0.00000	0.75000

Atom	x	y	Symmetry constraints on M	M_z
1	0.33333	0.00000	0,0,m_z	3.10000
2	0.00000	0.33333	0,0,m_z	3.10000
3	0.66667	0.66667	0,0,m_z	3.10000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	3.86000

Atom	x	y	z
1	0.33333	0.66667	0.00000
2	0.66666	0.33333	0.00000

Atom	x	y	z
1	0.00000	0.00000	0.00000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Nd1	Nd	0.66667	0.00000	0.75000	6	m_x,0,m_z	0.44(26)	1.49(24)	1.55
Nd2_1	Nd	0.33333	0.66667	0.50000	2	0,0,m_z	0.0	0.75(26)	0.75
Nd2_2	Nd	0.33333	0.00000	0.00000	3	0,0,m_z	0.0	3.10(15)	3.10
Nd2_3	Nd	0.00000	0.00000	0.50000	1	0,0,m_z	0.0	3.86(41)	3.86

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.66667	0.00000	0.75000	m_x,0,m_z	0.44000	0.00000	1.49000
2	0.00000	0.66667	0.25000	0,-m_x,m_z	0.00000	-0.44000	1.49000
3	0.33333	0.33333	0.75000	-m_x,-m_x,m_z	-0.44000	-0.44000	1.49000
4	0.33333	0.33333	0.25000	m_x,m_x,m_z	0.44000	0.44000	1.49000
5	0.66667	0.00000	0.25000	-m_x,0,m_z	-0.44000	0.00000	1.49000
6	0.00000	0.66667	0.75000	0,m_x,m_z	0.00000	0.44000	1.49000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.33333	0.66667	0.50000	0,0,m_z	0.00000	0.00000	0.75000
2	0.66666	0.33333	0.50000	0,0,m_z	0.00000	0.00000	0.75000

Atom	x	y	Symmetry constraints on M	M_z
1	0.33333	0.00000	0,0,m_z	3.10000
2	0.00000	0.33333	0,0,m_z	3.10000
3	0.66667	0.66667	0,0,m_z	3.10000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	3.86000
