MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

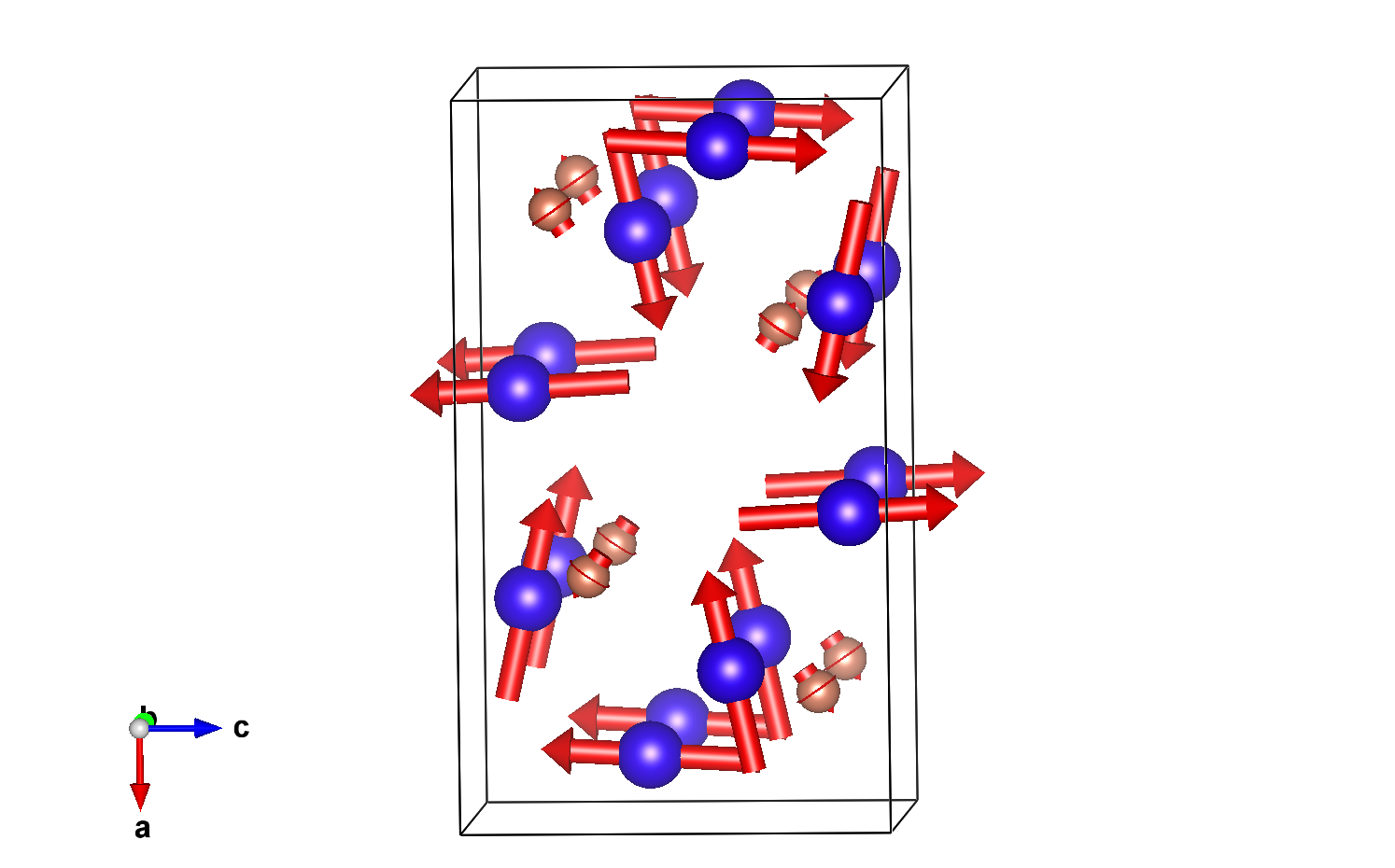

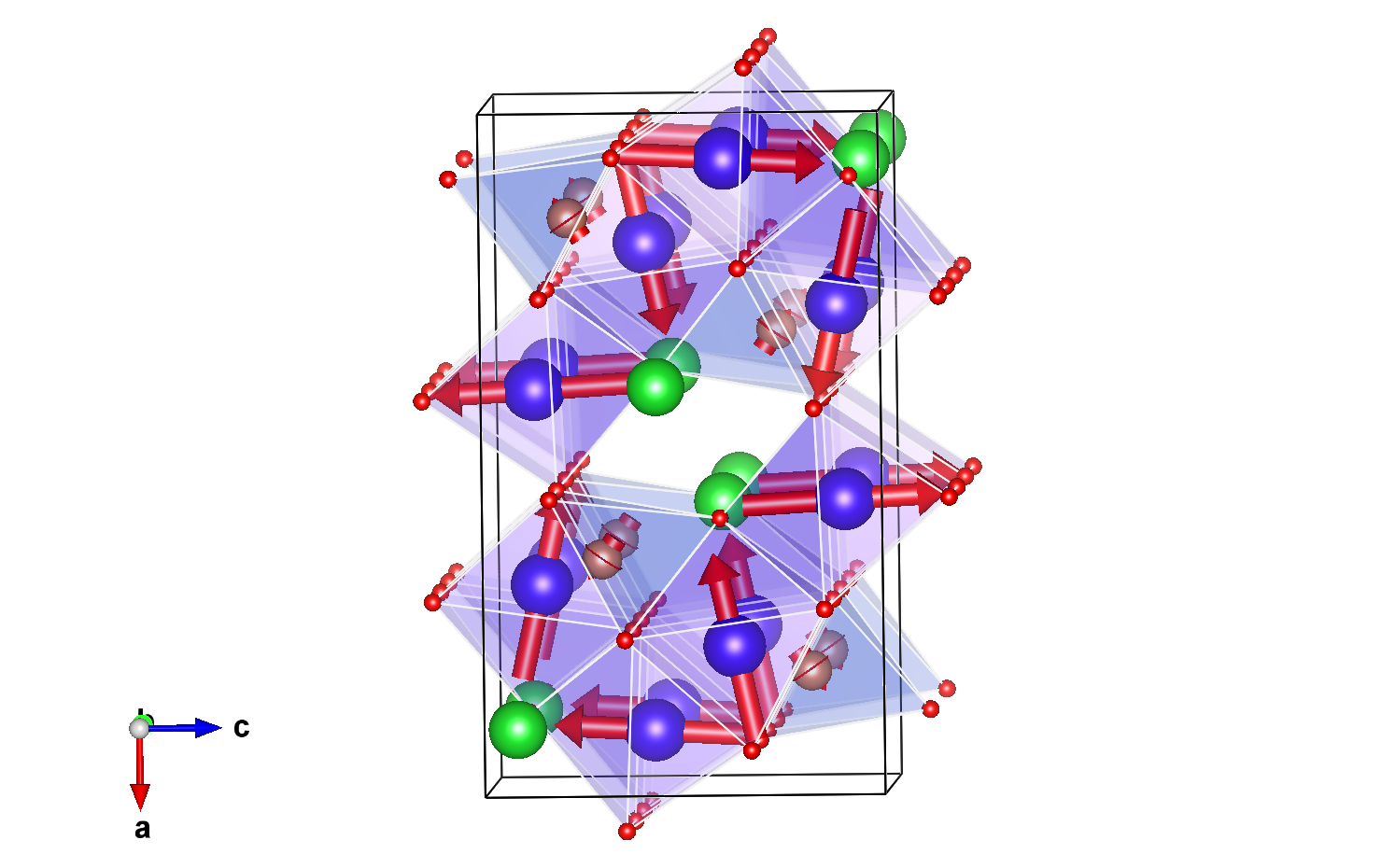

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Dy1	Dy	0.28878(6)	0.25	0.88256(16)	4	m_x,0,m_z	8.622(15)	-1.922(13)	8.83
Dy2	Dy	0.07468(7)	0.25	0.60282(12)	4	m_x,0,m_z	0.559(15)	9.669(16)	9.69
Cu1	Cu	0.65987(18)	0.25	0.2888(3)	4	m_x,0,m_z	0.528(17)	-0.363(14)	0.64

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ba1	Ba	-0.0915(3)	0.25	0.0727(4)	4
O1	O	0.5658(2)	0.0098(3)	0.1674(2)	8
O2	O	0.77144(14)	0.4946(4)	0.3536(3)	8
O3	O	0.10141(19)	0.25	-0.0842(4)	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.28878	0.25000	0.88256	m_x,0,m_z	8.62200	-1.92200
2	0.21122	0.75000	0.38256	m_x,0,-m_z	8.62200	1.92200
3	0.71122	0.75000	0.11744	-m_x,0,-m_z	-8.62200	1.92200
4	0.78878	0.25000	0.61744	-m_x,0,m_z	-8.62200	-1.92200

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.07468	0.25000	0.60282	m_x,0,m_z	0.55900	9.66900
2	0.42532	0.75000	0.10282	m_x,0,-m_z	0.55900	-9.66900
3	0.92532	0.75000	0.39718	-m_x,0,-m_z	-0.55900	-9.66900
4	0.57468	0.25000	0.89718	-m_x,0,m_z	-0.55900	9.66900

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.65987	0.25000	0.28880	m_x,0,m_z	0.52800	-0.36300
2	0.84013	0.75000	0.78880	m_x,0,-m_z	0.52800	0.36300
3	0.34013	0.75000	0.71120	-m_x,0,-m_z	-0.52800	0.36300
4	0.15987	0.25000	0.21120	-m_x,0,m_z	-0.52800	-0.36300

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Dy1	Dy	0.28878(6)	0.25	0.88256(16)	4	m_x,0,m_z	8.622(15)	-1.922(13)	8.83
Dy2	Dy	0.07468(7)	0.25	0.60282(12)	4	m_x,0,m_z	0.559(15)	9.669(16)	9.69
Cu1	Cu	0.65987(18)	0.25	0.2888(3)	4	m_x,0,m_z	0.528(17)	-0.363(14)	0.64

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.28878	0.25000	0.88256	m_x,0,m_z	8.62200	-1.92200
2	0.21122	0.75000	0.38256	m_x,0,-m_z	8.62200	1.92200
3	0.71122	0.75000	0.11744	-m_x,0,-m_z	-8.62200	1.92200
4	0.78878	0.25000	0.61744	-m_x,0,m_z	-8.62200	-1.92200

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.07468	0.25000	0.60282	m_x,0,m_z	0.55900	9.66900
2	0.42532	0.75000	0.10282	m_x,0,-m_z	0.55900	-9.66900
3	0.92532	0.75000	0.39718	-m_x,0,-m_z	-0.55900	-9.66900
4	0.57468	0.25000	0.89718	-m_x,0,m_z	-0.55900	9.66900

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.65987	0.25000	0.28880	m_x,0,m_z	0.52800	-0.36300
2	0.84013	0.75000	0.78880	m_x,0,-m_z	0.52800	0.36300
3	0.34013	0.75000	0.71120	-m_x,0,-m_z	-0.52800	0.36300
4	0.15987	0.25000	0.21120	-m_x,0,m_z	-0.52800	-0.36300

label	dim. small irrep	dim. full irrep	action	number of modes
mGM4-	1	1	primary	6
