MAGNDATA: A Collection of magnetic structures with portable cif-type files

working...

Magnetic structure with all atoms

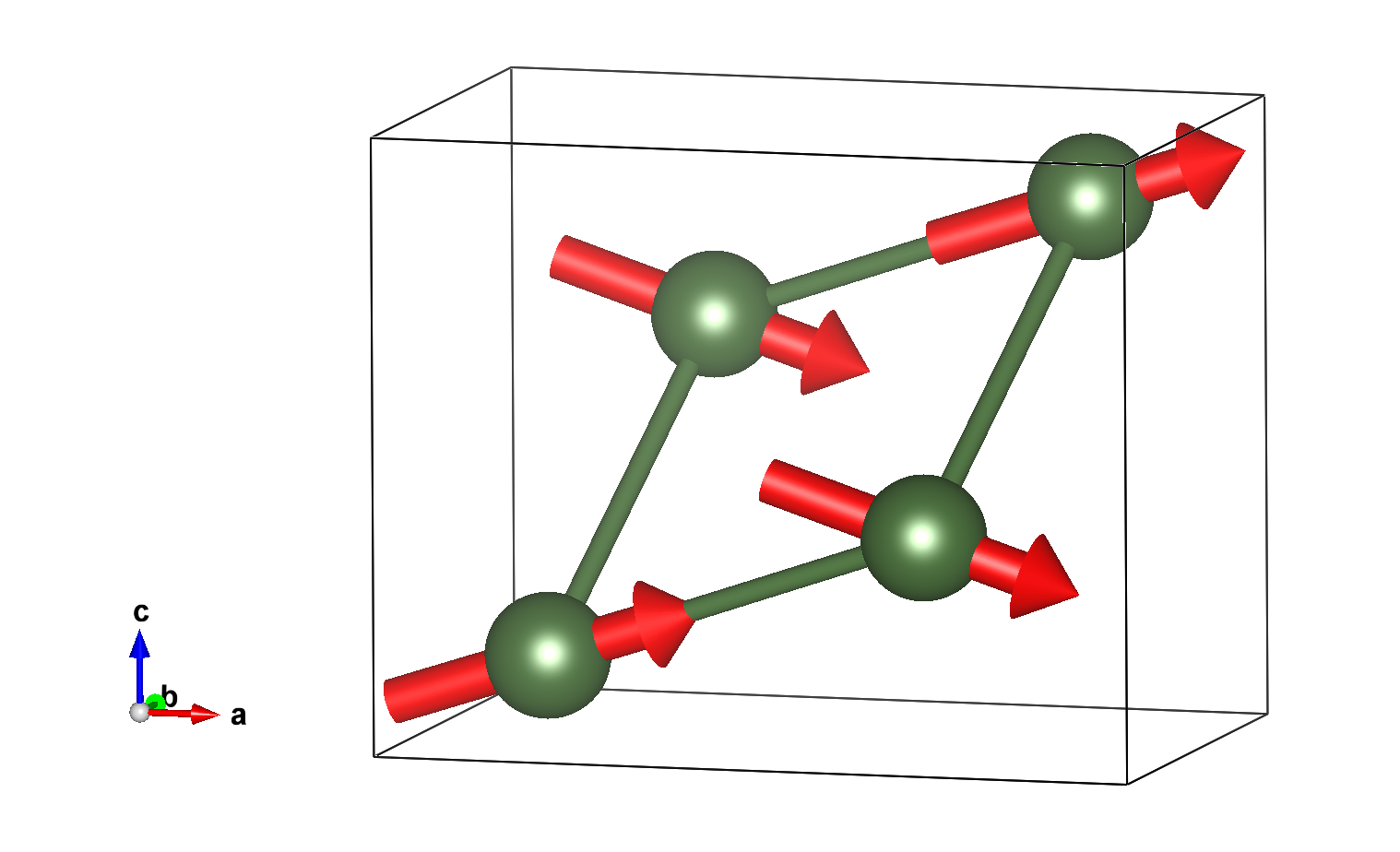

Magnetic structure with only magnetic atoms

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x+1/2,-y+1/2,-z+1/2,+1	{ 2₁₀₀ \| 1/2 1/2 1/2 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	-x+1/2,y+1/2,z+1/2,+1	{ m₁₀₀ \| 1/2 1/2 1/2 }
5	-x,y+1/2,-z,-1	{ 2'₀₁₀ \| 0 1/2 0 }
6	-x+1/2,-y,z+1/2,-1	{ 2'₀₀₁ \| 1/2 0 1/2 }
7	x,-y+1/2,z,-1	{ m'₀₁₀ \| 0 1/2 0 }
8	x+1/2,y,-z+1/2,-1	{ m'₀₀₁ \| 1/2 0 1/2 }

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	x,-y,-z,+1	2₁₀₀
3	-x,-y,-z,+1	-1
4	-x,y,z,+1	m₁₀₀
5	-x,y,-z,-1	2'₀₁₀
6	-x,-y,z,-1	2'₀₀₁
7	x,-y,z,-1	m'₀₁₀
8	x,y,-z,-1	m'₀₀₁

Label	Atom type	x	y	z	Multiplicity
Pt1	Pt	0.04800	0.25000	0.65300	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.18500	0.25000	0.14400	m_x,0,m_z	7.70000	2.50000
2	0.68500	0.25000	0.35600	m_x,0,-m_z	7.70000	-2.50000
3	0.81500	0.75000	0.85600	m_x,0,m_z	7.70000	2.50000
4	0.31500	0.75000	0.64400	m_x,0,-m_z	7.70000	-2.50000

Atom	x	y	z
1	0.04800	0.25000	0.65300
2	0.54800	0.25000	0.84700
3	0.95200	0.75000	0.34700
4	0.45200	0.75000	0.15300

Reference: A. Castets, D. Gignoux, J.C. Gomez-Sal, JOURNAL OF SOLID STATE CHEMISTRY (1980) 31 197 - 207
DOI: 10.1016/0022-4596(80)90021-3
Atomic positions from: ICSD #630978

Parent space group (paramagnetic phase): Pnma (#62)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 16 K
Experiment Temperature: 4.2 K

Lattice parameters of the magnetic unit cell:
6.90600 4.45100 5.50900 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: Pnm'a' (#62.447) (standard setting)
    [View symmetry operations]
Transformation to a standard setting: (a,b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: m'm'm (8.4.27)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Er1	Er	0.18500	0.25000	0.14400	4	m_x,0,m_z	7.7	0.0	2.5	8.10

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.18500	0.25000	0.14400	m_x,0,m_z	7.70000	2.50000
2	0.68500	0.25000	0.35600	m_x,0,-m_z	7.70000	-2.50000
3	0.81500	0.75000	0.85600	m_x,0,m_z	7.70000	2.50000
4	0.31500	0.75000	0.64400	m_x,0,-m_z	7.70000	-2.50000

[Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:

label	dim. small irrep	dim. full irrep	action	number of modes
mGM3+	1	1	primary	2

Comments:

NPD
Position structure from a determination at room temperature.
FM along a

Comments (symmetry):

1k magnetic structure
k-maximal magnetic symmetry
1-dim irrep as primary

Bilbao Crystallographic Server
https://www.cryst.ehu.es

For comments, please mail to
administrador.bcs@ehu.eus
