Symmetry operations of the magnetic space group in the setting used:

[Hide]

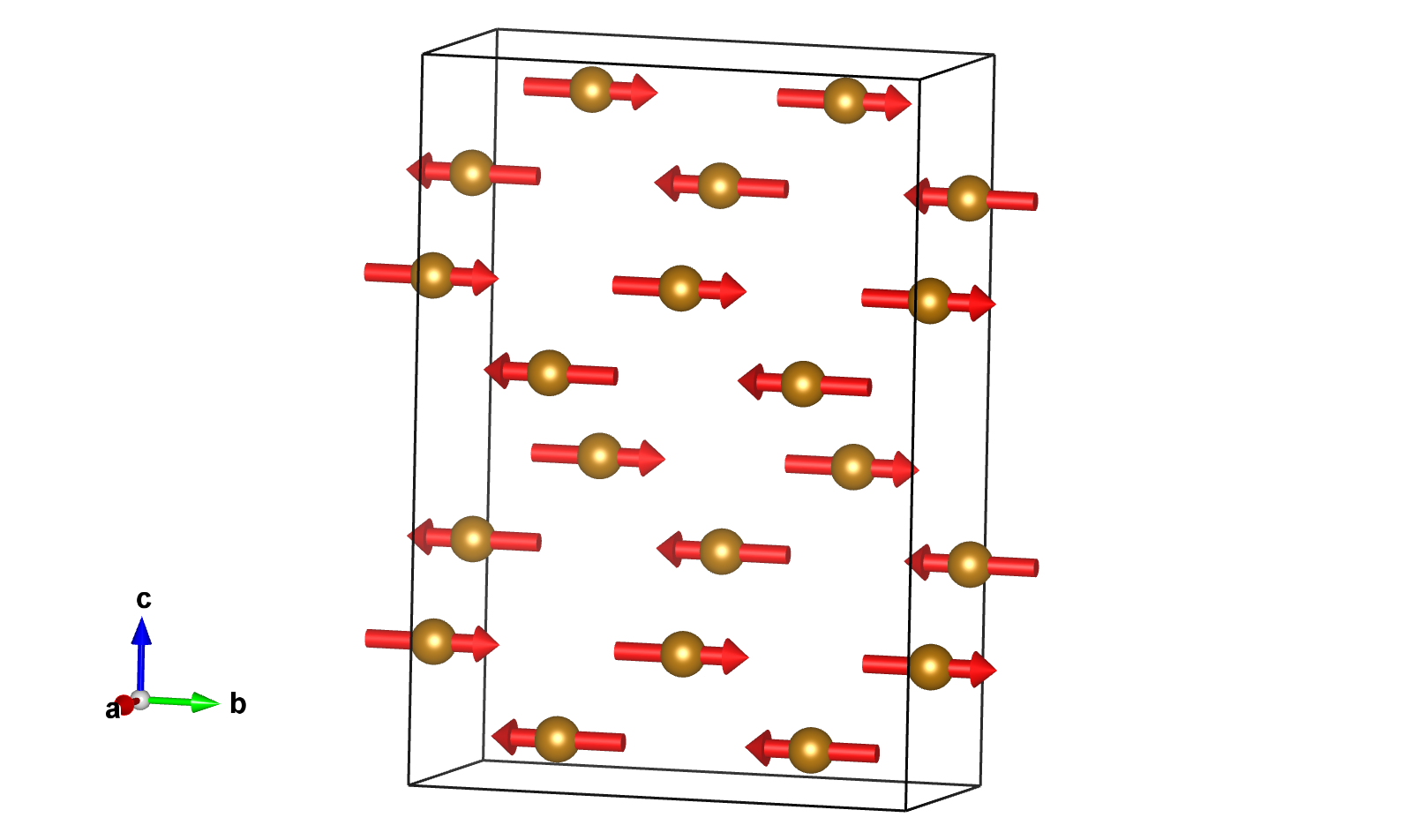

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.75370	0.00840	0.18840	8	m_x,m_y,m_z	0.0	3.79	0.0	3.79
Fe2	Fe	0.78420	0.23520	0.56480	8	m_x,m_y,m_z	0.0	-3.79	0.0	3.79

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
K1	K	0.74500	0.50950	0.43570	8
K2	K	0.30390	0.23700	0.68400	8
O1	O	0.43250	0.98050	0.21790	8
O2	O	0.84110	0.90820	0.10080	8
O3	O	0.79850	0.16490	0.15730	8
O4	O	0.57740	0.29340	0.48040	8

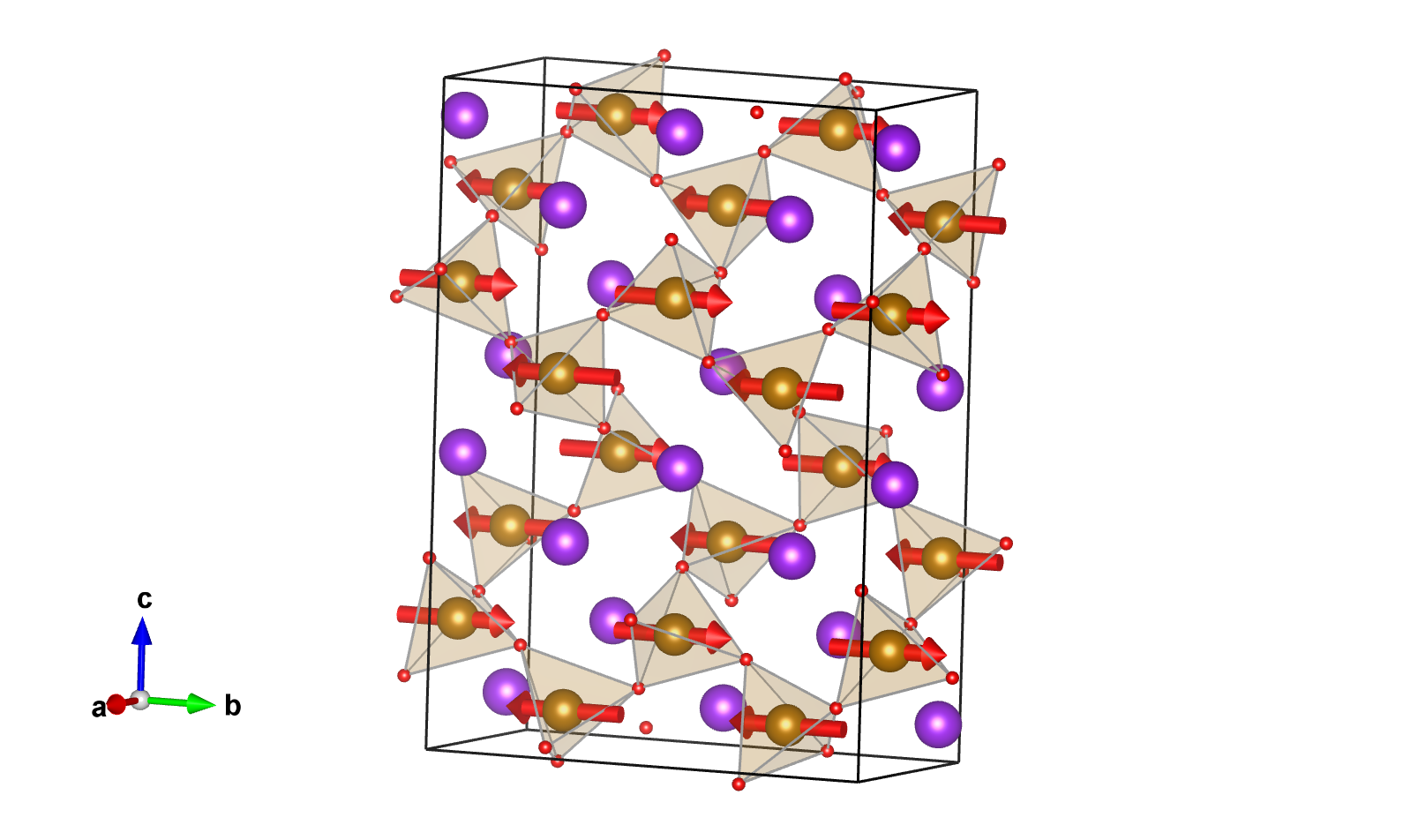

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1:

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.75370	0.00840	0.18840	m_x,m_y,m_z	3.79000
2	0.25370	0.49160	0.81160	m_x,-m_y,-m_z	-3.79000
3	0.75370	0.49160	0.68840	-m_x,m_y,-m_z	3.79000
4	0.25370	0.00840	0.31160	-m_x,-m_y,m_z	-3.79000
5	0.24630	0.50840	0.31160	m_x,-m_y,m_z	-3.79000
6	0.74630	0.99160	0.68840	m_x,m_y,-m_z	3.79000
7	0.24630	0.99160	0.81160	-m_x,-m_y,-m_z	-3.79000
8	0.74630	0.50840	0.18840	-m_x,m_y,m_z	3.79000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe2:

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.78420	0.23520	0.56480	m_x,m_y,m_z	-3.79000
2	0.28420	0.26480	0.43520	m_x,-m_y,-m_z	3.79000
3	0.78420	0.26480	0.06480	-m_x,m_y,-m_z	-3.79000
4	0.28420	0.23520	0.93520	-m_x,-m_y,m_z	3.79000
5	0.21580	0.73520	0.93520	m_x,-m_y,m_z	3.79000
6	0.71580	0.76480	0.06480	m_x,m_y,-m_z	-3.79000
7	0.21580	0.76480	0.43520	-m_x,-m_y,-m_z	3.79000
8	0.71580	0.73520	0.56480	-m_x,m_y,m_z	-3.79000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom K1:

Set of atoms in the unit cell related by symmetry with the atom K2:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3:

Set of atoms in the unit cell related by symmetry with the atom O4:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.75370	0.00840	0.18840	8	m_x,m_y,m_z	0.0	3.79	0.0	3.79
Fe2	Fe	0.78420	0.23520	0.56480	8	m_x,m_y,m_z	0.0	-3.79	0.0	3.79

label	dim. small irrep	dim. full irrep	action	number of modes
mGM3-	1	1	primary	6
