MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cu1	Cu	0.47600	0.87500	0.27400	12	m_x,0,-m_x	0.37	0.0	-0.37	0.52

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Te1	Te	0.33790	0.91920	0.05890	24
Sr1	Sr	0.05360	0.05360	0.05360	8
Sr2	Sr	0.87500	0.87500	0.87500	4
O1	O	0.67020	0.12710	0.17950	24
O2	O	0.43910	0.01630	0.22710	24
O3	O	0.22200	0.97660	0.12970	24

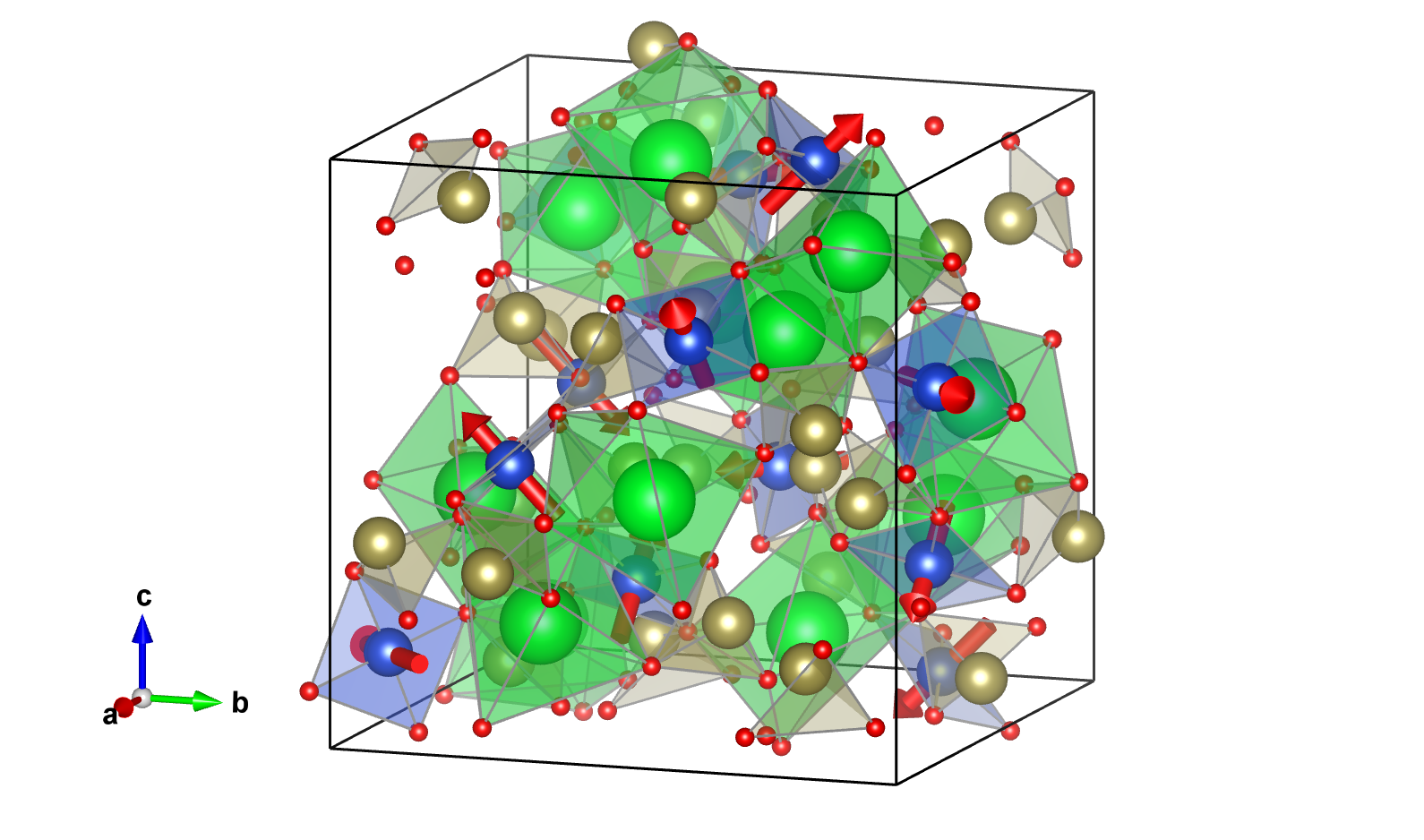

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

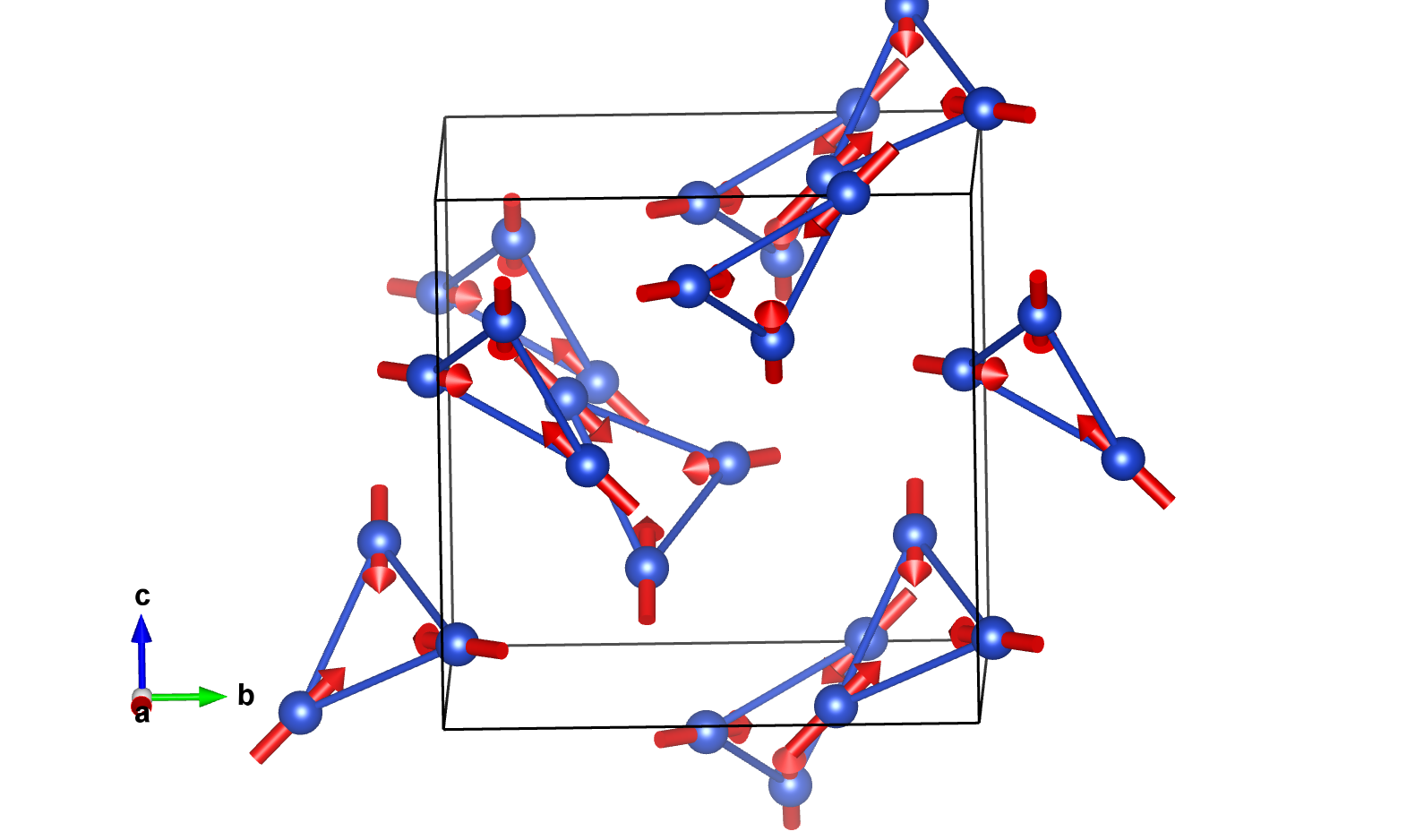

Set of atoms in the unit cell related by symmetry with the magnetic atom Cu1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.47600	0.87500	0.27400	m_x,0,-m_x	0.37000	0.00000	-0.37000
2	0.72600	0.97600	0.62500	m_x,m_x,0	0.37000	0.37000	0.00000
3	0.22600	0.52400	0.37500	m_x,-m_x,0	0.37000	-0.37000	0.00000
4	0.02400	0.12500	0.77400	-m_x,0,-m_x	-0.37000	0.00000	-0.37000
5	0.97600	0.62500	0.72600	m_x,0,m_x	0.37000	0.00000	0.37000
6	0.37500	0.22600	0.52400	0,m_x,-m_x	0.00000	0.37000	-0.37000
7	0.12500	0.77400	0.02400	0,-m_x,-m_x	0.00000	-0.37000	-0.37000
8	0.52400	0.37500	0.22600	-m_x,0,m_x	-0.37000	0.00000	0.37000
9	0.62500	0.72600	0.97600	0,m_x,m_x	0.00000	0.37000	0.37000
10	0.87500	0.27400	0.47600	0,-m_x,m_x	0.00000	-0.37000	0.37000
11	0.77400	0.02400	0.12500	-m_x,-m_x,0	-0.37000	-0.37000	0.00000
12	0.27400	0.47600	0.87500	-m_x,m_x,0	-0.37000	0.37000	0.00000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Te1:

Set of atoms in the unit cell related by symmetry with the atom Sr1:

Set of atoms in the unit cell related by symmetry with the atom Sr2:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Cu1	Cu	0.47600	0.87500	0.27400	12	m_x,0,-m_x	0.37	0.0	-0.37	0.52

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1	1	1	primary	1
