MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

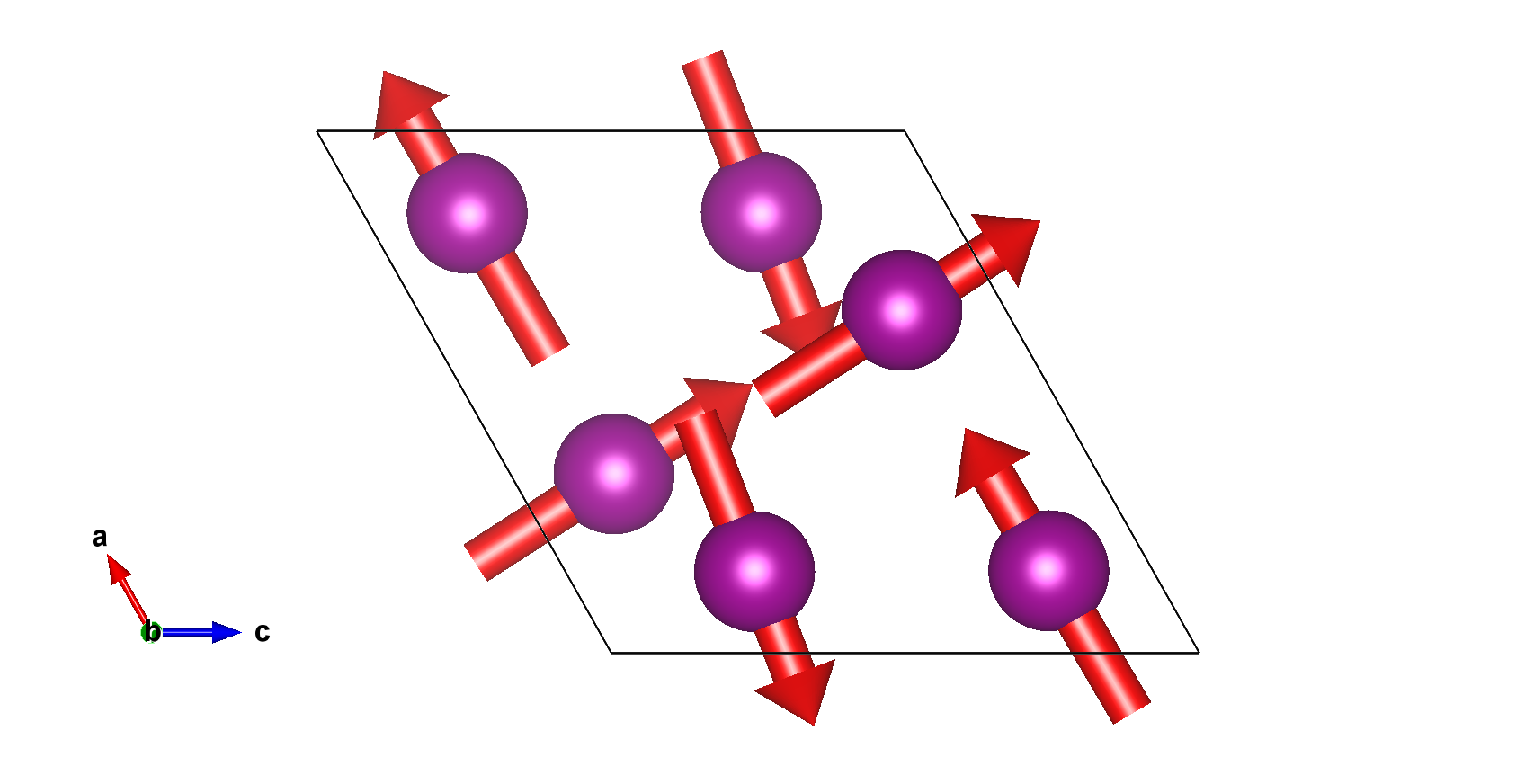

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Mn1	Mn	0.3433(2)	0.2500	0.1766(1)	2	m_x,0,m_z	1.59(16)	2.93(29)	2.56
Mn2	Mn	0.8423(5)	0.2500	0.1771(9)	2	m_x,0,m_z	2.54(21)	-0.045(18)	2.56
Mn3	Mn	0.8439(5)	0.2500	0.6782(1)	2	m_x,0,m_z	-2.75(23)	-0.43(16)	2.57

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ga1	Ga	0.3388(4)	0.2500	0.6677(6)	2

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.34330	0.25000	0.17660	m_x,0,m_z	1.59000	0.00000	2.93000
2	0.65670	0.75000	0.82340	m_x,0,m_z	1.59000	0.00000	2.93000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.84230	0.25000	0.17710	m_x,0,m_z	2.54000	0.00000	-0.04500
2	0.15770	0.75000	0.82290	m_x,0,m_z	2.54000	0.00000	-0.04500

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.84390	0.25000	0.67820	m_x,0,m_z	-2.75000	0.00000	-0.43000
2	0.15610	0.75000	0.32180	m_x,0,m_z	-2.75000	0.00000	-0.43000

Atom	x	y	z
1	0.33880	0.25000	0.66770
2	0.66120	0.75000	0.33230

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Mn1	Mn	0.3433(2)	0.2500	0.1766(1)	2	m_x,0,m_z	1.59(16)	2.93(29)	2.56
Mn2	Mn	0.8423(5)	0.2500	0.1771(9)	2	m_x,0,m_z	2.54(21)	-0.045(18)	2.56
Mn3	Mn	0.8439(5)	0.2500	0.6782(1)	2	m_x,0,m_z	-2.75(23)	-0.43(16)	2.57

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.34330	0.25000	0.17660	m_x,0,m_z	1.59000	0.00000	2.93000
2	0.65670	0.75000	0.82340	m_x,0,m_z	1.59000	0.00000	2.93000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.84230	0.25000	0.17710	m_x,0,m_z	2.54000	0.00000	-0.04500
2	0.15770	0.75000	0.82290	m_x,0,m_z	2.54000	0.00000	-0.04500

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.84390	0.25000	0.67820	m_x,0,m_z	-2.75000	0.00000	-0.43000
2	0.15610	0.75000	0.32180	m_x,0,m_z	-2.75000	0.00000	-0.43000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	6
