MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

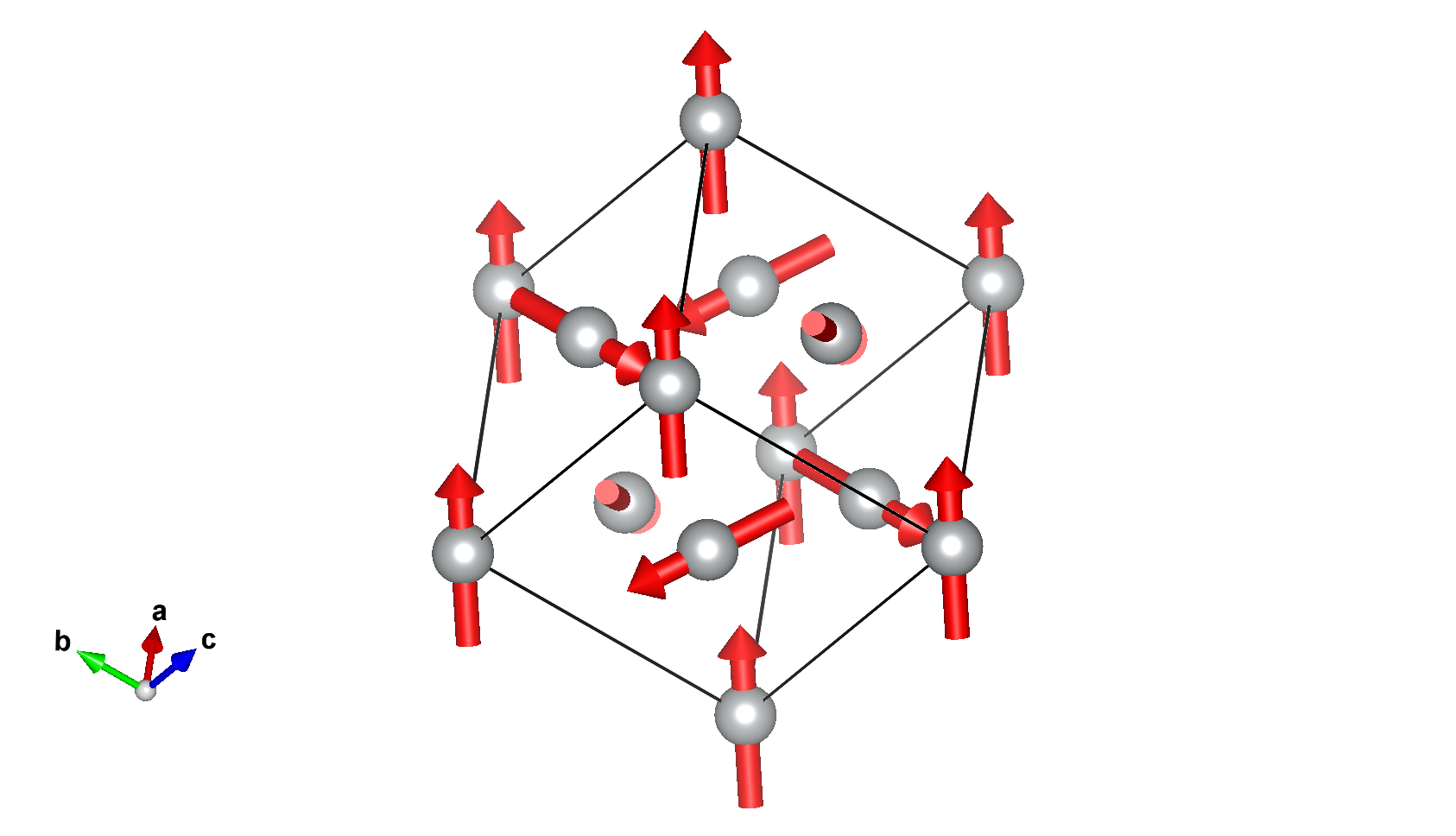

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ni1	Ni	0	0	0	4	m_x,m_x,m_x	0.389(4)	0.389(4)	0.389(4)	0.67

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
S1	S	0.39361(10)	0.39361(10)	0.39361(10)	8

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_x	0.38900	0.38900	0.38900
2	0.50000	0.00000	0.50000	-m_x,-m_x,m_x	-0.38900	-0.38900	0.38900
3	0.50000	0.50000	0.00000	m_x,-m_x,-m_x	0.38900	-0.38900	-0.38900
4	0.00000	0.50000	0.50000	-m_x,m_x,-m_x	-0.38900	0.38900	-0.38900

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ni1	Ni	0	0	0	4	m_x,m_x,m_x	0.389(4)	0.389(4)	0.389(4)	0.67

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_x,m_x	0.38900	0.38900	0.38900
2	0.50000	0.00000	0.50000	-m_x,-m_x,m_x	-0.38900	-0.38900	0.38900
3	0.50000	0.50000	0.00000	m_x,-m_x,-m_x	0.38900	-0.38900	-0.38900
4	0.00000	0.50000	0.50000	-m_x,m_x,-m_x	-0.38900	0.38900	-0.38900

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1+	1	1	primary	1

MAGNDATA: A Collection of magnetic structures with portable cif-type files
