MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0	0	0		2	m_x,m_y,m_z	-0.5(5)	0.0	-3.33(11)	3.46
Fe2	Fe	0.2640	0	0.8680	1	4	m_x,m_y,m_z	-0.0(4)	0.0	3.72(10)	3.72

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
Sr1	Sr	0.8620	0	0.5690	1	4
Sr2	Sr	0.6052	0	0.6974	0.75	4
La1	La	0.6052	0	0.6974	0.25	4
O1	O	0	0.2159	0.7070	0.903	4
O2	O	0.1346	0	0.9327	1	4
O3_1	O	0.2794	0.2534	0.6080	1	4
O3_2	O	0.2794	0.7466	0.1126	1	4
F1	F	0.4350	0	0.7825	0.971	4
F2	F	0.5000	0.2500	0.5400	0.260	4

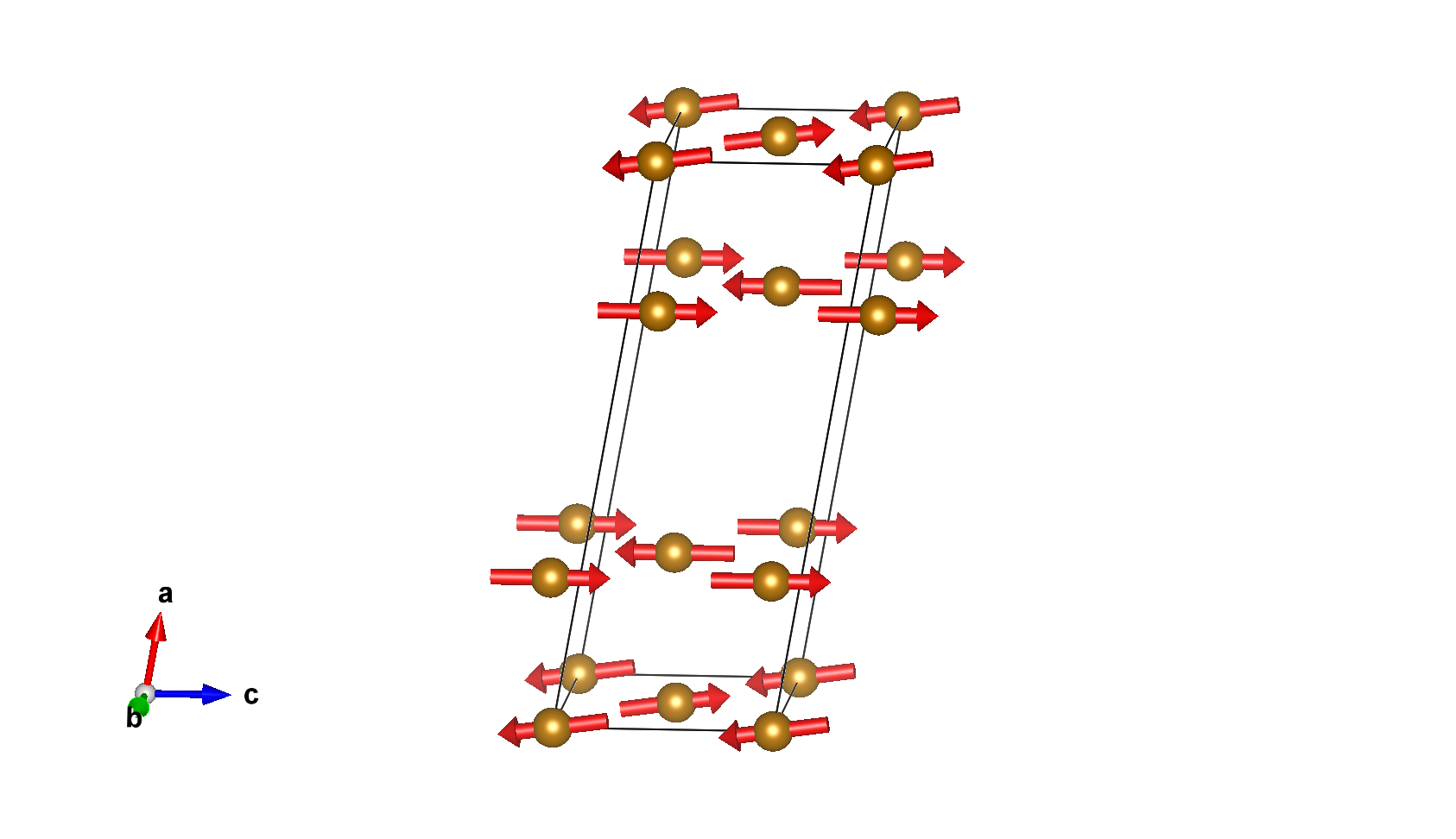

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_y,m_z	-0.50000	0.00000	-3.33000
2	0.00000	0.50000	0.50000	-m_x,m_y,-m_z	0.50000	0.00000	3.33000

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe2:

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.26400	0.00000	0.86800	m_x,m_y,m_z	3.72000
2	0.73600	0.50000	0.63200	-m_x,m_y,-m_z	-3.72000
3	0.73600	0.00000	0.13200	m_x,m_y,m_z	3.72000
4	0.26400	0.50000	0.36800	-m_x,m_y,-m_z	-3.72000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Sr1:

Set of atoms in the unit cell related by symmetry with the atom Sr2:

Set of atoms in the unit cell related by symmetry with the atom La1:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3_1:

Set of atoms in the unit cell related by symmetry with the atom O3_2:

Set of atoms in the unit cell related by symmetry with the atom F1:

Set of atoms in the unit cell related by symmetry with the atom F2:

[Hide]

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0	0	0		2	m_x,m_y,m_z	-0.5(5)	0.0	-3.33(11)	3.46
Fe2	Fe	0.2640	0	0.8680	1	4	m_x,m_y,m_z	-0.0(4)	0.0	3.72(10)	3.72
