MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

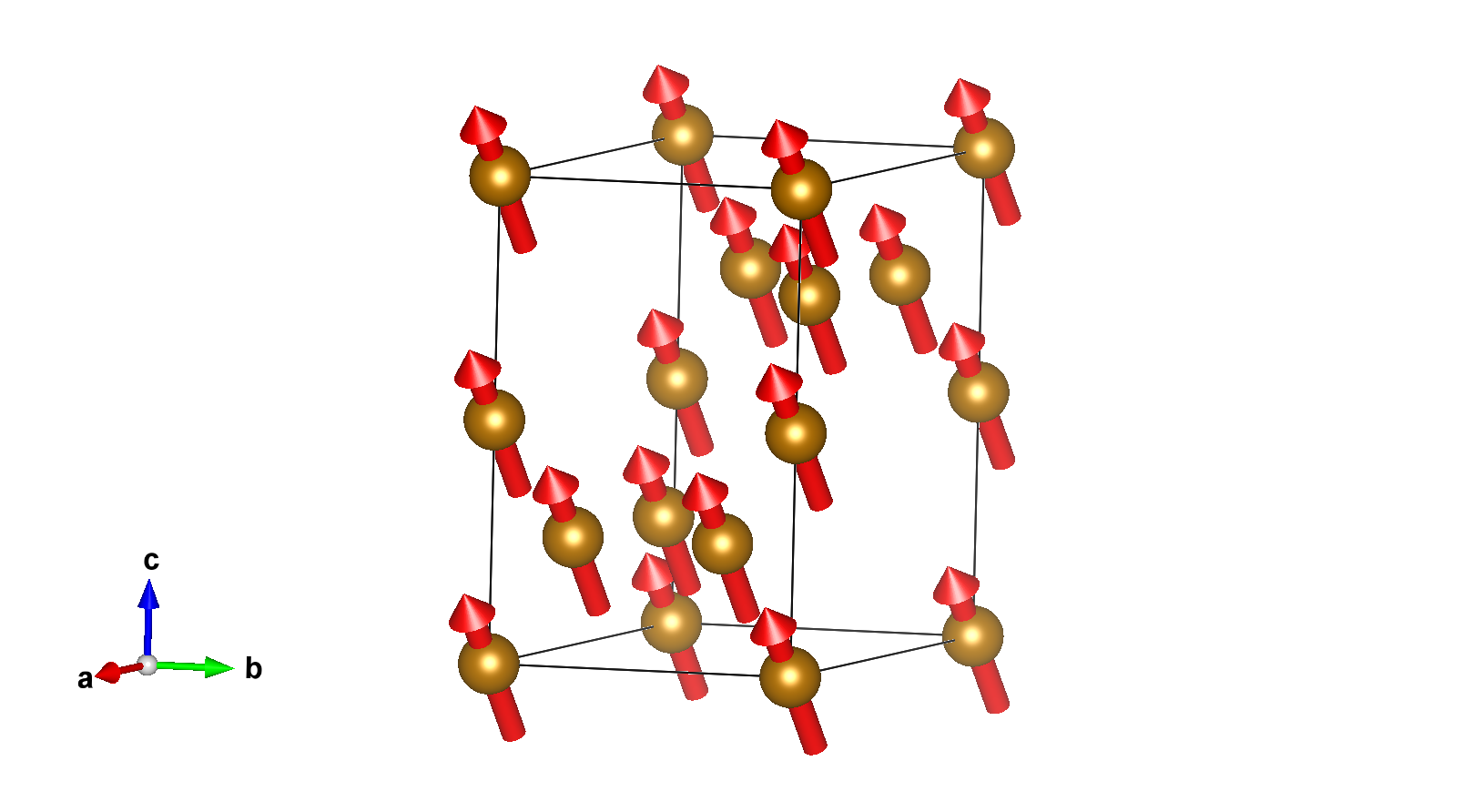

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Fe1	Fe	0.00000	0.00000	0.00000	2	m_x,m_y,m_z	0.725	1.256	1.45
Fe2_1	Fe	0.83200	0.66400	0.25000	2	m_x,0,m_z	0.74	1.282	1.48
Fe2_2	Fe	0.33600	0.16800	0.25000	4	m_x,m_y,m_z	0.74	1.282	1.48

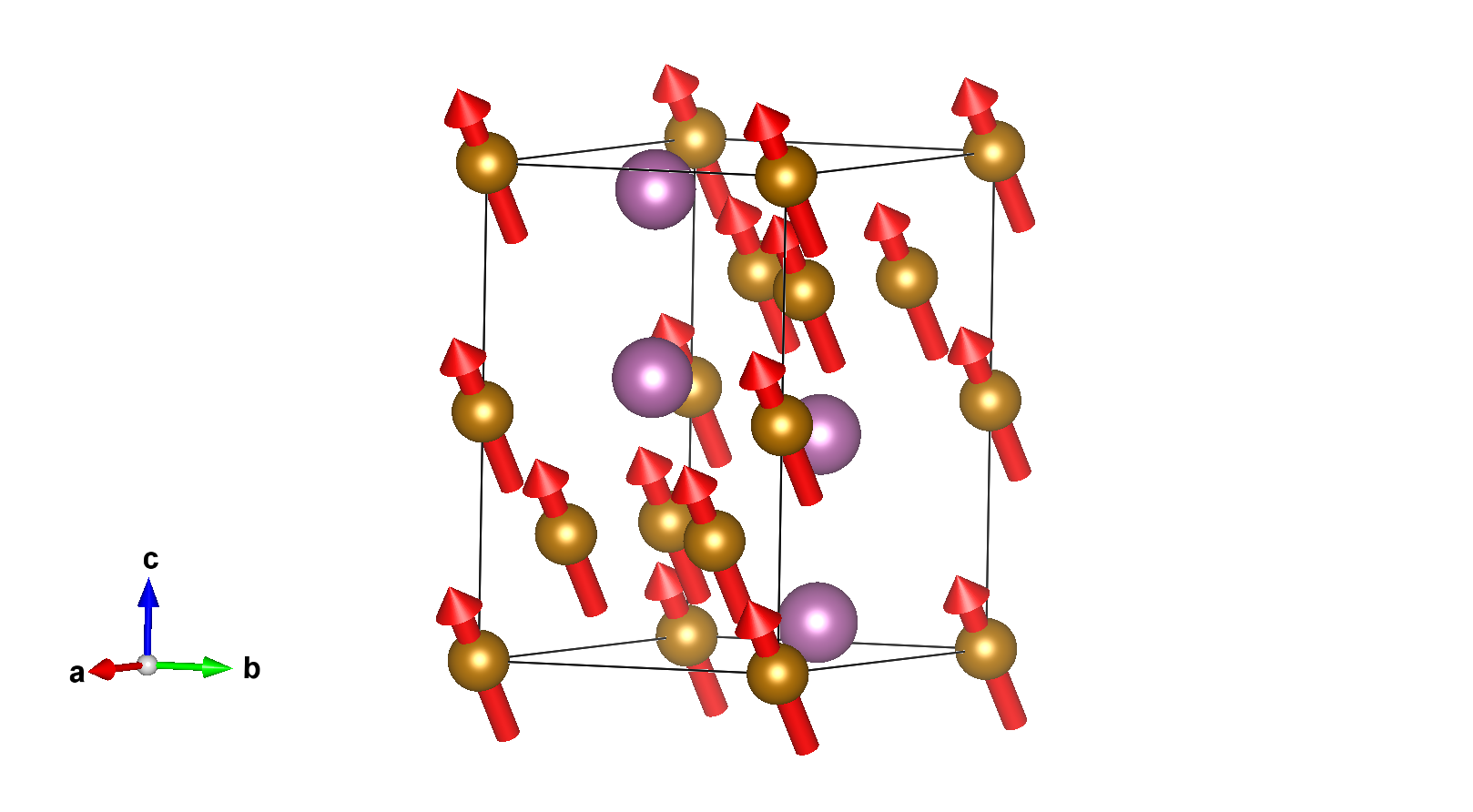

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Sc1	Sc	0.33333	0.66667	0.06100	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_y,m_z	0.72500	0.00000	1.25600
2	0.00000	0.00000	0.50000	m_x-m_y,-m_y,m_z	0.72500	0.00000	1.25600

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.83200	0.66400	0.25000	m_x,0,m_z	0.74000	0.00000	1.28200
2	0.16800	0.33600	0.75000	m_x,0,m_z	0.74000	0.00000	1.28200

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.33600	0.16800	0.25000	m_x,m_y,m_z	0.74000	1.28200
2	0.66400	0.83200	0.75000	m_x,m_y,m_z	0.74000	1.28200
3	0.83200	0.16800	0.25000	m_x-m_y,-m_y,m_z	0.74000	1.28200
4	0.16800	0.83200	0.75000	m_x-m_y,-m_y,m_z	0.74000	1.28200

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_z	\|M\|
Fe1	Fe	0.00000	0.00000	0.00000	2	m_x,m_y,m_z	0.725	1.256	1.45
Fe2_1	Fe	0.83200	0.66400	0.25000	2	m_x,0,m_z	0.74	1.282	1.48
Fe2_2	Fe	0.33600	0.16800	0.25000	4	m_x,m_y,m_z	0.74	1.282	1.48

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	m_x,m_y,m_z	0.72500	0.00000	1.25600
2	0.00000	0.00000	0.50000	m_x-m_y,-m_y,m_z	0.72500	0.00000	1.25600

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.83200	0.66400	0.25000	m_x,0,m_z	0.74000	0.00000	1.28200
2	0.16800	0.33600	0.75000	m_x,0,m_z	0.74000	0.00000	1.28200

Atom	x	y	z	Symmetry constraints on M	M_x	M_z
1	0.33600	0.16800	0.25000	m_x,m_y,m_z	0.74000	1.28200
2	0.66400	0.83200	0.75000	m_x,m_y,m_z	0.74000	1.28200
3	0.83200	0.16800	0.25000	m_x-m_y,-m_y,m_z	0.74000	1.28200
4	0.16800	0.83200	0.75000	m_x-m_y,-m_y,m_z	0.74000	1.28200
