MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.66560	0.49830	0.80918	0.789	8	m_x,m_y,m_z	0.0	2.86(3)	0.0	2.86

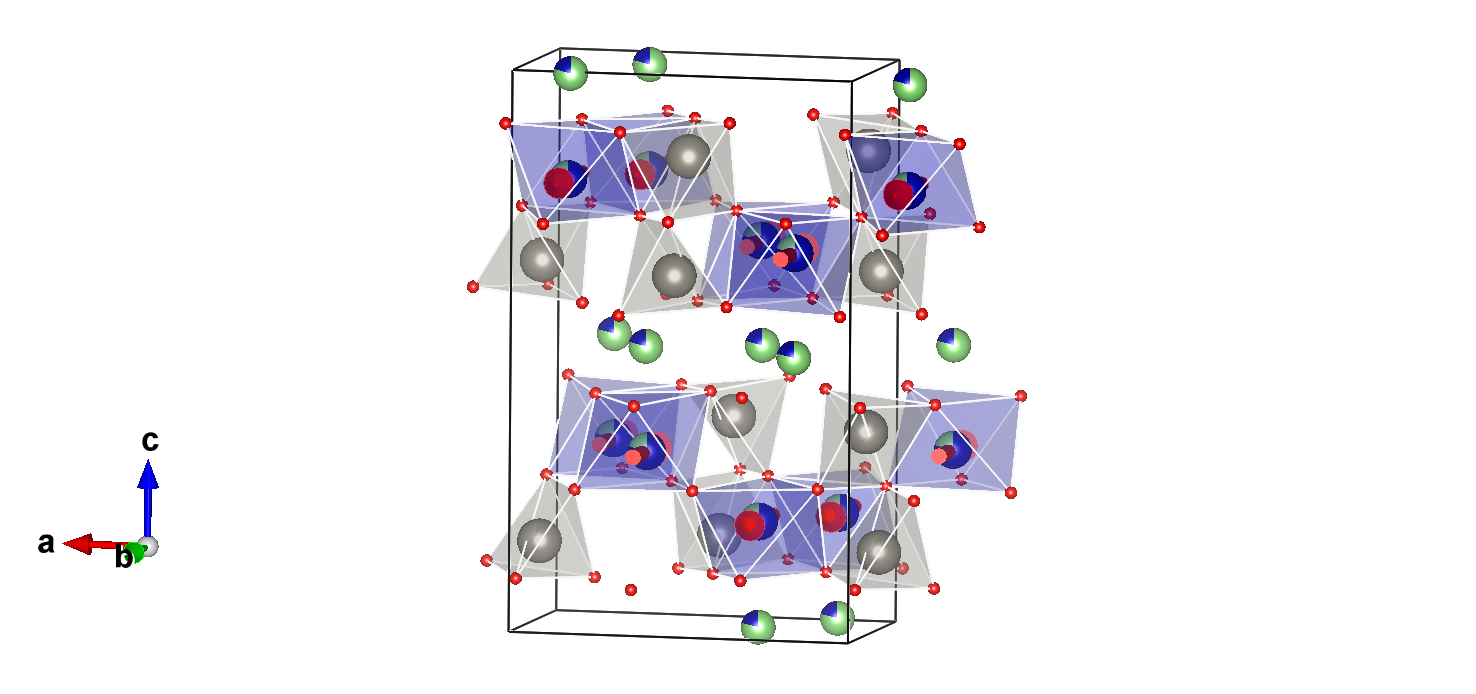

Non-magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity
W1	W	0.52001	0.99440	0.64342	1.	8
Li1	Li	0.33160	0.47930	0.50350	0.789	8
Co2	Co	0.33160	0.47930	0.50350	0.211	8
Li2	Li	0.66560	0.49830	0.80918	0.211	8
O1	O	0.00000	0.22390	0.25000	1.	4
O2	O	0.50580	0.67980	0.91210	1.	8
O3	O	0.64230	0.85350	0.74260	1.	8
O4	O	0.84140	0.66420	0.90200	1.	8
O5	O	0.33850	0.14930	0.92430	1.	8

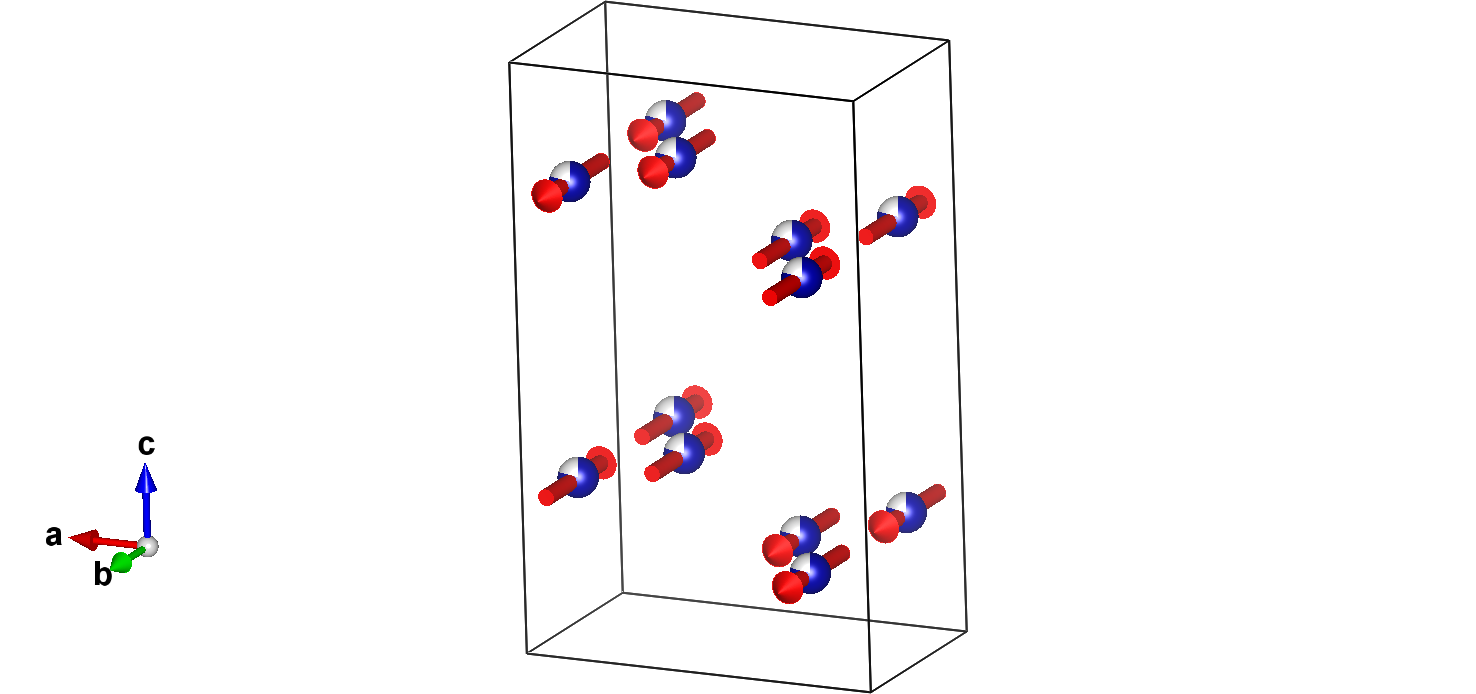

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Co1:

Atom	x	y	z	Symmetry constraints on M	M_y
1	0.66560	0.49830	0.80918	m_x,m_y,m_z	2.86000
2	0.83440	0.00170	0.30918	-m_x,-m_y,m_z	-2.86000
3	0.33440	0.50170	0.19082	m_x,m_y,m_z	2.86000
4	0.16560	0.99830	0.69082	-m_x,-m_y,m_z	-2.86000
5	0.16560	0.00170	0.19082	-m_x,m_y,m_z	2.86000
6	0.33440	0.49830	0.69082	m_x,-m_y,m_z	-2.86000
7	0.83440	0.99830	0.80918	-m_x,m_y,m_z	2.86000
8	0.66560	0.50170	0.30918	m_x,-m_y,m_z	-2.86000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom W1:

Set of atoms in the unit cell related by symmetry with the atom Li1:

Set of atoms in the unit cell related by symmetry with the atom Co2:

Set of atoms in the unit cell related by symmetry with the atom Li2:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3:

Set of atoms in the unit cell related by symmetry with the atom O4:

Set of atoms in the unit cell related by symmetry with the atom O5:

[Hide]

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Co1	Co	0.66560	0.49830	0.80918	0.789	8	m_x,m_y,m_z	0.0	2.86(3)	0.0	2.86

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	3
