MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	x,-y,-z,+1	{ 2₁₀₀ \| 0 }
3	-x,-y,-z,+1	{ -1 \| 0 }
4	-x,y,z,+1	{ m₁₀₀ \| 0 }
5	-x,y,-z+1/2,-1	{ 2'₀₁₀ \| 0 0 1/2 }
6	-x,-y,z+1/2,-1	{ 2'₀₀₁ \| 0 0 1/2 }
7	x,-y,z+1/2,-1	{ m'₀₁₀ \| 0 0 1/2 }
8	x,y,-z+1/2,-1	{ m'₀₀₁ \| 0 0 1/2 }
(1/2,1/2,0) + set click here to show and hide
9	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
10	x+1/2,-y+1/2,-z,+1	{ 2₁₀₀ \| 1/2 1/2 0 }
11	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }
12	-x+1/2,y+1/2,z,+1	{ m₁₀₀ \| 1/2 1/2 0 }
13	-x+1/2,y+1/2,-z+1/2,-1	{ 2'₀₁₀ \| 1/2 1/2 1/2 }
14	-x+1/2,-y+1/2,z+1/2,-1	{ 2'₀₀₁ \| 1/2 1/2 1/2 }
15	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }
16	x+1/2,y+1/2,-z+1/2,-1	{ m'₀₀₁ \| 1/2 1/2 1/2 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

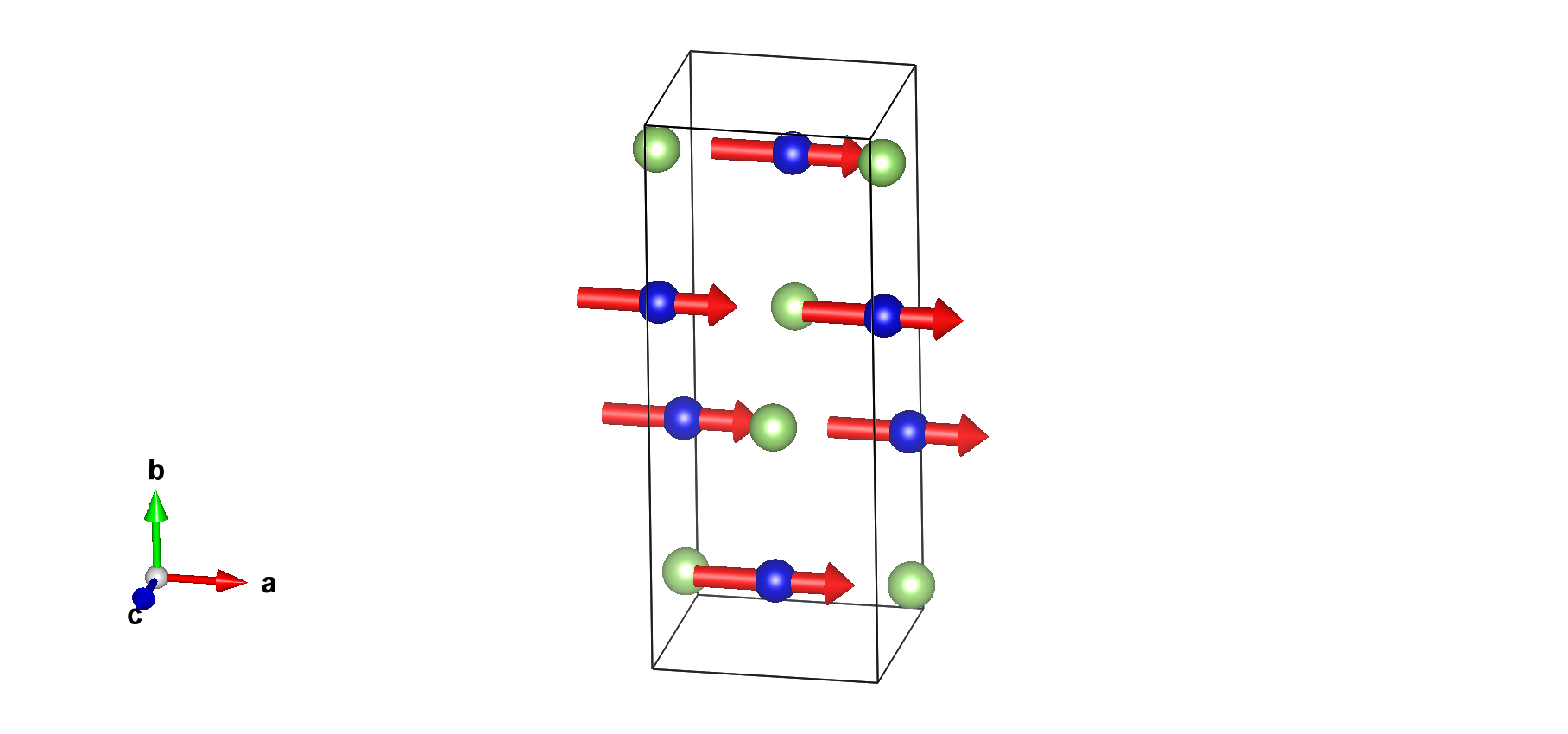

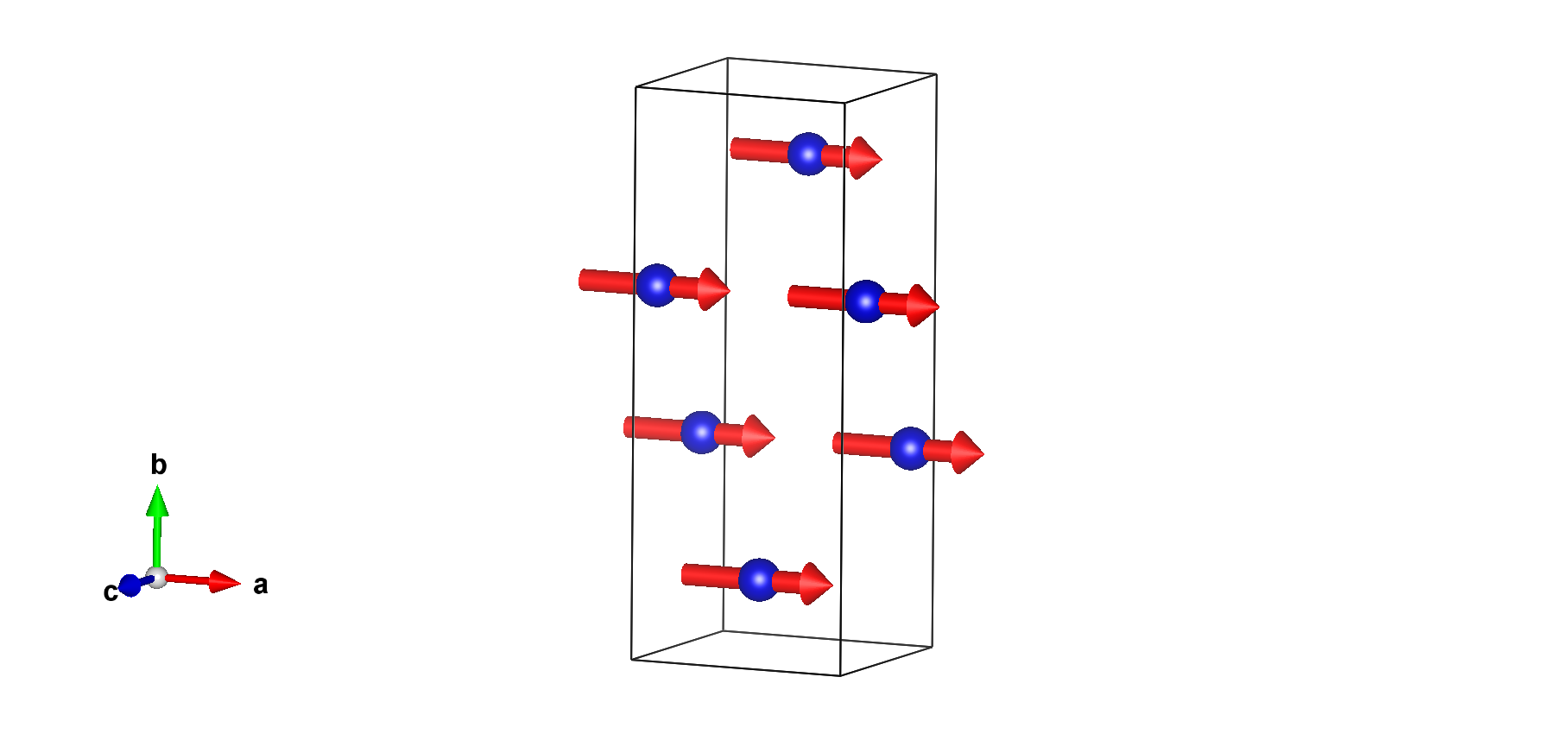

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tm1	Tm	0.00000	0.35910	0.25000	4	m_x,0,0	5.2(1)	0.0	0.0	5.20

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Ga1	Ga	0.00000	0.07720	0.25000	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.35910	0.25000	m_x,0,0	5.20000	0.00000	0.00000
2	0.00000	0.64090	0.75000	m_x,0,0	5.20000	0.00000	0.00000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.85910	0.25000	m_x,0,0	5.20000	0.00000	0.00000
4	0.50000	0.14090	0.75000	m_x,0,0	5.20000	0.00000	0.00000

Atom	x	y	z
1	0.00000	0.07720	0.25000
2	0.00000	0.92280	0.75000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.57720	0.25000
4	0.50000	0.42280	0.75000

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Tm1	Tm	0.00000	0.35910	0.25000	4	m_x,0,0	5.2(1)	0.0	0.0	5.20

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.35910	0.25000	m_x,0,0	5.20000	0.00000	0.00000
2	0.00000	0.64090	0.75000	m_x,0,0	5.20000	0.00000	0.00000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.85910	0.25000	m_x,0,0	5.20000	0.00000	0.00000
4	0.50000	0.14090	0.75000	m_x,0,0	5.20000	0.00000	0.00000

label	dim. small irrep	dim. full irrep	action	number of modes
mGM3+	1	1	primary	1
