MAGNDATA - Collection of Magnetic Structures

Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.33720	0.33720	0.33720	4	m_x,m_x,m_x	1.715	1.715	1.715	2.97
Fe2	Fe	0.61200	0.61200	0.61200	4	m_x,m_x,m_x	0.127	0.127	0.127	0.22

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Cs1	Cs	0.82110	0.82110	0.82110	4
Cs2	Cs	0.04220	0.04220	0.04220	4
Mo1	Mo	0.29980	0.62250	0.52710	12
O1	O	0.27490	0.48180	0.45110	12
O2	O	0.45540	0.67120	0.51600	12
O3	O	0.25570	0.60310	0.68100	12
O4	O	0.20810	0.73550	0.45160	12

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

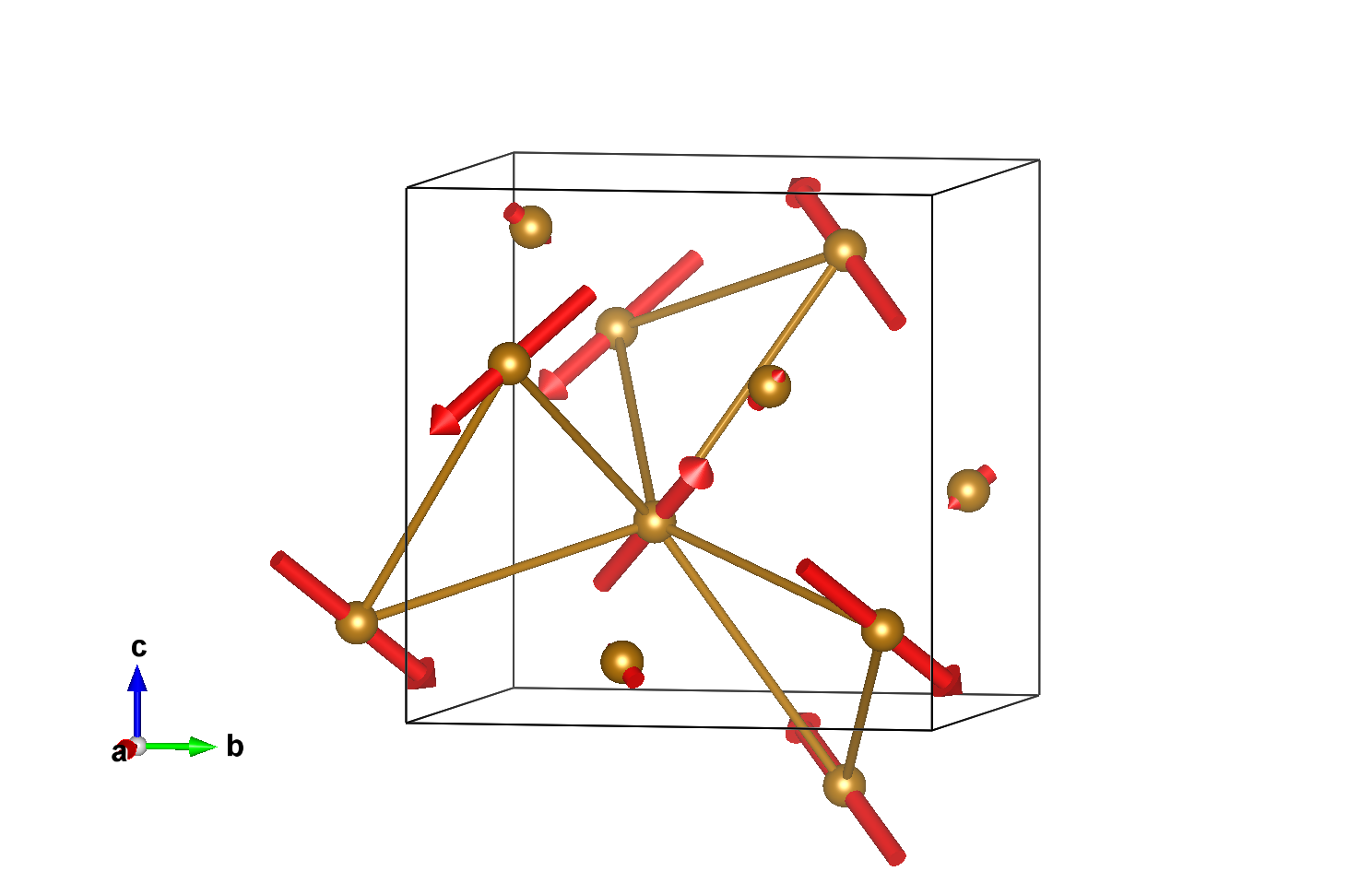

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe1:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.33720	0.33720	0.33720	m_x,m_x,m_x	1.71500	1.71500	1.71500
2	0.83720	0.16280	0.66280	m_x,-m_x,-m_x	1.71500	-1.71500	-1.71500
3	0.66280	0.83720	0.16280	-m_x,m_x,-m_x	-1.71500	1.71500	-1.71500
4	0.16280	0.66280	0.83720	-m_x,-m_x,m_x	-1.71500	-1.71500	1.71500

Set of atoms in the unit cell related by symmetry with the magnetic atom Fe2:

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.61200	0.61200	0.61200	m_x,m_x,m_x	0.12700	0.12700	0.12700
2	0.11200	0.88800	0.38800	m_x,-m_x,-m_x	0.12700	-0.12700	-0.12700
3	0.38800	0.11200	0.88800	-m_x,m_x,-m_x	-0.12700	0.12700	-0.12700
4	0.88800	0.38800	0.11200	-m_x,-m_x,m_x	-0.12700	-0.12700	0.12700

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Cs1:

Set of atoms in the unit cell related by symmetry with the atom Cs2:

Set of atoms in the unit cell related by symmetry with the atom Mo1:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3:

Set of atoms in the unit cell related by symmetry with the atom O4:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Fe1	Fe	0.33720	0.33720	0.33720	4	m_x,m_x,m_x	1.715	1.715	1.715	2.97
Fe2	Fe	0.61200	0.61200	0.61200	4	m_x,m_x,m_x	0.127	0.127	0.127	0.22

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1	1	1	primary	2
