MAGNDATA - Collection of Magnetic Structures

Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y,z,+1	{ 2₀₀₁ \| 0 }
3	y,-x,-z,+1	{ -4⁺₀₀₁ \| 0 }
4	-y,x,-z,+1	{ -4^-₀₀₁ \| 0 }
5	y,x,-z,-1	{ 2'₁₁₀ \| 0 }
6	-y,-x,-z,-1	{ 2'_1-10 \| 0 }
7	-x,y,z,-1	{ m'₁₀₀ \| 0 }
8	x,-y,z,-1	{ m'₀₁₀ \| 0 }
(1/2,1/2,1/2) + set click here to show and hide
9	x+1/2,y+1/2,z+1/2,+1	{ 1 \| 1/2 1/2 1/2 }
10	-x+1/2,-y+1/2,z+1/2,+1	{ 2₀₀₁ \| 1/2 1/2 1/2 }
11	y+1/2,-x+1/2,-z+1/2,+1	{ -4⁺₀₀₁ \| 1/2 1/2 1/2 }
12	-y+1/2,x+1/2,-z+1/2,+1	{ -4^-₀₀₁ \| 1/2 1/2 1/2 }
13	y+1/2,x+1/2,-z+1/2,-1	{ 2'₁₁₀ \| 1/2 1/2 1/2 }
14	-y+1/2,-x+1/2,-z+1/2,-1	{ 2'_1-10 \| 1/2 1/2 1/2 }
15	-x+1/2,y+1/2,z+1/2,-1	{ m'₁₀₀ \| 1/2 1/2 1/2 }
16	x+1/2,-y+1/2,z+1/2,-1	{ m'₀₁₀ \| 1/2 1/2 1/2 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

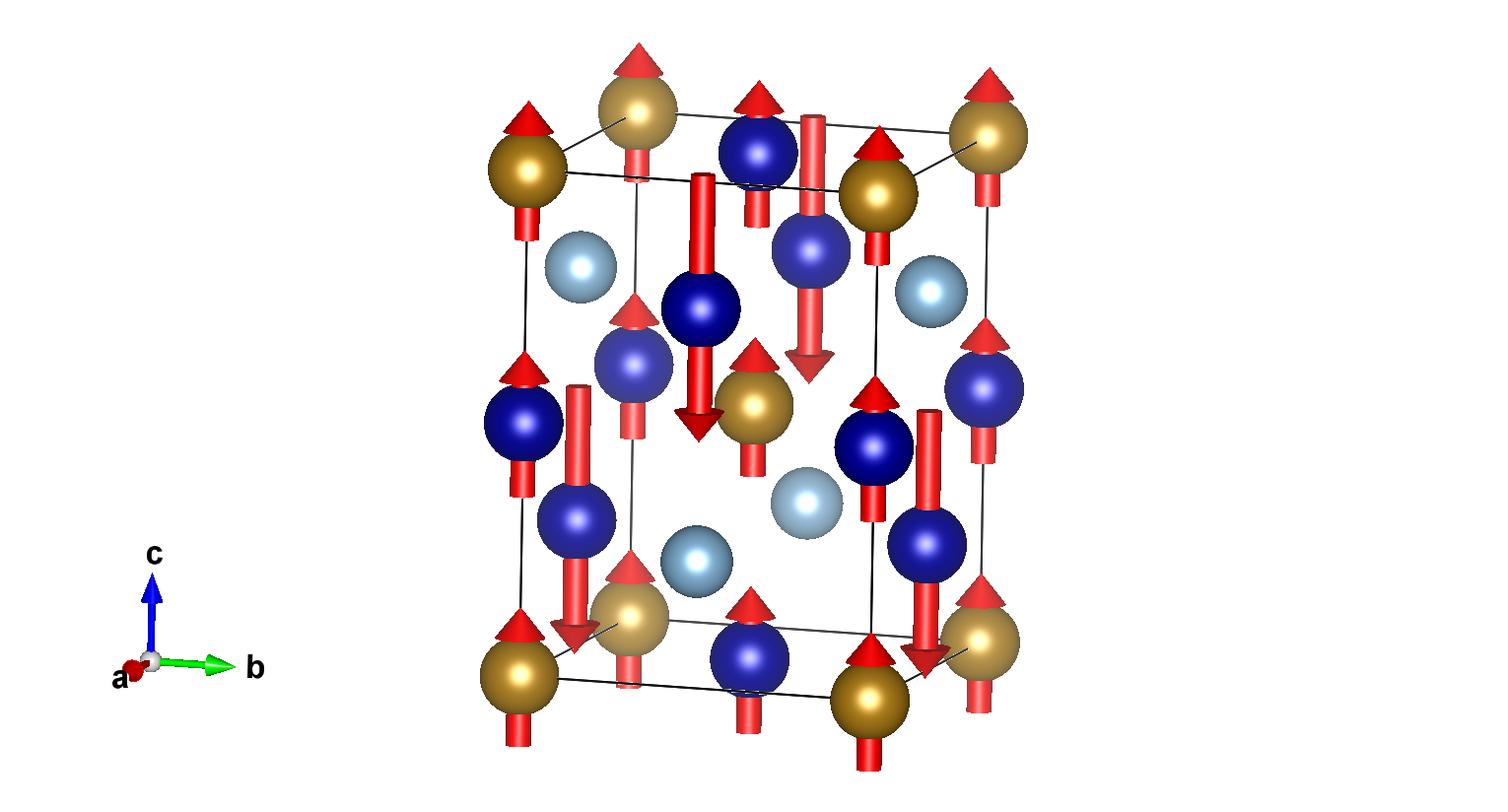

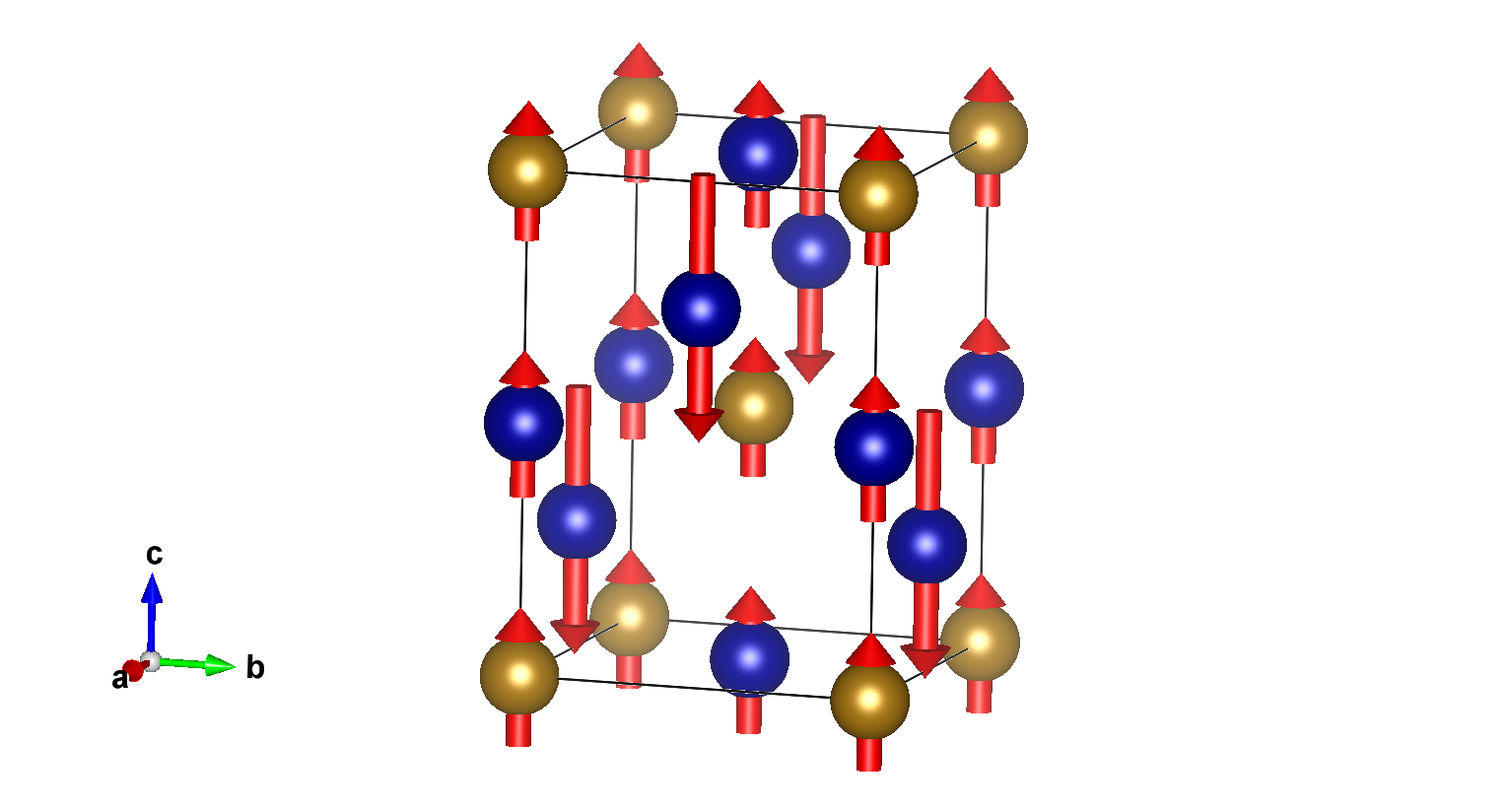

Magnetic atoms:

Label	Atom type	y	z	Multiplicity	Symmetry constraints on M	M_z	\|M\|
Cr1	Cr	0.00000	0.50000	2	0,0,m_z	0.362(2)	0.36
Cr2	Cr	0.50000	0.75000	2	0,0,m_z	-0.664(3)	0.66
Co1	Co	0.00000	0.00000	2	0,0,m_z	0.343(1)	0.34

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Al1	Al	0.00000	0.50000	0.25000	2

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	0.36200
(1/2,1/2,1/2) + set click here to show and hide
2	0.50000	0.50000	0.00000	0,0,m_z	0.00000	0.00000	0.36200

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.50000	0.75000	0,0,m_z	0.00000	0.00000	-0.66400
(1/2,1/2,1/2) + set click here to show and hide
2	0.50000	0.00000	0.25000	0,0,m_z	0.00000	0.00000	-0.66400

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	0.34300
(1/2,1/2,1/2) + set click here to show and hide
2	0.50000	0.50000	0.50000	0,0,m_z	0.00000	0.00000	0.34300

Atom	x	y	z
1	0.00000	0.50000	0.25000
(1/2,1/2,1/2) + set click here to show and hide
2	0.50000	0.00000	0.75000

Label	Atom type	y	z	Multiplicity	Symmetry constraints on M	M_z	\|M\|
Cr1	Cr	0.00000	0.50000	2	0,0,m_z	0.362(2)	0.36
Cr2	Cr	0.50000	0.75000	2	0,0,m_z	-0.664(3)	0.66
Co1	Co	0.00000	0.00000	2	0,0,m_z	0.343(1)	0.34

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.50000	0,0,m_z	0.00000	0.00000	0.36200
(1/2,1/2,1/2) + set click here to show and hide
2	0.50000	0.50000	0.00000	0,0,m_z	0.00000	0.00000	0.36200

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.50000	0.75000	0,0,m_z	0.00000	0.00000	-0.66400
(1/2,1/2,1/2) + set click here to show and hide
2	0.50000	0.00000	0.25000	0,0,m_z	0.00000	0.00000	-0.66400

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,m_z	0.00000	0.00000	0.34300
(1/2,1/2,1/2) + set click here to show and hide
2	0.50000	0.50000	0.50000	0,0,m_z	0.00000	0.00000	0.34300

label	dim. small irrep	dim. full irrep	action	number of modes
mGM3	1	1	primary	3
