Label	Atom type	x	y	z	Occupancy	Multiplicity
Zn1	Zn	0.00000	0.00000	0.00000	0.83	1
N1	N	0.50000	0.50000	0.50000	0.99	1

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.50000	0.50000	0,m_y,-m_y	0.00000	1.84000	-1.84000
2	0.50000	0.00000	0.50000	-m_y,0,m_y	-1.84000	0.00000	1.84000
3	0.50000	0.50000	0.00000	m_y,-m_y,0	1.84000	-1.84000	0.00000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,0	0.00000	0.00000	0.00000

Atom	x	y	z
1	0.00000	0.00000	0.00000

Atom	x	y	z
1	0.50000	0.50000	0.50000

Reference: S. Deng, Y. Sun, L. Wang, Z. Shi, H. Wu, Q. Huang, J. Yan, K. Shi, P. Hu, A. Zaoui, C. Wang, J. Phys. Chem. C (2024) 119 24983 - .
DOI: 10.1021/acs.jpcc.5b07225
Atomic positions from: same reference

Parent space group (paramagnetic phase): Pm-3m (#221)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 140 K
Experiment Temperature: 10 K

Lattice parameters of the magnetic unit cell:
3.90270 3.90270 3.90270 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: R-3m (#166.97) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (a-b,b-c,a+b+c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: -3m (20.1.71)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

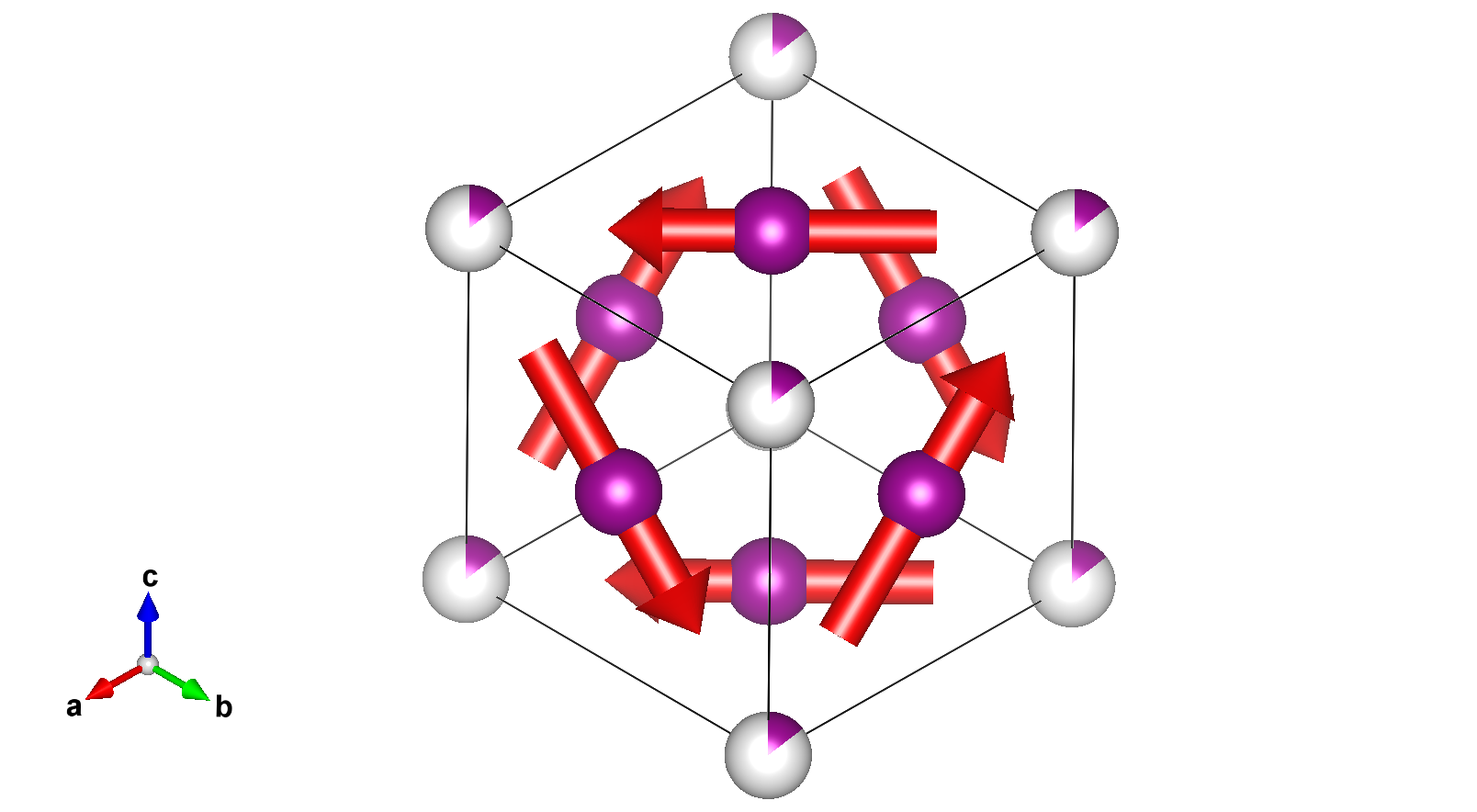

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.00000	0.50000	0.50000	1.	3	0,m_y,-m_y	0.0	1.84	-1.84	2.60
Mn2	Mn	0.00000	0.00000	0.00000	0.15	1	0,0,0	0.0	0.0	0.0	0.00

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.50000	0.50000	0,m_y,-m_y	0.00000	1.84000	-1.84000
2	0.50000	0.00000	0.50000	-m_y,0,m_y	-1.84000	0.00000	1.84000
3	0.50000	0.50000	0.00000	m_y,-m_y,0	1.84000	-1.84000	0.00000

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.00000	0.00000	0,0,0	0.00000	0.00000	0.00000

[Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mGM5+	3	3	special	primary	1

Comments:

NPD
Intermediate phase of the nominal compound estabilized at low temperature through doping of the Zn site.

Comments (symmetry):

1k magnetic structure
3-dim irrep along a special direction
