Magnetic structure with all atoms

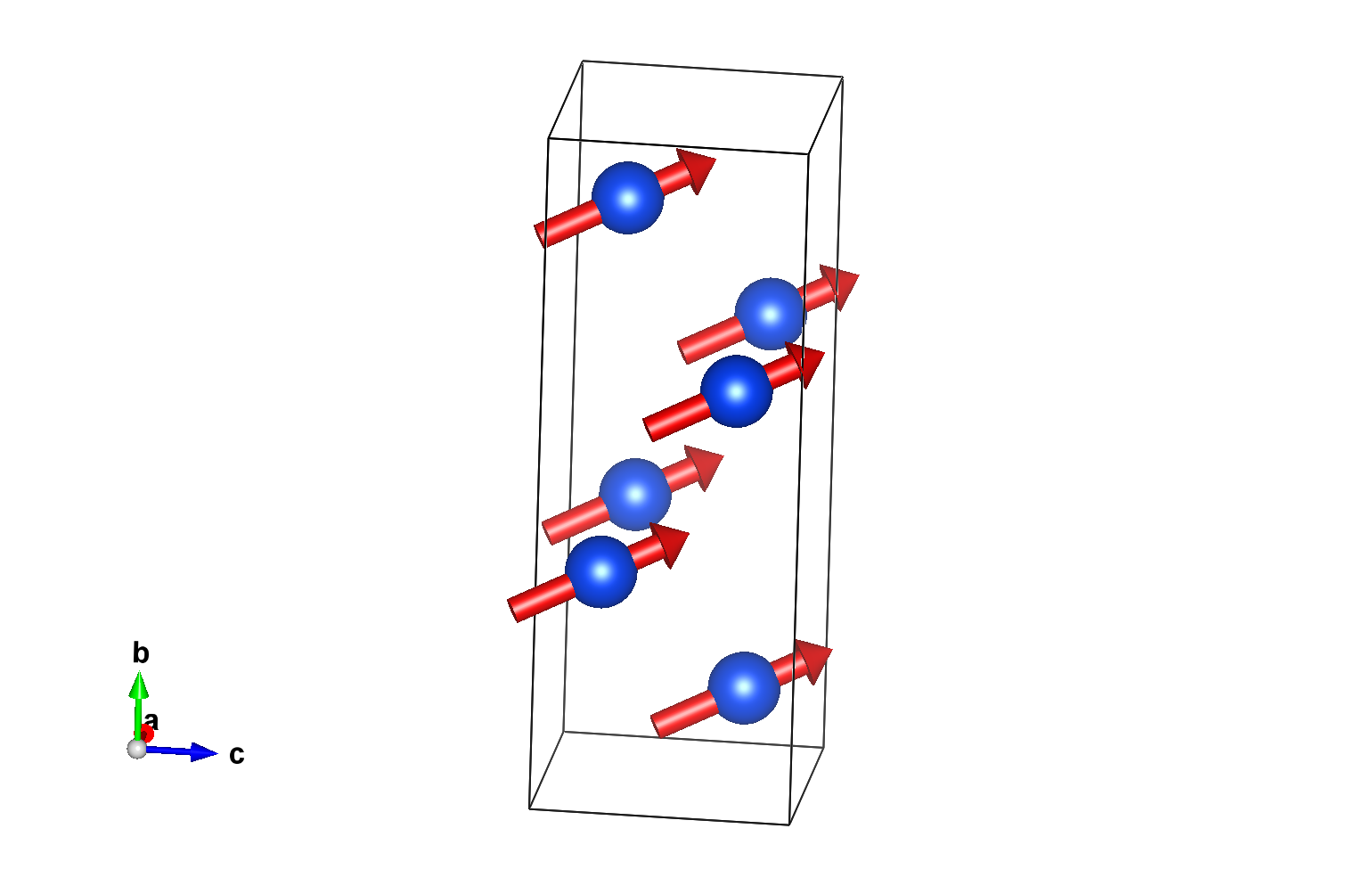

Magnetic structure with only magnetic atoms

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,-y,-z,+1	{ -1 \| 0 }
(1/2,1/2,0) + set click here to show and hide
3	x+1/2,y+1/2,z,+1	{ 1 \| 1/2 1/2 0 }
4	-x+1/2,-y+1/2,-z,+1	{ -1 \| 1/2 1/2 0 }

N	(x,y,z)	Seitz notation
1	x,y,z,+1	1
2	-x,-y,-z,+1	-1

Label	Atom type	x	y	z	Multiplicity
Ga1	Ga	0.00000	0.07510	0.25000	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.35940	0.25000	m_x,m_y,m_z	2.89000	3.32000	7.62000
2	0.00000	0.64060	0.75000	m_x,m_y,m_z	2.89000	3.32000	7.62000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.85940	0.25000	m_x,m_y,m_z	2.89000	3.32000	7.62000
4	0.50000	0.14060	0.75000	m_x,m_y,m_z	2.89000	3.32000	7.62000

Atom	x	y	z
1	0.00000	0.07510	0.25000
2	0.00000	0.92490	0.75000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.57510	0.25000
4	0.50000	0.42490	0.75000

Reference: R. A. Susilo, S. Munoz Perez, R. Cobas, J. M. Cadogan, M. Avdeev, Journal of Physics: Conference Series (2012) 340 012071
DOI: 10.1088/1742-6596/340/1/012071
Atomic positions from: same reference

Parent space group (paramagnetic phase): Cmcm (#63)
Propagation vector: k1 (0, 0, 0)

Transition Temperature: 20 K
Experiment Temperature: 3 K

Lattice parameters of the magnetic unit cell:
4.27580 10.75820 4.03370 90.00 90.00 90.00
Transformation from parent structure: (a,b,c;0,0,0)
    [View matrix form]

BNS Magnetic Space Group: P-1.1 (#2.4) (non-standard)
    [View symmetry operations]
Transformation to a standard setting: (1/2a+1/2b,-1/2a+1/2b,c;0,0,0)
    [View matrix form]
Systematic absences for this Magnetic Space Group via

Magnetic Point Group: -1 (2.1.3)
    [View symmetry operations]
Symmetry-adapted form of material tensors via
Symmetry-adapted form of material tensors for domain-related equivalent structures via

Positions and magnetic moments of symmetry independent atoms:
From now on, magnetic atoms are in boldface and colored in red. Magnetic moments are expressed in units of μB

     [Show only magnetic atoms]                                             Use MVISUALIZE to:
     [Show all the atoms]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ho1	Ho	0.00000	0.35940	0.25000	4	m_x,m_y,m_z	2.89	3.32	7.62	8.80

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.35940	0.25000	m_x,m_y,m_z	2.89000	3.32000	7.62000
2	0.00000	0.64060	0.75000	m_x,m_y,m_z	2.89000	3.32000	7.62000
(1/2,1/2,0) + set click here to show and hide
3	0.50000	0.85940	0.25000	m_x,m_y,m_z	2.89000	3.32000	7.62000
4	0.50000	0.14060	0.75000	m_x,m_y,m_z	2.89000	3.32000	7.62000

[Show all magnetic atoms in unit cell and their moment relations]

Active Irreps:

label	dim. small irrep	dim. full irrep	action	number of modes
mGM2+	1	1	primary	1
mGM4+	1	1	primary	1
mGM3+	1	1	primary	1

Comments:

NPD
Ferromagnet along a general direction

Comments (symmetry):

1k magnetic structure
Three 1-dim irreps are necessary as primary irreps for this model
The three spin components correspond to three different irreps
Between 66K and 20K a ferromagnetic phase along c is reported (see #0.1047)
