Transformation matrix from the setting of the parent structure (a_p,b_p,c_p) to the working setting (a,b,c):

[Hide]

Symmetry operations of the magnetic space group in the setting used:

N	(x,y,z)	Seitz notation
1	x,y,z,+1	{ 1 \| 0 }
2	-x,y,z,+1	{ m₁₀₀ \| 0 }
3	x,-y+1/2,z,-1	{ m'₀₁₀ \| 0 1/2 0 }
4	x,y+1/2,-z,-1	{ m'₀₀₁ \| 0 1/2 0 }
5	-x,-y,-z,+1	{ -1 \| 0 }
6	x,-y,-z,+1	{ 2₁₀₀ \| 0 }
7	-x,y+1/2,-z,-1	{ 2'₀₁₀ \| 0 1/2 0 }
8	-x,-y+1/2,z,-1	{ 2'₀₀₁ \| 0 1/2 0 }
(1/2,1/2,1/2) + set click here to show and hide
9	x+1/2,y+1/2,z+1/2,+1	{ 1 \| 1/2 1/2 1/2 }
10	-x+1/2,y+1/2,z+1/2,+1	{ m₁₀₀ \| 1/2 1/2 1/2 }
11	x+1/2,-y,z+1/2,-1	{ m'₀₁₀ \| 1/2 0 1/2 }
12	x+1/2,y,-z+1/2,-1	{ m'₀₀₁ \| 1/2 0 1/2 }
13	-x+1/2,-y+1/2,-z+1/2,+1	{ -1 \| 1/2 1/2 1/2 }
14	x+1/2,-y+1/2,-z+1/2,+1	{ 2₁₀₀ \| 1/2 1/2 1/2 }
15	-x+1/2,y,-z+1/2,-1	{ 2'₀₁₀ \| 1/2 0 1/2 }
16	-x+1/2,-y,z+1/2,-1	{ 2'₀₀₁ \| 1/2 0 1/2 }

[Hide]

Transformation matrix from the working setting (a,b,c) to the standard setting of the magnetic space group (a_s,b_s,c_s):

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

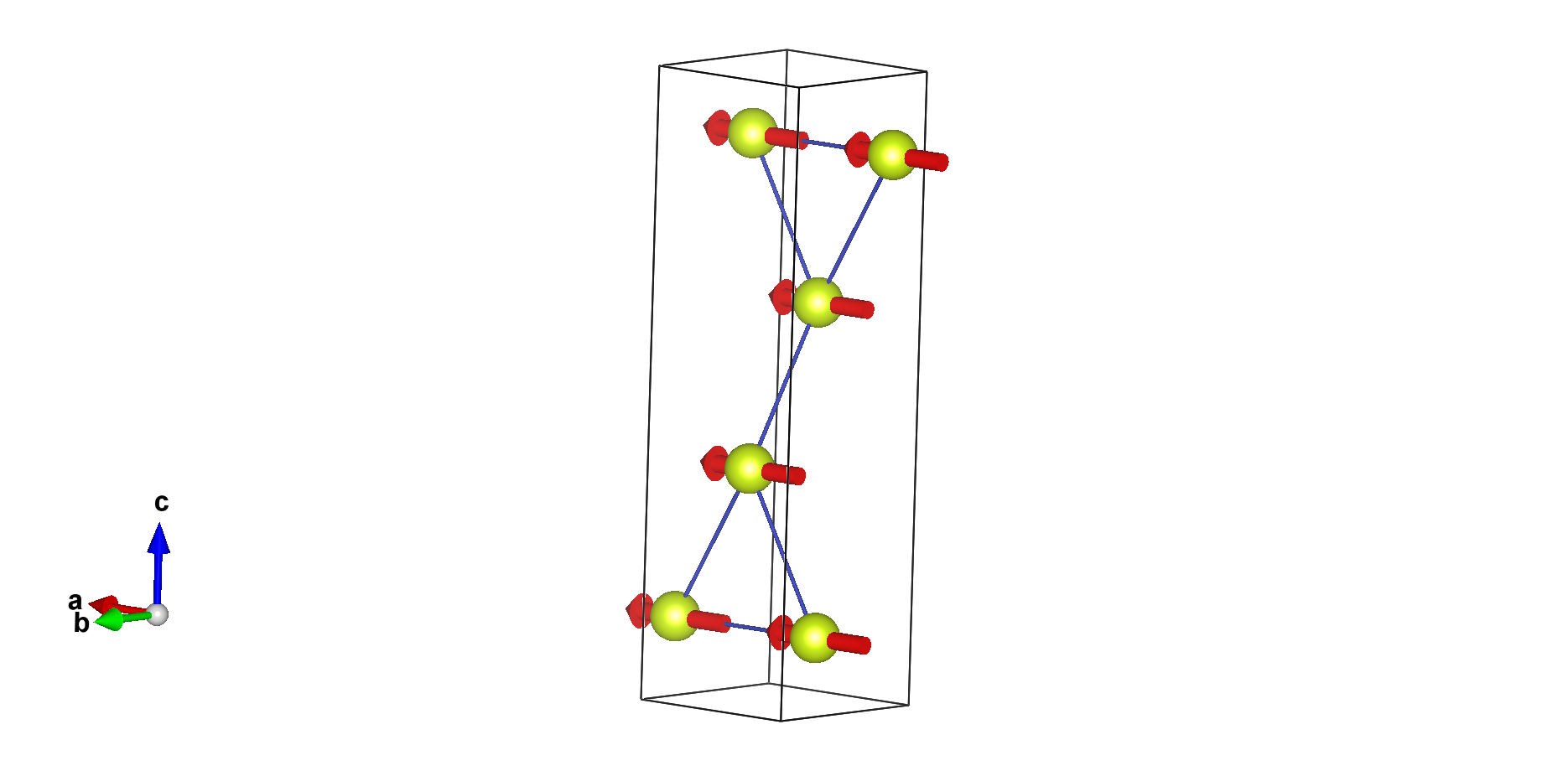

Magnetic atoms:

Label	Atom type	x	y	z	Occupancy	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ce1	Ce	0.00000	0.25000	0.87500	1.00000	4	M_x,0,0	0.709(19)	0.0	0.0	0.71

Non-magnetic atoms:

Label	Atom type	y	z	Occupancy	Multiplicity
Ag1_1	Ag	0.25000	0.29185	0.17	4
Ag1_2	Ag	0.25000	0.45815	0.17	4
Si1_1	Si	0.25000	0.29185	0.80	4
Si1_2	Si	0.25000	0.45815	0.80	4

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.25000	0.87500	m_x,0,0	0.70900	0.00000	0.00000
2	0.00000	0.75000	0.12500	m_x,0,0	0.70900	0.00000	0.00000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.37500	m_x,0,0	0.70900	0.00000	0.00000
4	0.50000	0.25000	0.62500	m_x,0,0	0.70900	0.00000	0.00000

Atom	x	y	z
1	0.00000	0.25000	0.29185
2	0.00000	0.75000	0.70815
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.79185
4	0.50000	0.25000	0.20815

Atom	x	y	z
1	0.00000	0.25000	0.45815
2	0.00000	0.75000	0.54185
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.95815
4	0.50000	0.25000	0.04185

Atom	x	y	z
1	0.00000	0.25000	0.29185
2	0.00000	0.75000	0.70815
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.79185
4	0.50000	0.25000	0.20815

Atom	x	y	z
1	0.00000	0.25000	0.45815
2	0.00000	0.75000	0.54185
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.95815
4	0.50000	0.25000	0.04185

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Ce1	Ce	0.00000	0.25000	0.87500	4	M_x,0,0	0.709(19)	0.0	0.0	0.71

Atom	x	y	z	Symmetry constraints on M	M_x	M_y	M_z
1	0.00000	0.25000	0.87500	m_x,0,0	0.70900	0.00000	0.00000
2	0.00000	0.75000	0.12500	m_x,0,0	0.70900	0.00000	0.00000
(1/2,1/2,1/2) + set click here to show and hide
3	0.50000	0.75000	0.37500	m_x,0,0	0.70900	0.00000	0.00000
4	0.50000	0.25000	0.62500	m_x,0,0	0.70900	0.00000	0.00000

label	dim. full irrep	dim. small irrep	direction	action	number of modes
mGM5+	2	2	special	primary	1
