Symmetry operations of the magnetic space group in the setting used:

[Hide]

Symmetry operations of the magnetic point group in the setting used:

[Hide]

Magnetic atoms:

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.333333	0.666667	0.0626(5)	4	0,0,m_z	0.0	0.0	-4.71(3)	4.71
Ni1	Ni	0.9883(1)	0.3482(1)	0.9108(1)	12	m_x,m_y,m_z	0.0	0.0	1.96(2)	1.96

Non-magnetic atoms:

Label	Atom type	x	y	z	Multiplicity
Pb1	Pb	0.00000	0.00000	0.00000	2
Te1	Te	0.3626(3)	0.0257(3)	0.25	6
O1	O	0.1017(2)	0.3065(2)	0.0903(2)	12
O2	O	0.1299(2)	0.6070(2)	0.9117(2)	12
O3	O	0.4191(3)	0.5521(4)	0.25	6
O4	O	0.2911(3)	0.1842(3)	0.25	6

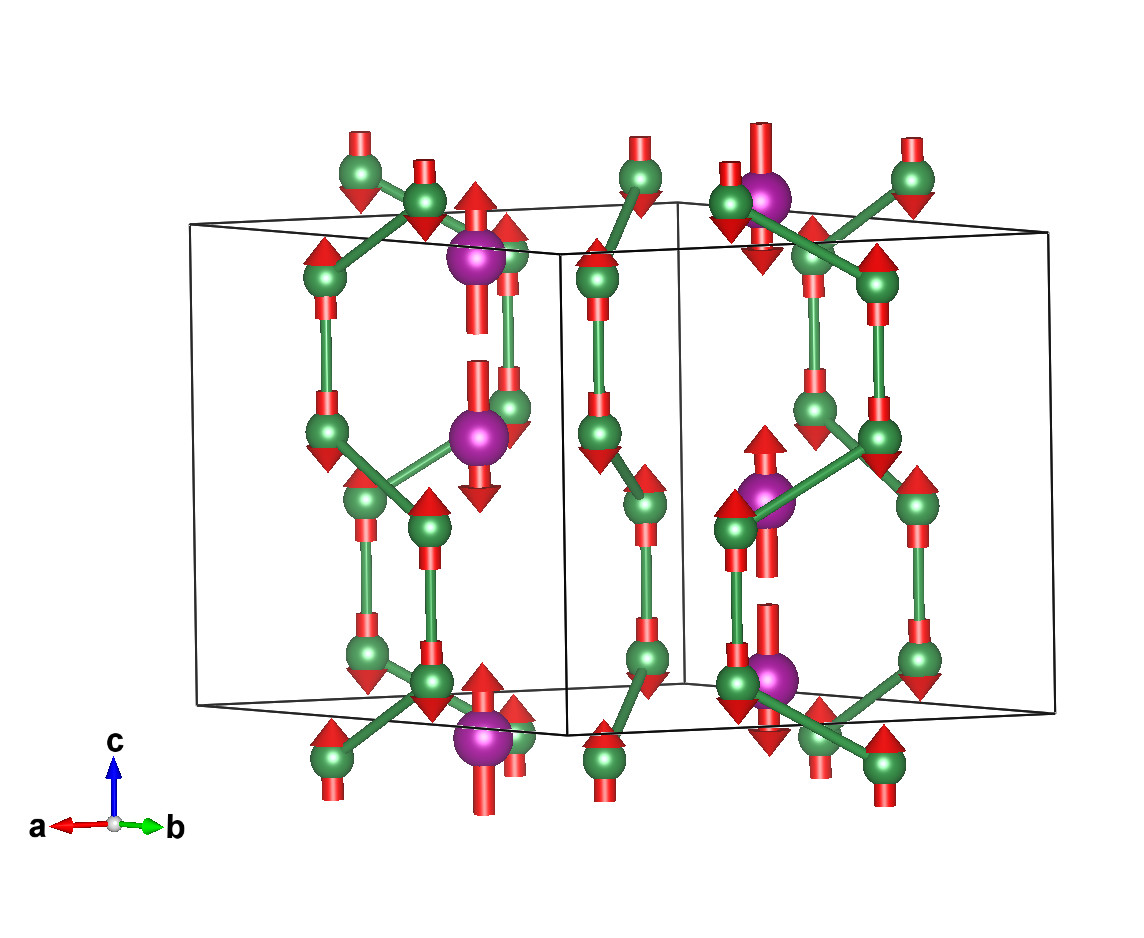

Positions and magnetic moments of all atoms in unit cell, with magnetic moment relations explicitly given:

Magnetic atoms:

Set of atoms in the unit cell related by symmetry with the magnetic atom Mn1:

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.33333	0.66667	0.06260	0,0,m_z	-4.71000
2	0.66667	0.33333	0.56260	0,0,m_z	-4.71000
3	0.66667	0.33333	0.93740	0,0,-m_z	4.71000
4	0.33333	0.66667	0.43740	0,0,-m_z	4.71000

Set of atoms in the unit cell related by symmetry with the magnetic atom Ni1:

Atom	x	y	z	Symmetry constraints on M	M_z
1	0.98830	0.34820	0.91080	m_x,m_y,m_z	1.96000
2	0.64010	0.98830	0.41080	m_x-m_y,m_x,m_z	1.96000
3	0.65180	0.64010	0.91080	-m_y,m_x-m_y,m_z	1.96000
4	0.01170	0.65180	0.41080	-m_x,-m_y,m_z	1.96000
5	0.35990	0.01170	0.91080	-m_x+m_y,-m_x,m_z	1.96000
6	0.34820	0.35990	0.41080	m_y,-m_x+m_y,m_z	1.96000
7	0.01170	0.65180	0.08920	-m_x,-m_y,-m_z	-1.96000
8	0.35990	0.01170	0.58920	-m_x+m_y,-m_x,-m_z	-1.96000
9	0.34820	0.35990	0.08920	m_y,-m_x+m_y,-m_z	-1.96000
10	0.98830	0.34820	0.58920	m_x,m_y,-m_z	-1.96000
11	0.64010	0.98830	0.08920	m_x-m_y,m_x,-m_z	-1.96000
12	0.65180	0.64010	0.58920	-m_y,m_x-m_y,-m_z	-1.96000

Non-magnetic atoms:

Set of atoms in the unit cell related by symmetry with the atom Pb1:

Atom	x	y	z
1	0.00000	0.00000	0.00000
2	0.00000	0.00000	0.50000

Set of atoms in the unit cell related by symmetry with the atom Te1:

Set of atoms in the unit cell related by symmetry with the atom O1:

Set of atoms in the unit cell related by symmetry with the atom O2:

Set of atoms in the unit cell related by symmetry with the atom O3:

Set of atoms in the unit cell related by symmetry with the atom O4:

[Hide]

Label	Atom type	x	y	z	Multiplicity	Symmetry constraints on M	M_x	M_y	M_z	\|M\|
Mn1	Mn	0.333333	0.666667	0.0626(5)	4	0,0,m_z	0.0	0.0	-4.71(3)	4.71
Ni1	Ni	0.9883(1)	0.3482(1)	0.9108(1)	12	m_x,m_y,m_z	0.0	0.0	1.96(2)	1.96

label	dim. small irrep	dim. full irrep	action	number of modes
mGM1-	1	1	primary	4
